Honda CB300FA - Left Shroud

Removing & Installing Body Components liJ> Left Shroud

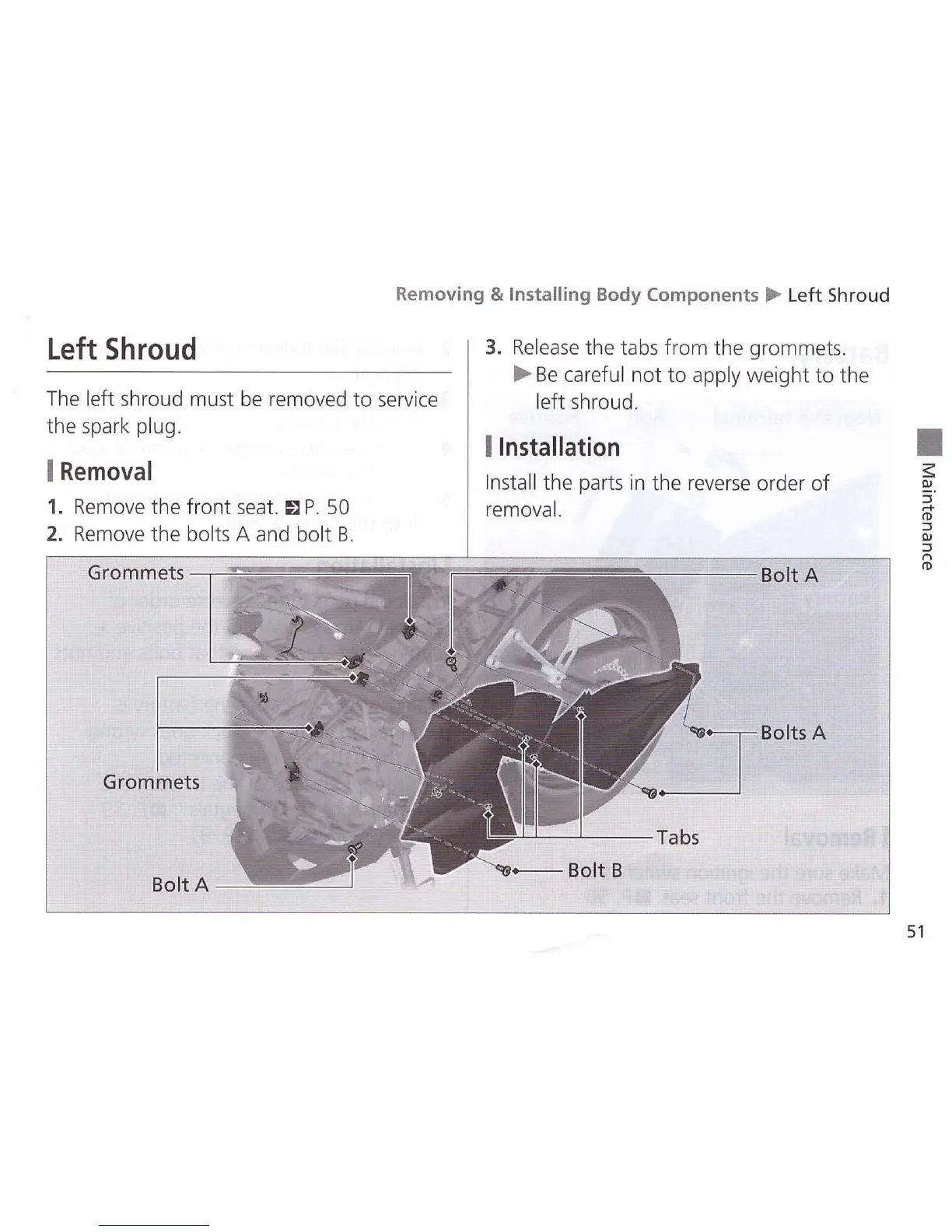

Left Shroud
The left shroud must be removed to service
the spark
plug.
I Removal
1. Remove the front seat ~ P. 50
2. Remove the bolts A and bolt B.
Grommets
3. Release the tabs from the grommets.
~ Be careful not to apply weight to the
left shroud.
I Installation
Install the parts in the reverse order of
removal.
•
~
OJ
::i
.-+
ro
::i
OJ
::i
("\
ro
51
