RIGHT
HANDLEBAR
CONTROLS
Engine Stop
Switch
The engine stop
switch
(1)
is next to
the
throttle
grip.
When
the switch
is in the
RUN
position,
the engine
will
operate.
When
the
switch is
in the OFF
position,
the engine
will not operate.
This switch
is
intended
primarily
as a
safety or emergen-
cy switch
and should
normally
remain
in
the RUN
position.
Headlight
Switch
(ExcePt
U tYPe)
The headlisht
switch
(2)
has three
postions;
"H",
"P"
and
"OFF"
marked by
a dot
to the right of
"P".
H:
Headlight, taillight,
position
light and
meter
lights on.
P: Position
light, taillight
and
meter lights
on.
OFF
(dot):
Headlight,
taillight,
position
light and meter
lights off .
2A
Starter
Button
The starter
button
(3)
is below the
head
light switch
(2).
When
the
starter button
is
pressed,
the
starter
motor cranks the
engine.
If the
engine stop switch
is in the OFF
position,
the starter
motor will
not operate.
See
page
36
for the
starting
procedure.

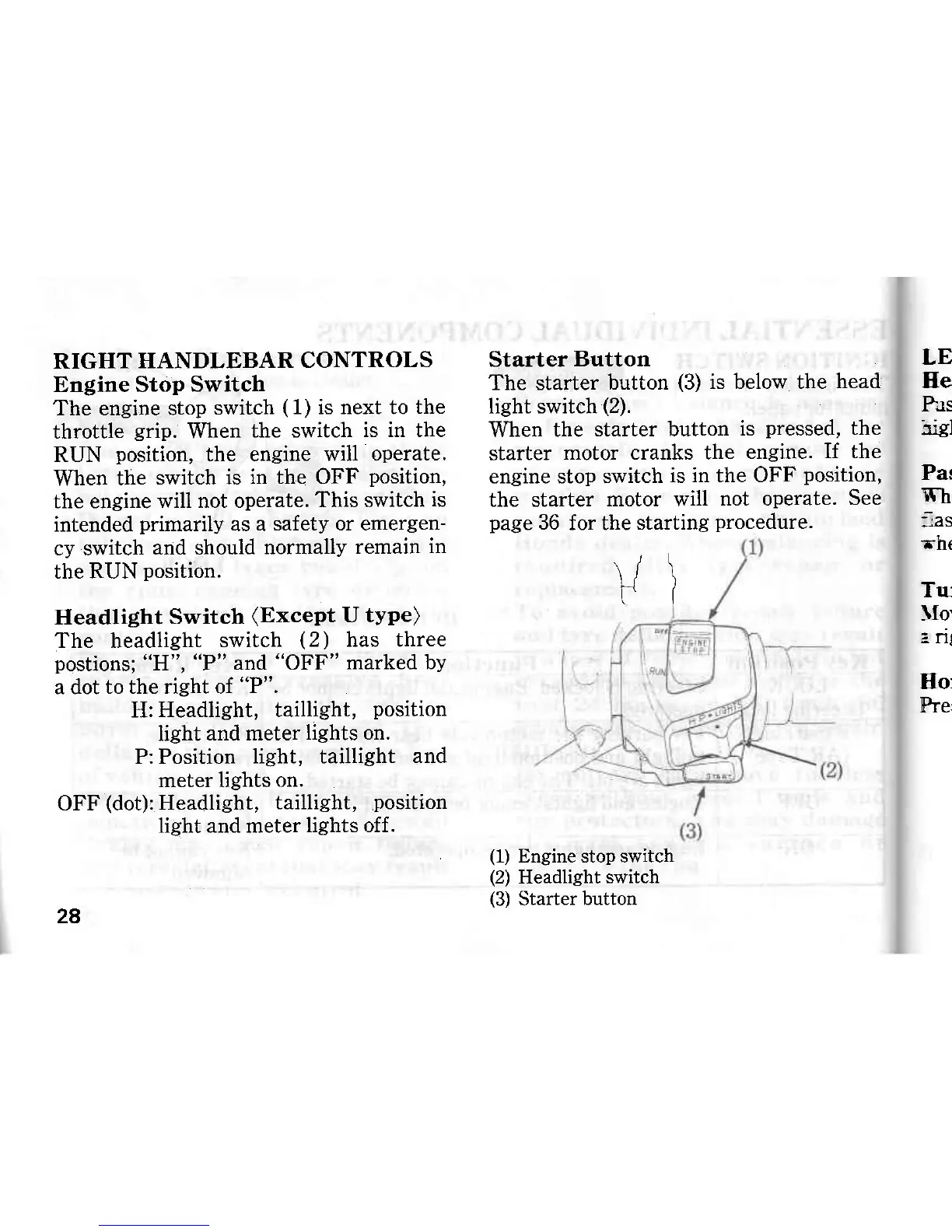

Engine stop switch
