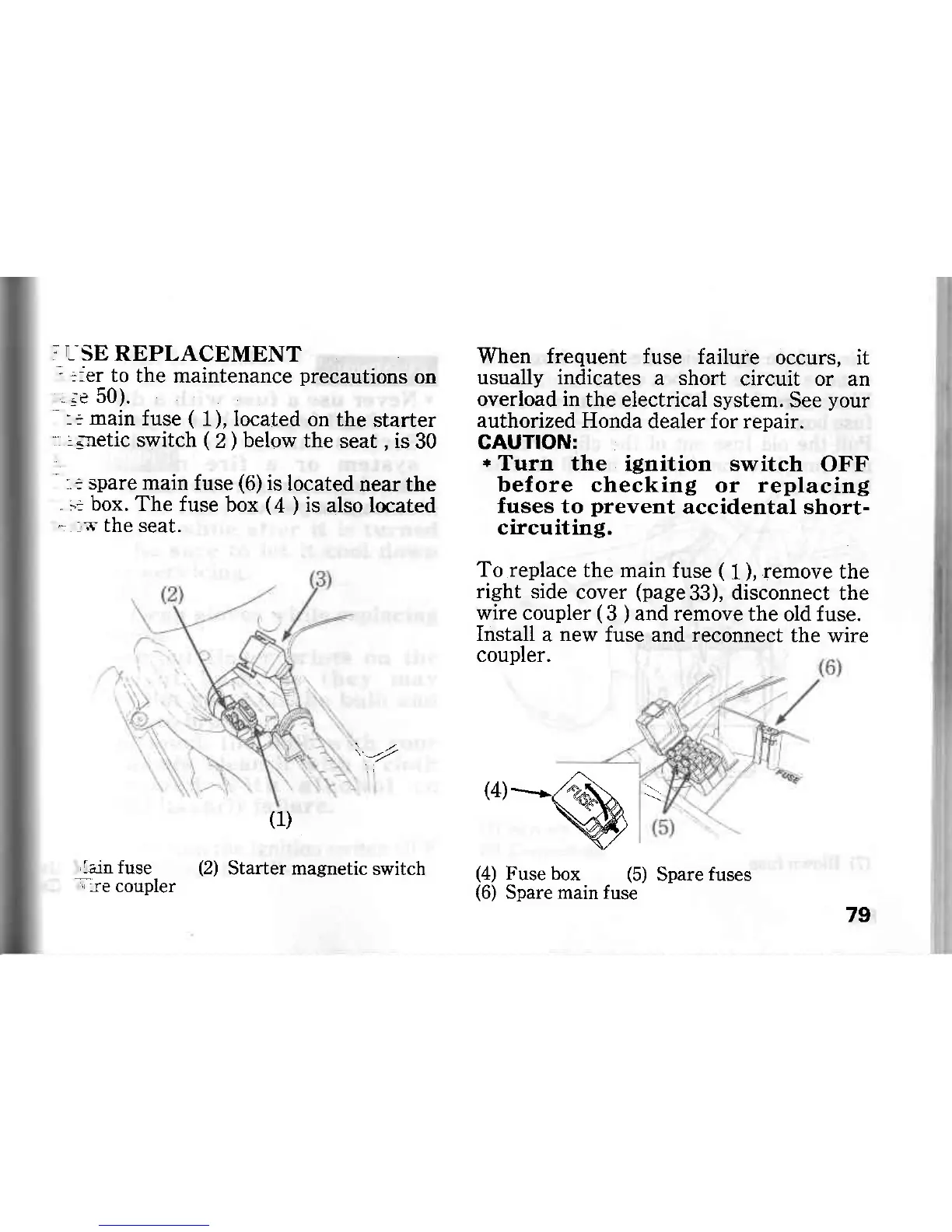

Honda CB750F2 - Fuse Replacement

;
T-
SE
REPLACEMENT
:
.-er
to
the maintenance
precautions
on
-;e 50).
-
:= main
fuse
(
1), located
on the
starter
: ..retic
switch
(
2
)
below
the seat
,
is
30
r:
spare main
fuse
(6)
is
located
near the
;. box.
The fuse
box
(4
)
is
also located
-
..i-
the seat.
(1)
,lajn
fuse
(2)
Starter magrretic
switch
"
re
coupler
When frequent
fuse failure
occurs, it
usually indicates
a short
circuit
or an
overload in
the electrical
system. See
your
authorized Honda
dealer for repair.
GAUTION:
*
Turn
the ignition switch
OFF
before checking
or replacing
fuses
to
prevent
accidental short-
circuiting.
To replace
the main
fuse
(
1),
remove
the
right
side cover
(page33),
disconnect
the
wire coupler
(
3
)
and remove
the old fuse.
Install
a
new
fuse and reconnect
the wire
coupler.
"
r.t/
':
*,-@
(4)
Fuse box
(5)
Spare
fuses
(6)
Spare
main
fuse
79
