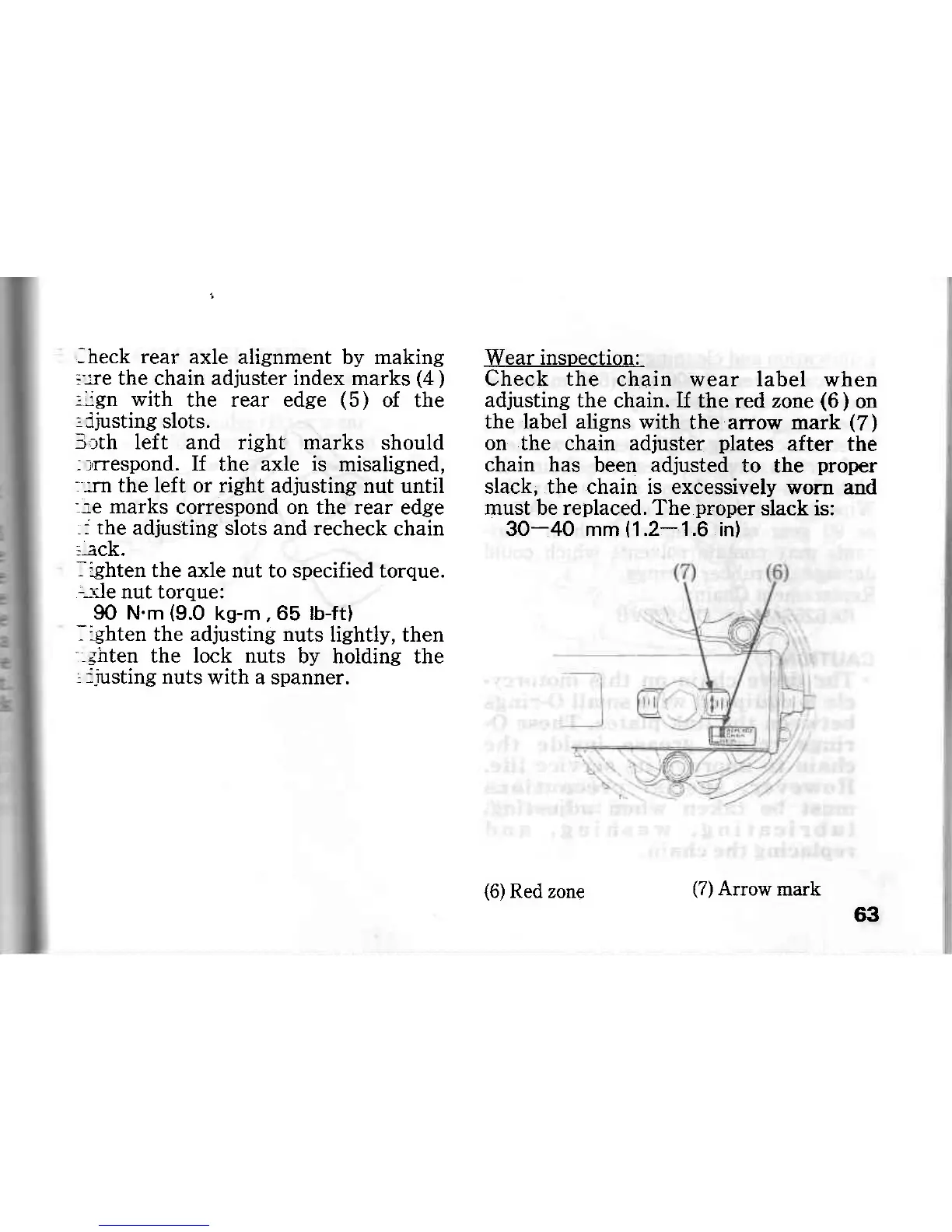

Honda CB750F2 - Drive Chain Wear Inspection

-heck rear
axle alignment by making
:':re
the chain adjuster index marks
(4
)
{gn with
the rear edge
(5)
of the
.ijusting
slots.
l,-'th
left and right marks
should
-.;,rrespond.
If
the axle
is
misaligned,
.:rn
the left
or
right
adjusting nut until
re
marks
correspond on the rear
edge
.: the
adjusting slots and recheck
chain
- ^1-
:ILA.
-
ghten
the axle nut to specified torque.
--rle
nut torque:
9O N'm
(9.0
kg-m
,65
lb-ftl
-
ghten
the adjusting nuts
lightly, then
'-3hten
the lock nuts
by holding the
.:-iusting
nuts
with a spanner.
Wear
inspection:
Check the
chain wear label
when
adjusting the
chain.
If
the red zone
(6)
on
the label aligns with
the arrow mark
(7)
on
the chain adjuster
plates
after the
chain has
been adjusted
to the
proper
slack, the chain is excessively
worn and
must be replaced. The
proper
slack is:
3O-4O mm
(1.2-1.6
in)
(6)
Red zone
(7)
Arrow mark
63
