Honda EB5000X - Handle Installation

ASSEMBLY
13

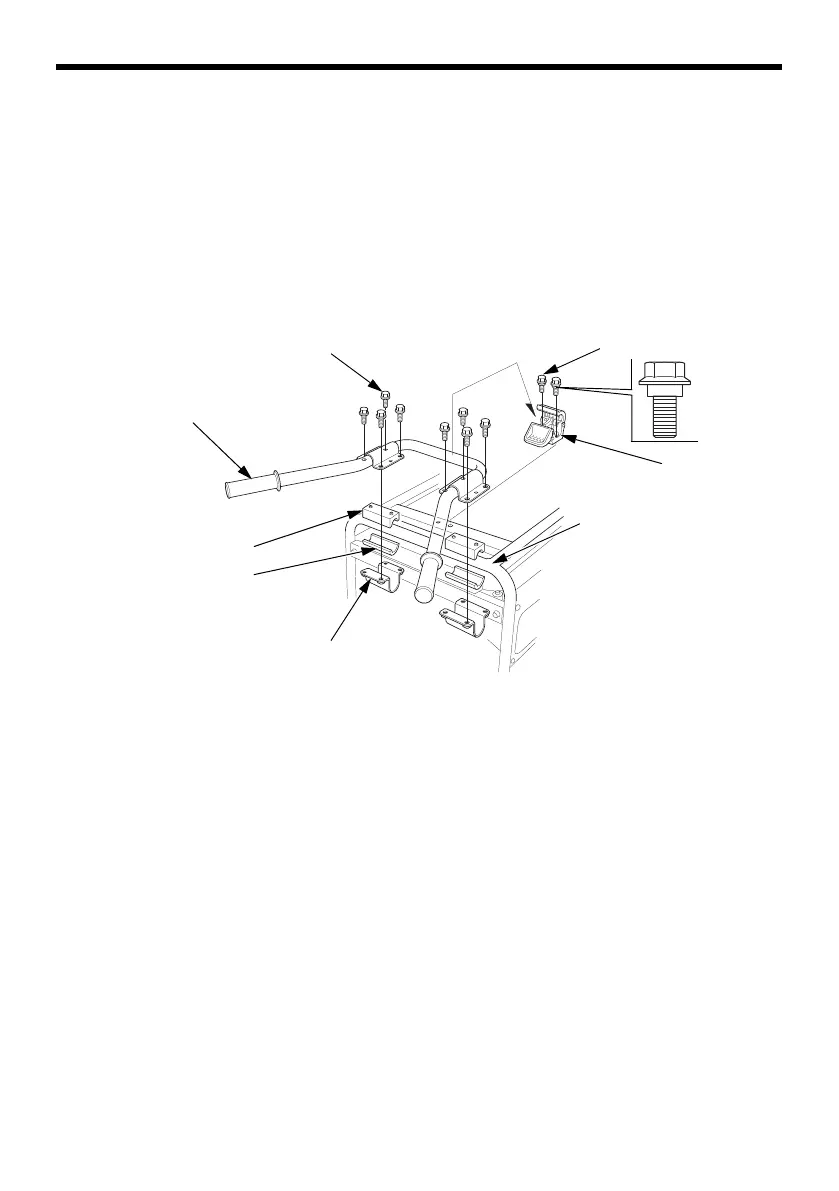

Handle Installation
1. Install the handle holder assembly on the generator upper frame using the
8×18 mm flange bolts.
2. Install the handle assembly on the generator upper frame pipe using the
8×16 mm flange bolts, handle bush A, handle bush B, and handle lower
bracket.
Torque: 19.5 lbf·ft (26.5 N·m, 2.7 kgf·m)
Operation must be checked after attaching the handle.
• Check that the handle can be folded smoothly.
• Check that the handle does not hang down by its own weight.
8×16 mm FLANGE BOLT (8)
8×18 mm FLANGE BOLT (2)
HANDLE HOLDER ASSEMBLY
FRAME PIPE
HANDLE LOWER BRACKET (2)
HANDLE BUSH B (2)
HANDLE BUSH A (2)
HANDLE ASSEMBLY
