CONTROLS & FEATURES
37

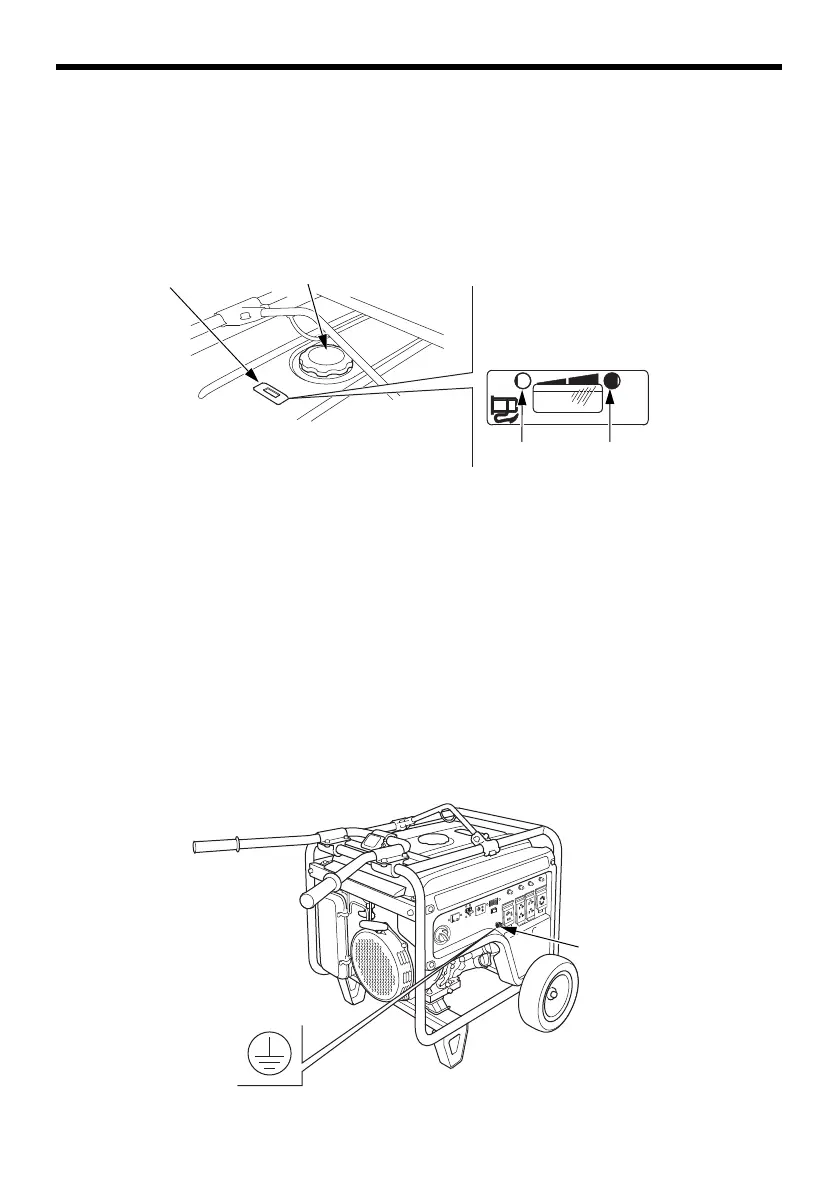

Fuel Gauge
The fuel gauge is a mechanical device that measures the fuel level in the tank.
The red indicator in the window will reference the level in relation to full or
empty. To provide increased operating time, start with a full tank before
beginning operation. Check the fuel level with the generator on a level surface.
Always refuel with the engine OFF and cool.
Ground Terminal
The generator ground terminal is connected to the frame of the generator, the
metal non-current-carrying parts of the generator, and the ground terminals of
each receptacle.
Before using the ground terminal, consult a qualified electrician, electrical
inspector, or local agency having jurisdiction for local codes or ordinances that
apply to the intended use of the generator.
NEUTRAL BONDED TO FRAME:
There is a permanent conductor between the generator (stator winding) and
the frame.
FUEL GAUGE FUEL TANK CAP
FULLEMPTY
31Z238200.book 37 ページ ２０２０年２月２０日 木曜日 午前１０時５７分
