ASSEMBLY
16

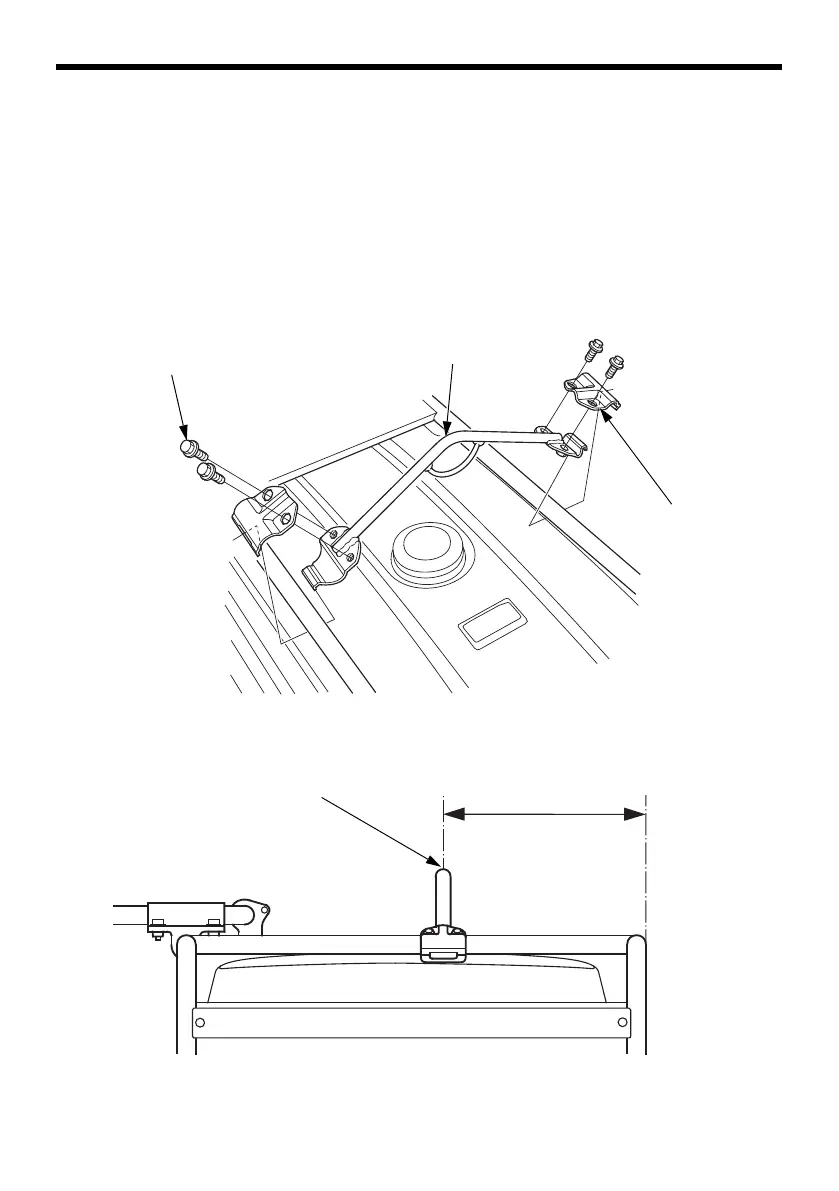

Hanger Kit Installation
1. Position the hanger at the generator’s balance point as shown below.
2. Fit the end tabs of the hanger through the bracket slots, and bolt the brackets
to the hanger and tighten securely.
Torque: 19.5 lbf·ft (26.5 N·m, 2.7 kgf·m)
8×16 mm FLANGE BOLT (4)
HANGER
HANGER BRACKET (2)
11 in (280 mm)
HANGER
GENERATOR
SIDE
