Honda EB5000X - Ground Fault Circuit Interrupter (GFCI)

CONTROLS & FEATURES
32
Ground Fault Circuit Interrupter (GFCI)

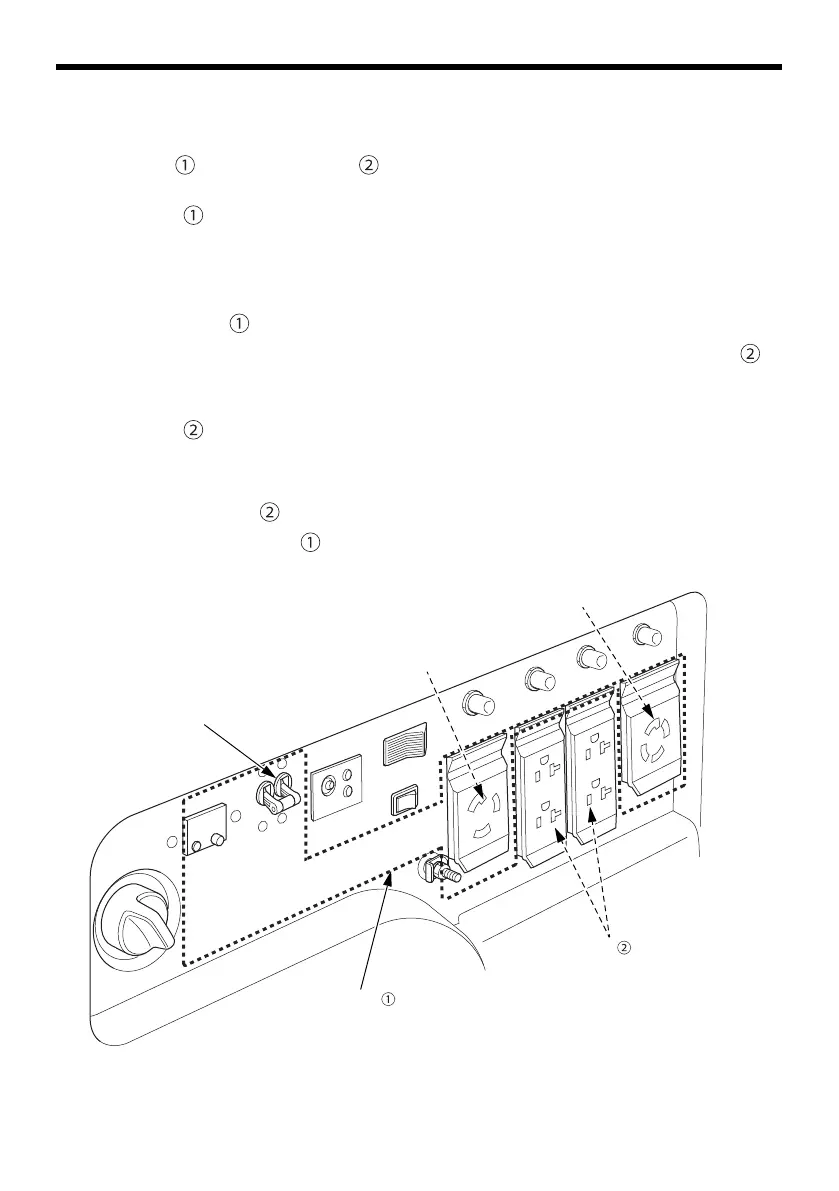

This generator has two types of Ground Fault Circuit Interrupter (GFCI) systems,
GFCI system and GFCI system .
GFCI SYSTEM
(120V-30A, 120V/240V-30A RECEPTACLES)
If there is a ground-fault current from either A or B receptacle, it will shut off the
power to receptacles A and B.
If this GFCI system activates, the AC circuit breaker will be switched to OFF
position and it will shut off power to all receptacles, including GFCI system
120 V 20 A DUPLEX RECEPTACLES.
GFCI SYSTEM
(120V-20A DUPLEX RECEPTACLE)
If there is a ground-fault current from either 120 V 20 A DUPLEX RECEPTACLE,
then the GFCI System will shut off the power to that 120 V 20 A DUPLEX
RECEPTACLE. GFCI system will not be affected.
AC CIRCUIT BREAKER
GFCI SYSTEM
(120V-20A DUPLEX RECEPTACLES)
RECEPTACLE A
(120 V 30 A)
GFCI SYSTEM
(120 V-30 A, 120 V/240 V-30 A RECEPTACLES)
RECEPTACLE B
120/240 V 30 A
