Honda EB5000X - AC Receptacle Selection; Power Producing Circuits

OPERATION
58
AC Receptacle Selection

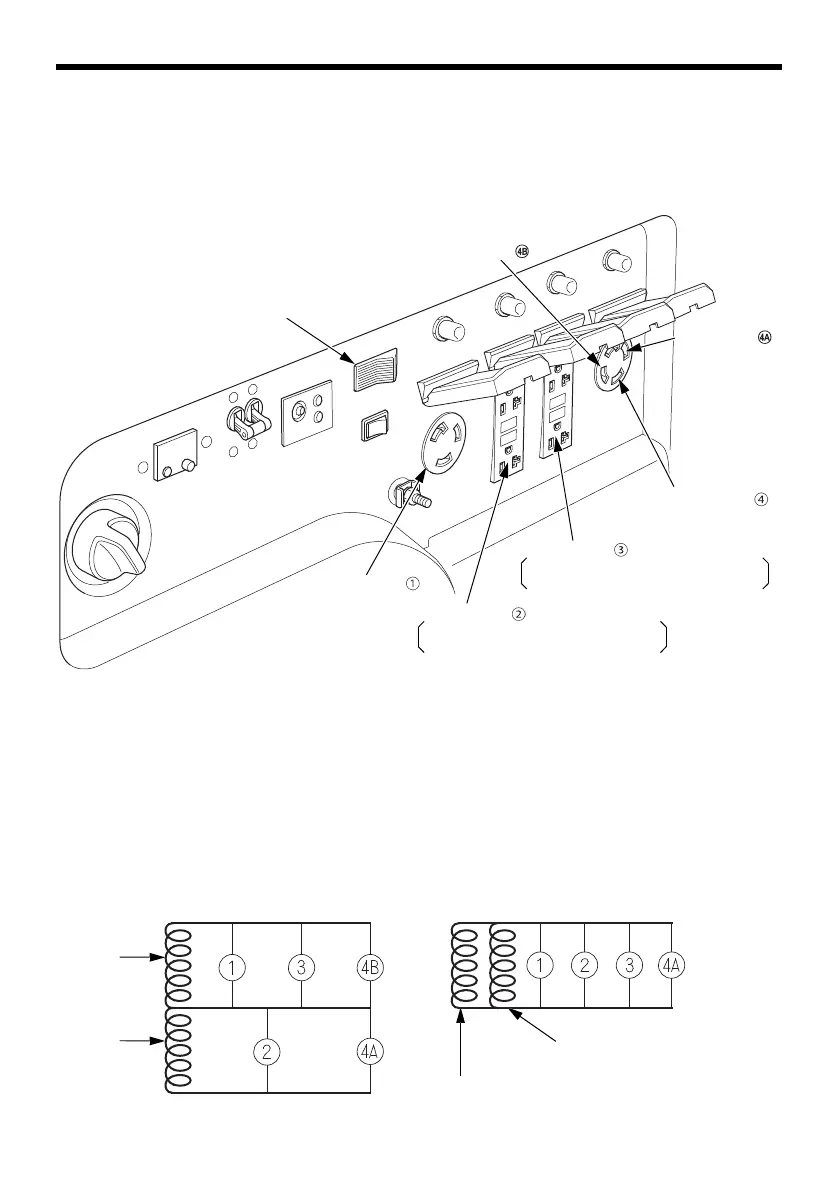

The control panel, shown below, has a voltage selector switch and four
receptacles. Receptacle 4, the 240-volt receptacle, has two powered terminals,
4A and 4B.
Power Producing Circuits
This generator is equipped with two power generating circuits.
When the voltage selector switch is in the 120V/240V position, each of the two
power producing circuits supplies power to specific receptacles.
When the voltage selector switch is in the 120V ONLY position, the power
producing circuits operate in parallel, sharing the total load connected to
terminal 4A and receptacles 1, 2, and 3.
VOLTAGE SELECTOR SWITCH
RECEPTACLE
GFCI RECEPTACLES
(120 V 20 A DUPLEX RECEPTACLE)
RECEPTACLE
GFCI RECEPTACLES
(120 V 20 A DUPLEX RECEPTACLE)
TERMINAL
RECEPTACLE
TERMINAL
RECEPTACLE
POWER CIRCUIT A
120 V/240 V 120 V ONLY
POWER
CIRCUIT B
POWER
CIRCUIT A
POWER CIRCUIT B
