ASSEMBLY
15

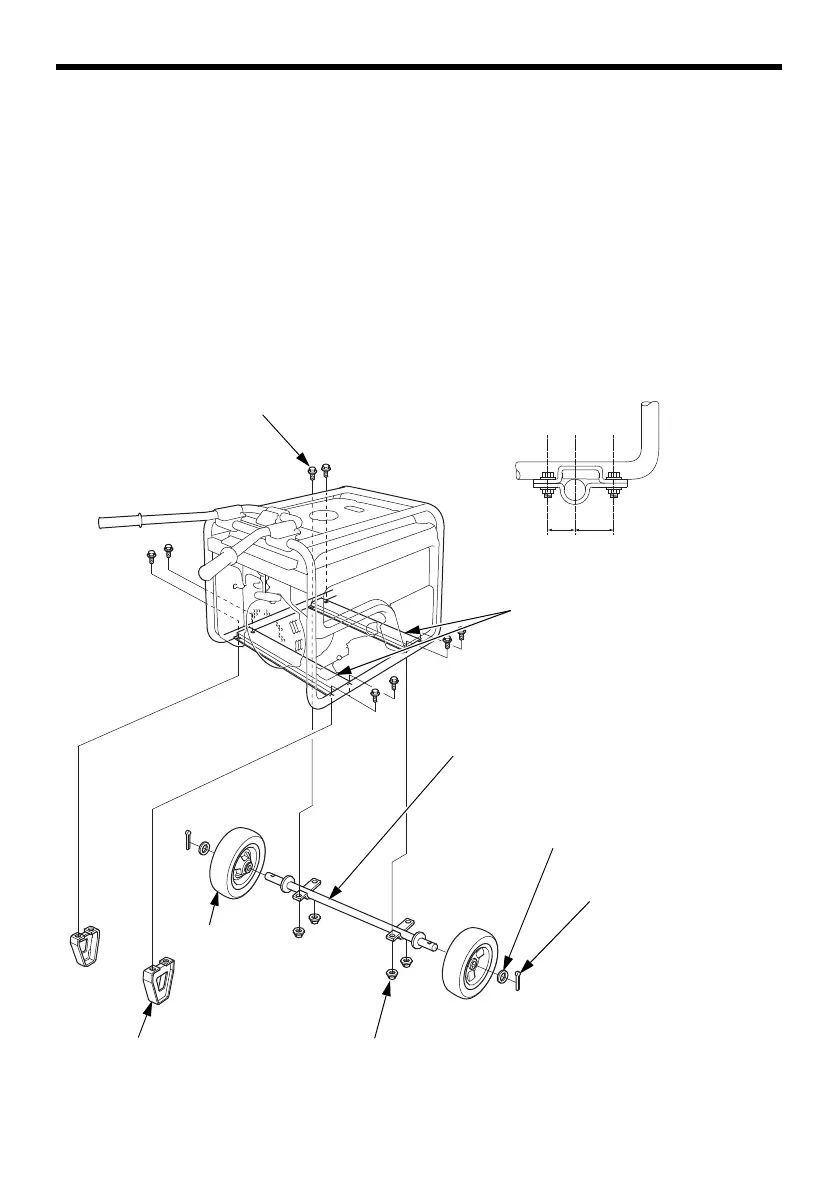

Wheel Kit Installation
1. Install the two stands on the under frame using four 8×16 mm flange bolts.
2. Install the two wheels on the axle shaft using the washers and split pins. After
installing the split pins, bend the pins to ensure that the wheels are secured
to the axle.
3. Install the axle assembly on the generator using four 8×16 mm flange bolts
and 8 mm flange nuts.
Torque: 19.5 lbf·ft (26.5 N·m, 2.7 kgf·m)
8×16 mm FLANGE BOLT (8)
SHORTER
GENERATOR
SIDE
UNDER FRAME
AXLE SHAFT
20 mm
PLAIN WASHER (2)
4×28 mm
SPLIT PIN (2)
WHEEL (2)
STAND (2)
8 mm FLANGE NUT (4)
