CONTROLS & FEATURES
31
AC Circuit Breaker
The AC circuit breaker will automatically switch OFF in the following cases.
• If there is a short circuit or a significant overload at the receptacles.
• If there is a ground-fault current from either receptacles A or B.
The AC circuit breaker may be used to switch the generator power ON or OFF.

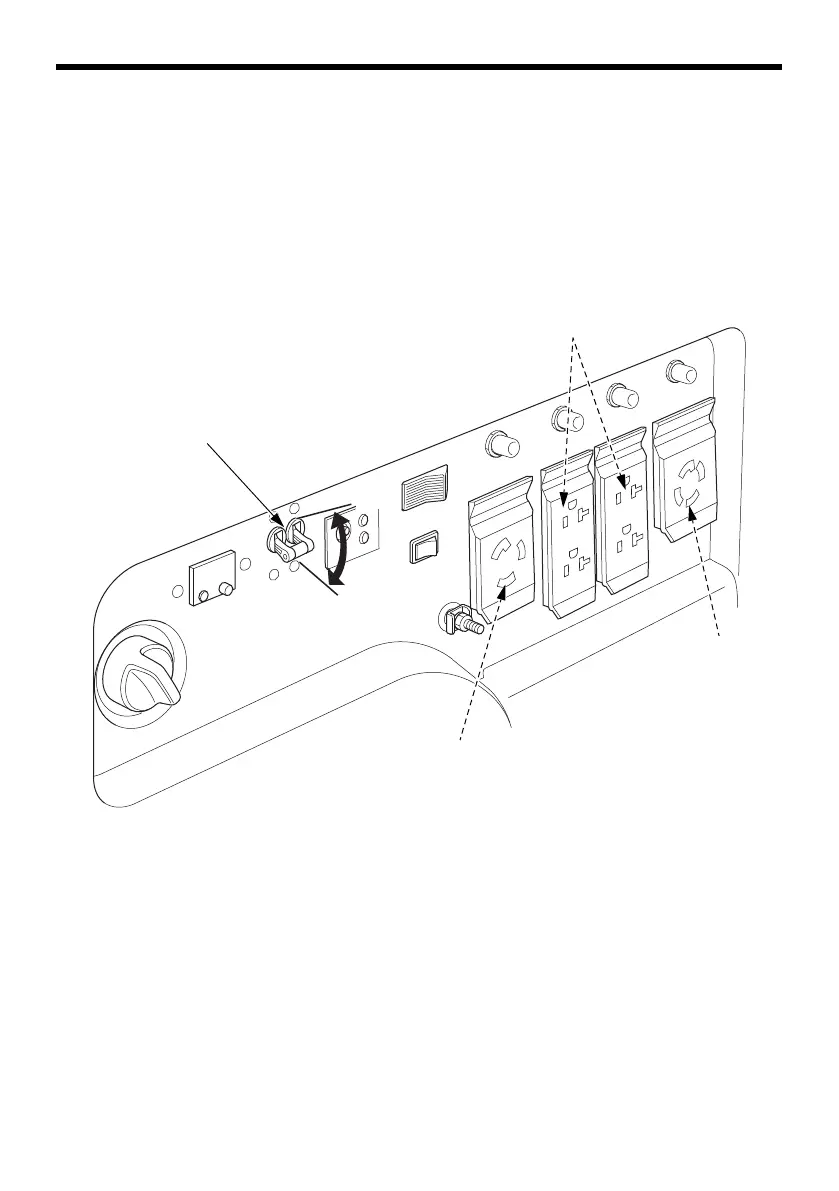

RECEPTACLE A
(120 V 30 A)
RECEPTACLE B
(120/240 V 30 A)
AC CIRCUIT BREAKER
RECEPTACLE C
(120 V 20 A DUPLEX RECEPTACLES)
OFF
ON
