Honeywell Home RTH9585WF Smart Series User Manual

69-2715EF—07 8
Installing your thermostat

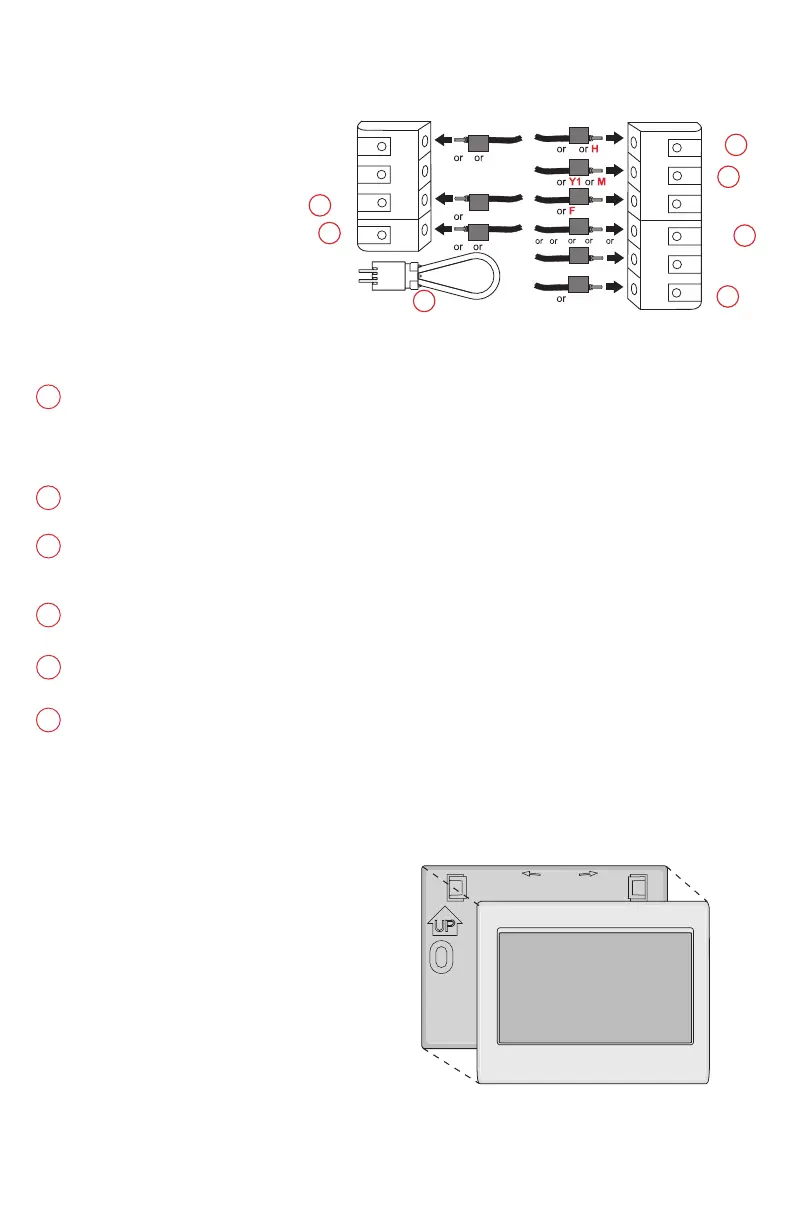

Alternate wiring (Heat Pump System)
Use this if your wire labels
don’t match the terminal labels.
Note: You must have a C wire
or equivalent. See page 5.
If you have both an R and Rc wire, unplug the jumper loop by pulling on the wire
loop.
If your old thermostat had both R and RH wires, connect the R wire to the Rc
terminal, the RH wire to the R terminal, and unplug the jumper loop.
If your old thermostat had both V and VR wires, check
honeywellhome.com/wifi-thermostat for help.
If your old thermostat had separate O and B wires, and is controlling a single zone
heat pump system, attach the B wire to the C. If there is more than one thermostat
controlling the system, call Resideo zoning at 8008288367 for wiring assistance.
If your old thermostat had separate Y1, W1, and W2 wires, check
honeywellhome.com/wifi-thermostat for help.
If the old thermostat has separate wires on Aux and E, use a wire nut to attach
both wires to a separate wire. Slide this third wire into the W2Aux/E terminal.
This is the system monitor. If the monitor finds a problem, you will see an orange
alert button on the thermostat home screen.
Alternate wiring key (Heat Pump System)
2
1
4
6
3
5
7 Attach thermostat to wallplate.
Align the thermostat with the
wallplate and then snap into
place.
Thermostat
Wallplate
LEVEL
HERE
M34498A
MCR36752
C
R
O
Y
G
2
C
K
Rc
R
W-
O/B
Y
G
W2-
Aux/E
Y2
L
3
4
5
AUX
XX2
Y2
1
B
6
X
B
Rc
R
V
VR
1
L
F
WW1
W2

Honeywell Home RTH9585WF Smart Series Specifications

General

Model	RTH9585WF
Display	Color Touchscreen
Wi-Fi Connectivity	Yes
Energy Star Certified	Yes
Remote Access	Yes, via Honeywell Home app
Smart Alerts	Yes
Stages	Up to 3 Heat/2 Cool
Geofencing	Yes
Warranty	1-year limited warranty
Compatibility	Works with most heating and cooling systems
Programmable	7-day programmable
Power Method	C-wire required
Dimensions	4.5 x 3.5 x 0.88 inches
