Honeywell Home RTH9585WF Smart Series User Manual

69-2715EF—07 4
Installing your thermostat

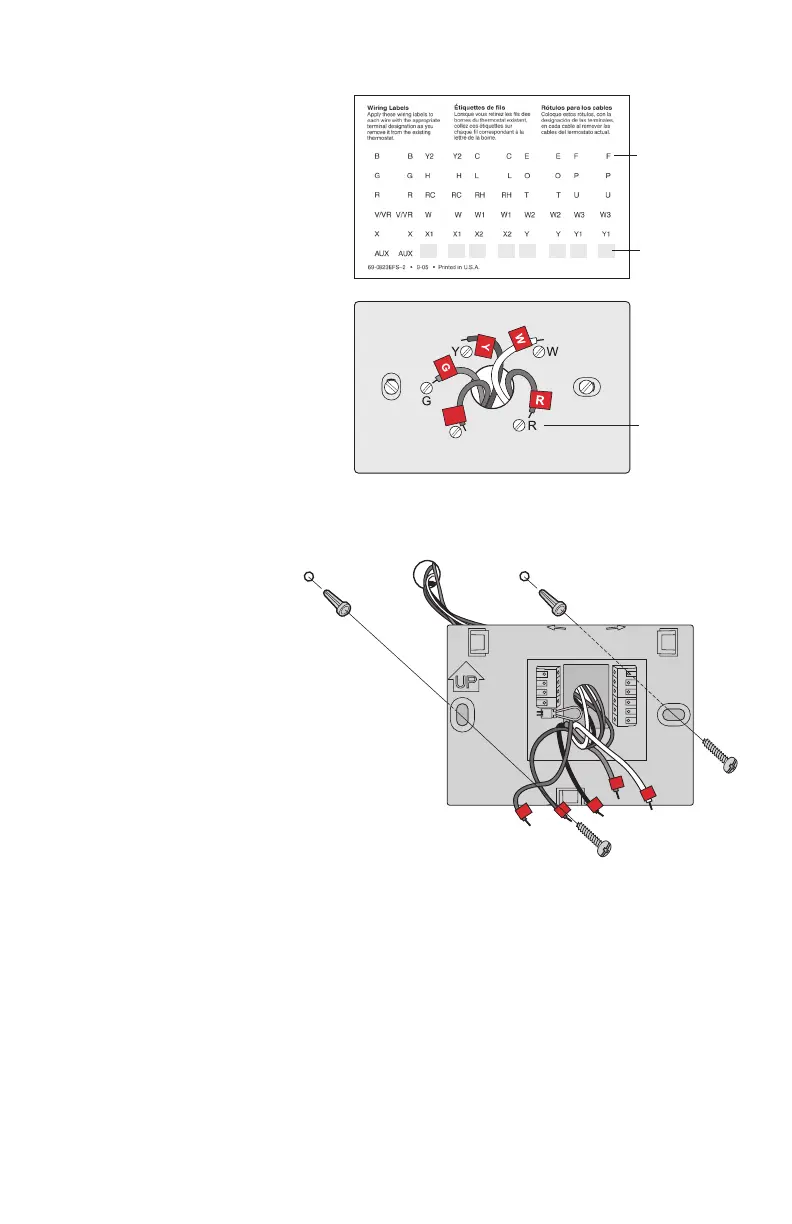

3 Label the wires.
Use the supplied sticky tags
to label each wire as you
disconnect it. Label wires
according to the old thermostat
terminal designations, not by
wire color.
Note: If no tag matches a
terminal designation, write the
appropriate letter on a blank
sticky tag.
4 Remove wallplate.
Remove the old wallplate from
the wall after all wires have been
labeled and disconnected.
Blank tags
Sticky tag
Terminal
designation
C
C
MCR31537
Note: Wrap the wires around
a pencil to prevent them from
falling back into the wall.
LEVEL
HERE
R
Y
C
W
G
MCR34499
C
K
Rc
R
W-
O/B
Y
G
W2-
Aux/E
Y2
L
5 Mount wallplate for
thermostat.
Mount your new wallplate
using screws and
anchors included with the
thermostat.
If necessary:
Drill 3/16-in holes for
drywall.
Drill 7/32-in holes for
plaster.
Note: You may be able to use
your existing wall anchors.
Hold the wallplate up to the
existing anchors to check for
alignment.
Wallplate

Honeywell Home RTH9585WF Smart Series Specifications

General

Model	RTH9585WF
Display	Color Touchscreen
Wi-Fi Connectivity	Yes
Energy Star Certified	Yes
Remote Access	Yes, via Honeywell Home app
Smart Alerts	Yes
Stages	Up to 3 Heat/2 Cool
Geofencing	Yes
Warranty	1-year limited warranty
Compatibility	Works with most heating and cooling systems
Programmable	7-day programmable
Power Method	C-wire required
Dimensions	4.5 x 3.5 x 0.88 inches
