Installation Steps (continued)
5
Installing the condensation drain line
Insert the threaded drain adapter through the bottom of
the unit and hand tighten the plastic nut supplied with the
drain kit.
Use a wrench to tighten the nut another half turn to
ensure a complete seal.

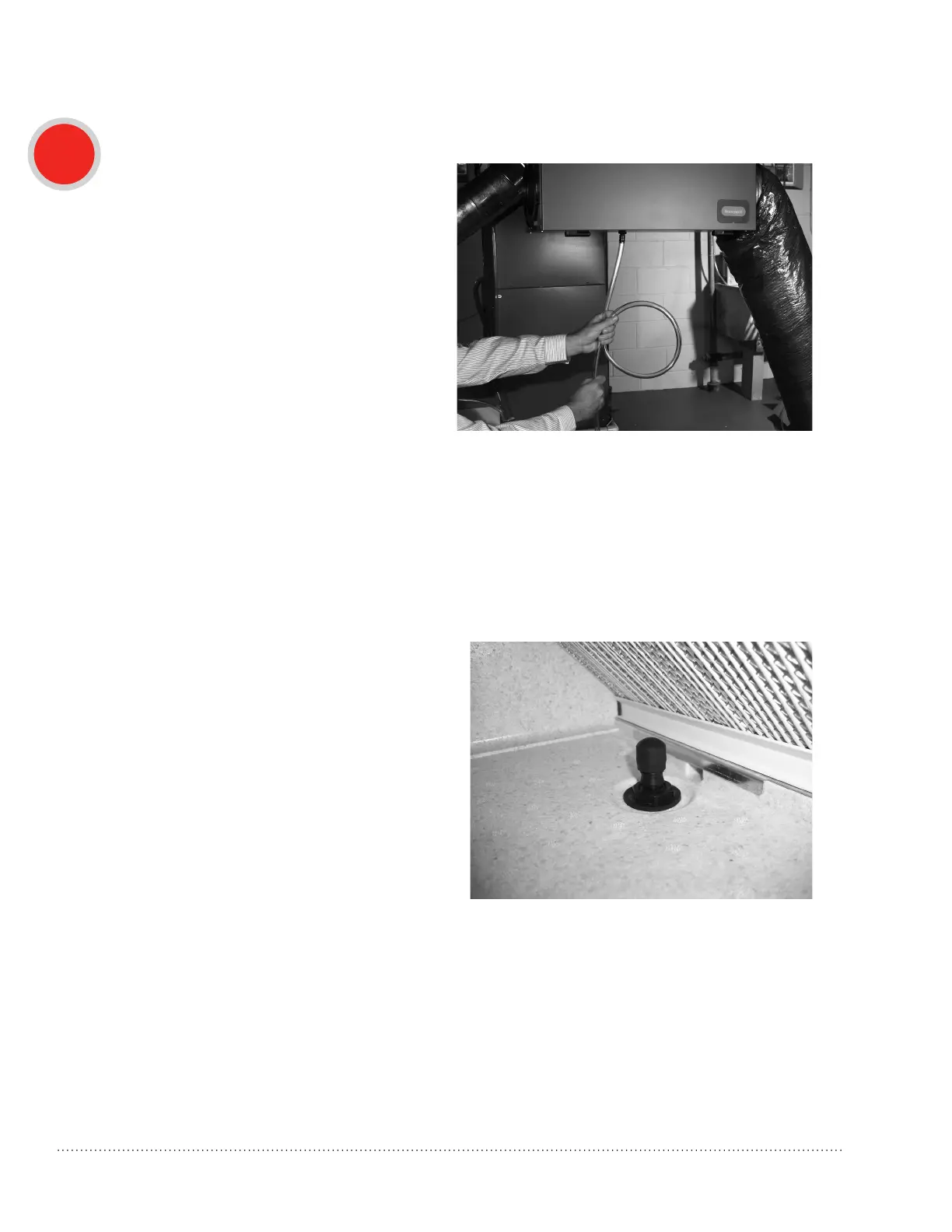

Install the condensate tubing by pushing the clear plastic
tubing over the drain adapter.
Make a condensate trap by looping the clear plastic
tubing. This loop will prevent foul odors from entering the
unit.
Use a condensate pump if you don’t have access to
the floor drain.
Drainless Application
NOTE:IfinstallinganERVunit(VNT5150E1000,VNT5200E1000,VNT5070E1000)inaregionwherethe
outdoor temperature does not drop below freezing, the condensate drain line does not need to be
installed and the unit may be installed as a drainless application.
1. Insert the threaded drain adapter through the bottom
of the ERV with the drain connection inside of the unit
 asshowninthegure.
2. Fit the rubber washer over the drain adapter and then
attach the plastic nut.
3. Hand tighten the plastic nut supplied with the drain kit.
4. Use a wrench to tighten the nut another half turn to
ensure a complete seal.
5. Attach the drain cap to the drain adapter inside the
unit.
