7 - 22

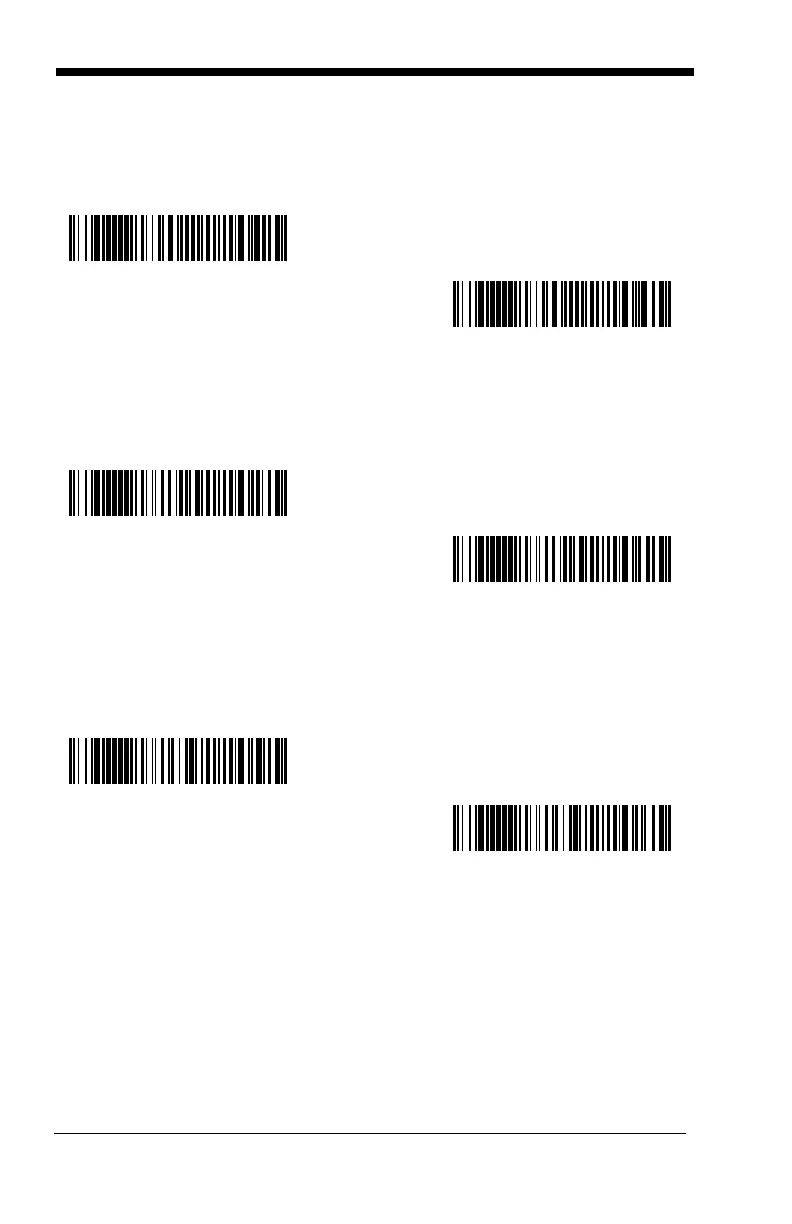

UPC-E0 Expand

UPC-E Expand expands the UPC-E code to the 12 digit, UPC-A format.

Default = Off.

UPC-E0 Addenda Required

When Required is scanned, the image scanner will only read UPC-E bar codes

that have addenda.

Default = Not Required.

UPC-E0 Addenda Separator

When this feature is On, there is a space between the data from the bar code

and the data from the addenda. When turned Off, there is no space.

Default = On.

* Off

* Not Required

Required

Off

* On

Default Chapter11
- Table of Contents11
Chapter 1 - Getting Started21
- About this Manual21
- Unpacking the System21
- Image Scanner Models21
- Cordless System: Main Components22
- About the Battery22
- Proper Disposal of the Battery23
- Connecting the Base23
- Linking Image Scanner to Base27
- Communication between the Cordless System and the Host28
- Reading Techniques29
Chapter 2 - Programming the Interface31
- Introduction31
- Programming the Interface - Plug and Play31
- Keyboard Wedge Connection31
- IBM 4683 Ports 5B, 9B, and 17 Interface33
- IBM Surepos34
- Serial Wedge36
- Programming the Interface - Terminal ID Method36
- Supported Terminals38
- Keyboard Country40
- Keyboard Style42
- Keyboard Function Relationships43
- Keyboard Modifiers43
- Wand Emulation50
Chapter 3 - Basic System Operation55
- Cordless Base55
- RF (Radio Frequency) Module Operation55
- Cordless Image Scanner55
- System Conditions56
- Base Charge Mode57
- Beeper and LED Sequences and Meaning58
  - Image Scanner LED Sequences and Meaning58
  - 2020 LED Sequences and Meaning58
- Image Scanner Modes59
  - Unlinking the Image Scanner59
- Single Image Scanner Operation59
- Multiple Image Scanner Operation61
- Image Scanner Name61
- Image Scanner Report63
- Application Work Groups63
  - Application Work Group Selection64
- Resetting the Standard Product Default Settings: All Application Work Groups65
- Resetting the Standard Product Default Settings: Current Application Work Group65
- Using the Image Scanner with Bluetooth Devices66
- Out-Of-Range Alarm74
  - Duration74
  - Alarm Sound Type75
- Data Accumulation Mode76
  - Batch Mode Transmit Delay77
Chapter 4 - Output79
- Good Read Indicators79
  - Beeper - Good Read79
  - Beeper Volume - Good Read79
  - Beeper Pitch - Good Read80
  - Beeper Duration - Good Read80
  - LED - Good Read80
  - Number of Beeps - Good Read80
- Good Read Delay81
- User-Specified Good Read Delay81
- Serial Trigger Modes82
  - Manual/Serial Trigger, Low Power82
- Scan Stand Mode84
  - Scan Stand Symbol84
- Presentation Mode85
  - Presentation LED Behavior after Decode85
  - Presentation Sensitivity86
- Streaming Presentation™ Mode86
- Image Snap and Ship87
- Hands Free Time-Out87
- Reread Delay87
- User-Specified Reread Delay88
- LED Power Level88
- Illumination Lights89
- Aimer Delay90
  - User-Specified Aimer Delay90
- Aimer Mode90
- Centering91
- Decode Search Mode92
- Preferred Symbology93
- Symbology Chart94
- Output Sequence Overview95
  - Output Sequence Editor97
  - Require Output Sequence97
- Multiple Symbols98
- No Read99
- Print Weight99
  - Video Reverse100
  - Working Orientation100
Chapter 5 - Data Editing103
- Prefix/Suffix Overview103
- Intercharacter, Interfunction, and Intermessage Delays107
Chapter 6 - Data Formatting111
- Data Format Editor Introduction111
Chapter 7 - Symbologies118
- All Symbologies118
- Message Length Description118
- Codabar119
  - Codabar Concatenation120
- Code 32 Pharmaceutical (PARAF)123
- Full ASCII124
- Code 39 Code Page124
- Interleaved 2 of 5125
- Code 93127
  - Code 93 Code Page127
- Straight 2 of 5 Industrial (Three-Bar Start/Stop)128
- Straight 2 of 5 IATA (Two-Bar Start/Stop)129
- Matrix 2 of 5130
- Code 11131
- Code 128131
  - ISBT 128 Concatenation132
  - Code 128 Code Page133
- Telepen133
- Upc-A134
- Upc-A/Ean-13137
- With Extended Coupon Code137
- Upc-E0137
- Upc-E1140
- Ean/Jan-13140
  - ISBN Translate142
- Ean/Jan-8142
- Msi144
- Plessey Code145
- GS1 Databar Omnidirectional146
- GS1 Databar Limited146
- GS1 Databar Expanded146
- Posicode147
- Codablock F148
- Code 16K149
- Code 49150
- Pdf417152
- Micropdf417152
- GS1 Composite Codes153
  - UPC/EAN Version154
- GS1 Emulation154
  - TCIF Linked Code 39 (TLC39)155
  - Postal Codes155
  - QR Code162
  - Data Matrix163
  - Maxicode164
  - Aztec Code165
  - Chinese Sensible (Han Xin) Code166
Chapter 8 - Imaging Commands167
- Single-Use Basis167
- Command Syntax167
- Image Snap - IMGSNP168
  - IMGSNP Modifiers168
- Image Ship - IMGSHP171
  - IMGSHP Modifiers172
  - Image Size Compatibility181
- Intelligent Signature Capture - IMGBOX181
  - IMGBOX Modifiers183
- RF Default Imaging Device186
Chapter 9 - OCR Programming187
- OCR Fonts187
- Ocr187
- U.S. Currency Font188
- MICR E13 B Font188
- SEMI Font189
- OCR Templates189
  - Creating an OCR Template189
  - Stringing Together Multiple Formats (Creating "Or" Statements)191
- OCR User-Defined Variables192
  - Reading Multi-Row OCR193
- OCR Check Character193
  - OCR Modulo 10 Check Character194
  - OCR Modulo 36 Check Character194
- OCR User-Defined Check Character194
  - Weighting Options196
- OCR ISBN Application Example197
- OCR Template Codes199
Chapter 10 - Interface Keys201
- Keyboard Function Relationships201
- Supported Interface Keys203
Chapter 11 - Utilities207
- To Add a Test Code I.D. Prefix to All Symbologies207
- Show Decoder Revision207
- Show Engine Revision207
- Show Scan Driver Revision208
- Show Software Revision208
- Show Data Format208
- Reset Image Scanner208
- Image Scanner Report209
- Image Scanner Address209
- Base Address209
- Resetting the Standard Product Default Settings: Current Application Work Group209
- Resetting the Standard Product Default Settings: All Application Work Groups210
- Test Menu210
- Visual Xpress Introduction211
  - Installing Visual Xpress from the Web212
- Quickview212
  - Installing Quickview from the Web212
- Temporary Quickview Configuration213
Chapter 12 - Serial Programming Commands215
- Conventions215
- Menu Command Syntax215
- Trigger Commands218
- Menu Commands219
Chapter 13 - Product Specifications245
- 4820 Product Specifications245
- 4820I Product Specifications247
- 2020-5 Product Specifications248
Chapter 14 - Maintenance255
- Repairs255
- Assembling the Battery Charge Sleeve Kit257
- Troubleshooting the Base258
- Troubleshooting the Image Scanner258
Chapter 15 - Customer Support261
- Product Service and Repair261
  - Online Product Service and Repair Assistance262
- Limited Warranty262
Appendix A - Reference Charts265
- Symbology Chart265
- Possible Aim266
- Code Page Mapping of Printed Bar Codes271
Appendix B - Minimizing Bluetooth/Ism Band Network Activity273
- Auto Reconnect Mode273
- Maximum Link Attempts274
- Relink Time-Out274
- Bluetooth/Ism Network Activity Examples275
Sample Symbols278
OCR Programming Chart281
Programming Chart282
