4 - 1

Output

Good Read Indicators

Beeper – Good Read

The beeper may be programmed On or Off

in response to a good read. Turning

this option off, only turns off the beeper response to a good read indication. All

error and menu beeps are still audible.

Default = On.

Beeper Volume – Good Read

The beeper volume codes modify the volume of the beep the image scanner

emits on a good read.

Default = Medium.

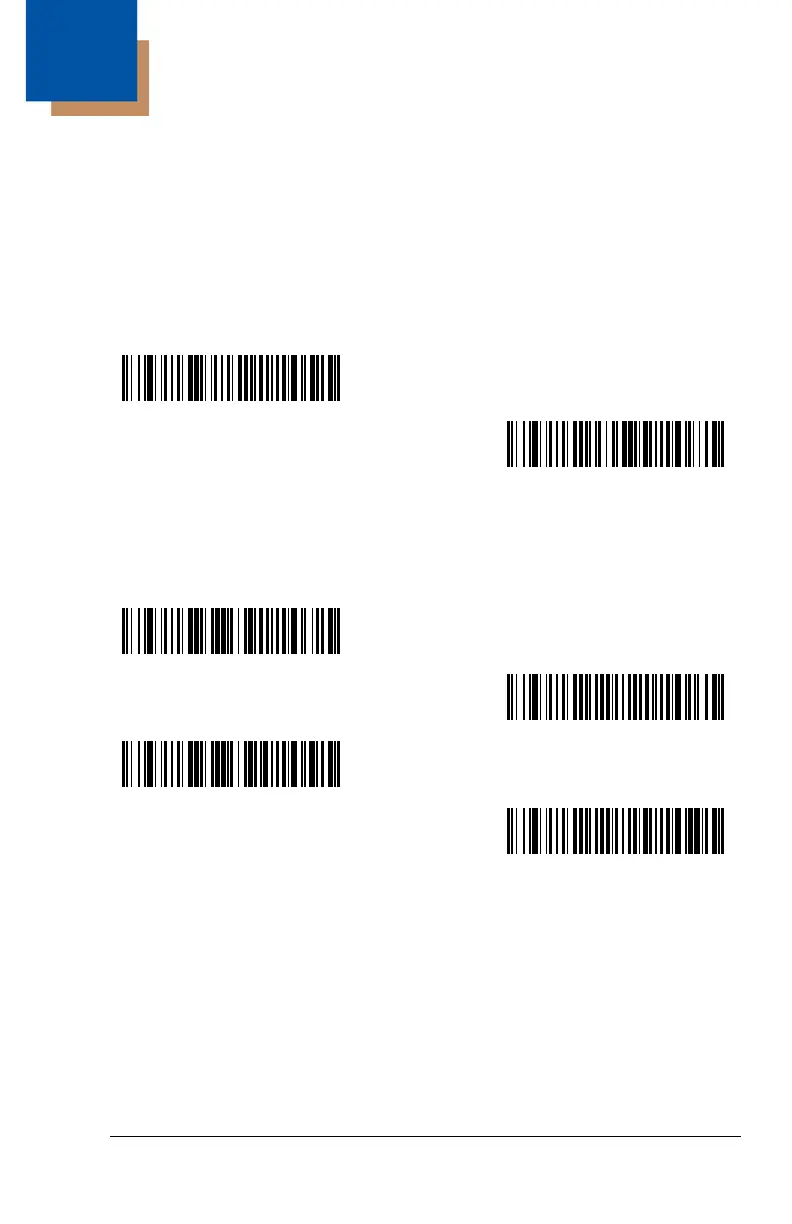

* Beeper - Good Read On

Beeper - Good Read Off

High

* Medium

Off

Low
