8 - 9

IF- Noise Reduction

Used to reduce the salt and pepper noise in an image.

0if No salt and pepper noise reduction (default)

1if Salt and pepper noise reduction

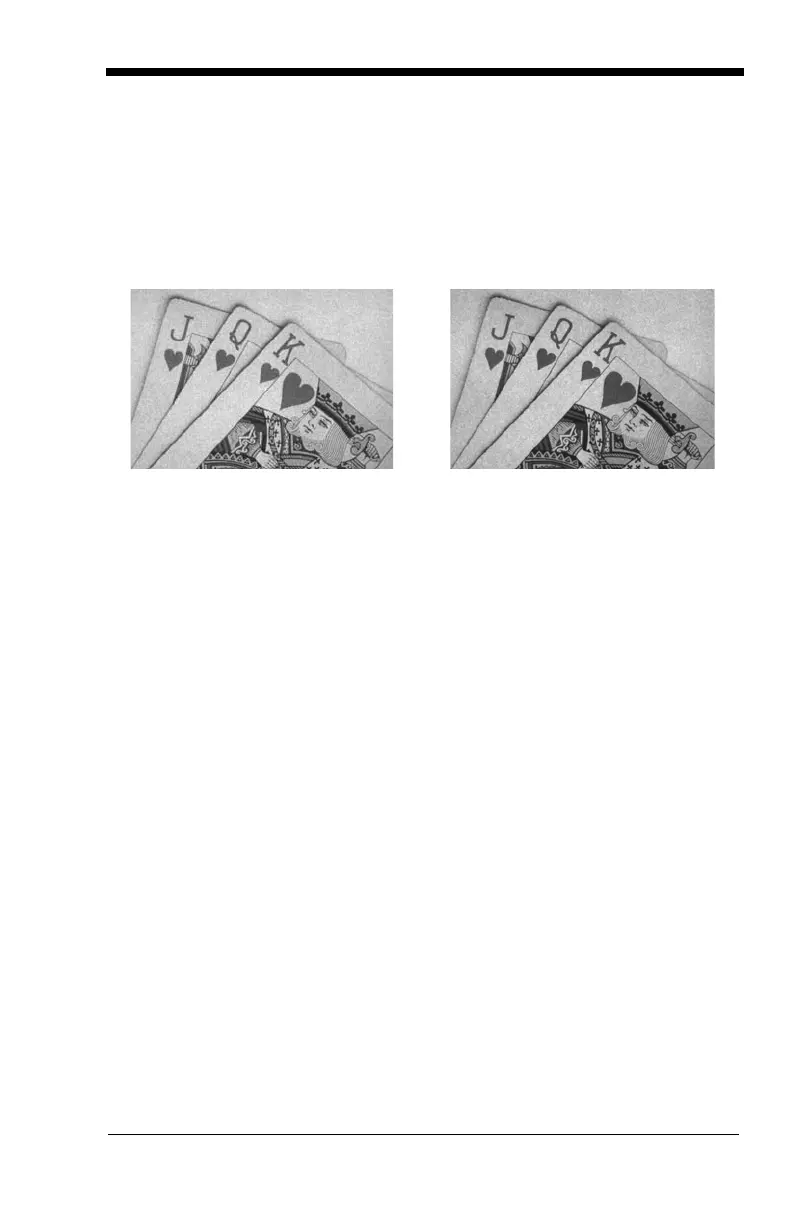

Example of Noise Reduction On

(1if):

Example of Noise Reduction Off

(0if):

Default Chapter11
- Table of Contents11
Chapter 1 - Getting Started21
- About this Manual21
- Unpacking the System21
- Image Scanner Models21
- Cordless System: Main Components22
- About the Battery22
- Proper Disposal of the Battery23
- Connecting the Base23
- Linking Image Scanner to Base27
- Communication between the Cordless System and the Host28
- Reading Techniques29
Chapter 2 - Programming the Interface31
- Introduction31
- Programming the Interface - Plug and Play31
- Keyboard Wedge Connection31
- IBM 4683 Ports 5B, 9B, and 17 Interface33
- IBM Surepos34
- Serial Wedge36
- Programming the Interface - Terminal ID Method36
- Supported Terminals38
- Keyboard Country40
- Keyboard Style42
- Keyboard Function Relationships43
- Keyboard Modifiers43
- Wand Emulation50
Chapter 3 - Basic System Operation55
- Cordless Base55
- RF (Radio Frequency) Module Operation55
- Cordless Image Scanner55
- System Conditions56
- Base Charge Mode57
- Beeper and LED Sequences and Meaning58
  - Image Scanner LED Sequences and Meaning58
  - 2020 LED Sequences and Meaning58
- Image Scanner Modes59
  - Unlinking the Image Scanner59
- Single Image Scanner Operation59
- Multiple Image Scanner Operation61
- Image Scanner Name61
- Image Scanner Report63
- Application Work Groups63
  - Application Work Group Selection64
- Resetting the Standard Product Default Settings: All Application Work Groups65
- Resetting the Standard Product Default Settings: Current Application Work Group65
- Using the Image Scanner with Bluetooth Devices66
- Out-Of-Range Alarm74
  - Duration74
  - Alarm Sound Type75
- Data Accumulation Mode76
  - Batch Mode Transmit Delay77
Chapter 4 - Output79
- Good Read Indicators79
  - Beeper - Good Read79
  - Beeper Volume - Good Read79
  - Beeper Pitch - Good Read80
  - Beeper Duration - Good Read80
  - LED - Good Read80
  - Number of Beeps - Good Read80
- Good Read Delay81
- User-Specified Good Read Delay81
- Serial Trigger Modes82
  - Manual/Serial Trigger, Low Power82
- Scan Stand Mode84
  - Scan Stand Symbol84
- Presentation Mode85
  - Presentation LED Behavior after Decode85
  - Presentation Sensitivity86
- Streaming Presentation™ Mode86
- Image Snap and Ship87
- Hands Free Time-Out87
- Reread Delay87
- User-Specified Reread Delay88
- LED Power Level88
- Illumination Lights89
- Aimer Delay90
  - User-Specified Aimer Delay90
- Aimer Mode90
- Centering91
- Decode Search Mode92
- Preferred Symbology93
- Symbology Chart94
- Output Sequence Overview95
  - Output Sequence Editor97
  - Require Output Sequence97
- Multiple Symbols98
- No Read99
- Print Weight99
  - Video Reverse100
  - Working Orientation100
Chapter 5 - Data Editing103
- Prefix/Suffix Overview103
- Intercharacter, Interfunction, and Intermessage Delays107
Chapter 6 - Data Formatting111
- Data Format Editor Introduction111
Chapter 7 - Symbologies118
- All Symbologies118
- Message Length Description118
- Codabar119
  - Codabar Concatenation120
- Code 32 Pharmaceutical (PARAF)123
- Full ASCII124
- Code 39 Code Page124
- Interleaved 2 of 5125
- Code 93127
  - Code 93 Code Page127
- Straight 2 of 5 Industrial (Three-Bar Start/Stop)128
- Straight 2 of 5 IATA (Two-Bar Start/Stop)129
- Matrix 2 of 5130
- Code 11131
- Code 128131
  - ISBT 128 Concatenation132
  - Code 128 Code Page133
- Telepen133
- Upc-A134
- Upc-A/Ean-13137
- With Extended Coupon Code137
- Upc-E0137
- Upc-E1140
- Ean/Jan-13140
  - ISBN Translate142
- Ean/Jan-8142
- Msi144
- Plessey Code145
- GS1 Databar Omnidirectional146
- GS1 Databar Limited146
- GS1 Databar Expanded146
- Posicode147
- Codablock F148
- Code 16K149
- Code 49150
- Pdf417152
- Micropdf417152
- GS1 Composite Codes153
  - UPC/EAN Version154
- GS1 Emulation154
  - TCIF Linked Code 39 (TLC39)155
  - Postal Codes155
  - QR Code162
  - Data Matrix163
  - Maxicode164
  - Aztec Code165
  - Chinese Sensible (Han Xin) Code166
Chapter 8 - Imaging Commands167
- Single-Use Basis167
- Command Syntax167
- Image Snap - IMGSNP168
  - IMGSNP Modifiers168
- Image Ship - IMGSHP171
  - IMGSHP Modifiers172
  - Image Size Compatibility181
- Intelligent Signature Capture - IMGBOX181
  - IMGBOX Modifiers183
- RF Default Imaging Device186
Chapter 9 - OCR Programming187
- OCR Fonts187
- Ocr187
- U.S. Currency Font188
- MICR E13 B Font188
- SEMI Font189
- OCR Templates189
  - Creating an OCR Template189
  - Stringing Together Multiple Formats (Creating "Or" Statements)191
- OCR User-Defined Variables192
  - Reading Multi-Row OCR193
- OCR Check Character193
  - OCR Modulo 10 Check Character194
  - OCR Modulo 36 Check Character194
- OCR User-Defined Check Character194
  - Weighting Options196
- OCR ISBN Application Example197
- OCR Template Codes199
Chapter 10 - Interface Keys201
- Keyboard Function Relationships201
- Supported Interface Keys203
Chapter 11 - Utilities207
- To Add a Test Code I.D. Prefix to All Symbologies207
- Show Decoder Revision207
- Show Engine Revision207
- Show Scan Driver Revision208
- Show Software Revision208
- Show Data Format208
- Reset Image Scanner208
- Image Scanner Report209
- Image Scanner Address209
- Base Address209
- Resetting the Standard Product Default Settings: Current Application Work Group209
- Resetting the Standard Product Default Settings: All Application Work Groups210
- Test Menu210
- Visual Xpress Introduction211
  - Installing Visual Xpress from the Web212
- Quickview212
  - Installing Quickview from the Web212
- Temporary Quickview Configuration213
Chapter 12 - Serial Programming Commands215
- Conventions215
- Menu Command Syntax215
- Trigger Commands218
- Menu Commands219
Chapter 13 - Product Specifications245
- 4820 Product Specifications245
- 4820I Product Specifications247
- 2020-5 Product Specifications248
Chapter 14 - Maintenance255
- Repairs255
- Assembling the Battery Charge Sleeve Kit257
- Troubleshooting the Base258
- Troubleshooting the Image Scanner258
Chapter 15 - Customer Support261
- Product Service and Repair261
  - Online Product Service and Repair Assistance262
- Limited Warranty262
Appendix A - Reference Charts265
- Symbology Chart265
- Possible Aim266
- Code Page Mapping of Printed Bar Codes271
Appendix B - Minimizing Bluetooth/Ism Band Network Activity273
- Auto Reconnect Mode273
- Maximum Link Attempts274
- Relink Time-Out274
- Bluetooth/Ism Network Activity Examples275
Sample Symbols278
OCR Programming Chart281
Programming Chart282
