13 - 6

Standard Cable Pinouts

Keyboard Wedge

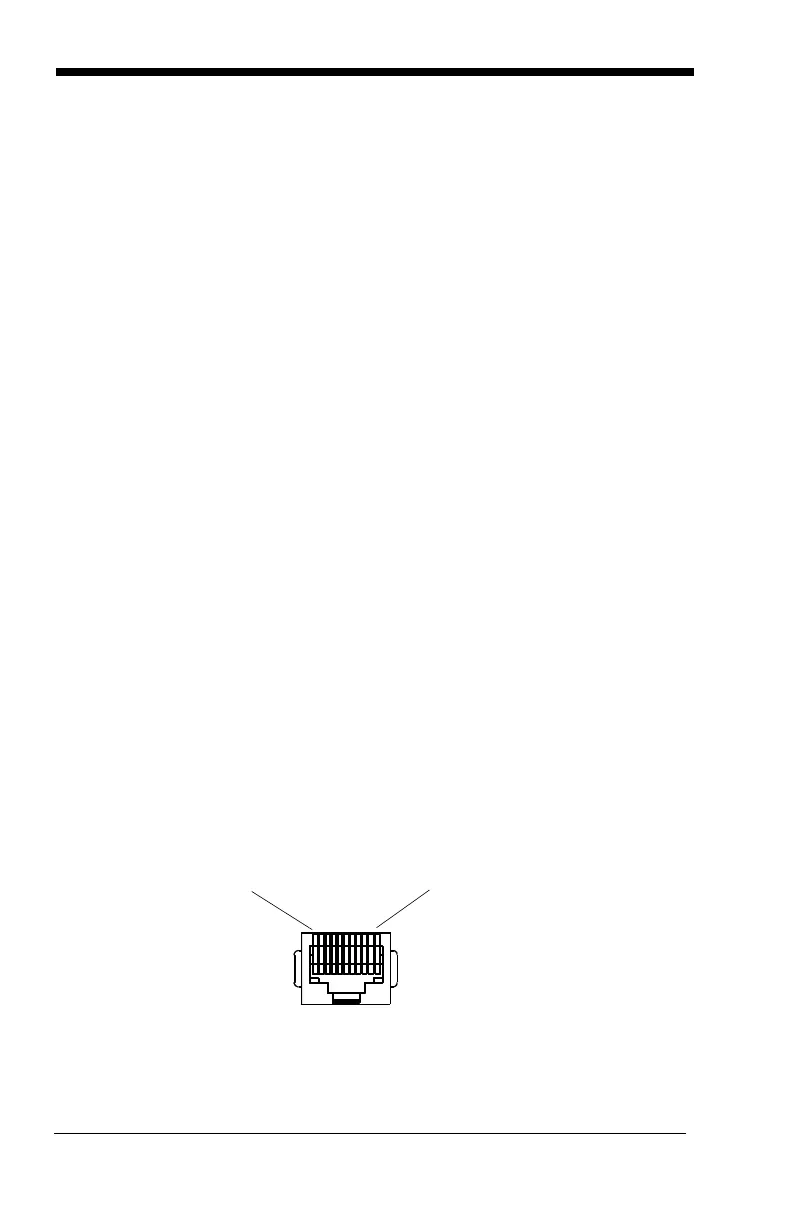

10 Pin RJ41 Modular Plug

connects to the base

1

2 Cord shield

3 Tied to supply power

4 Supply ground

5 Terminal clock

6 Terminal data

7 Supply power input (Refer to tables on page 13-1.)

8 Keyboard data

9 Keyboard clock

10
