Honeywell 2020

13 - 8
Standard Cable Pinouts
Serial Output

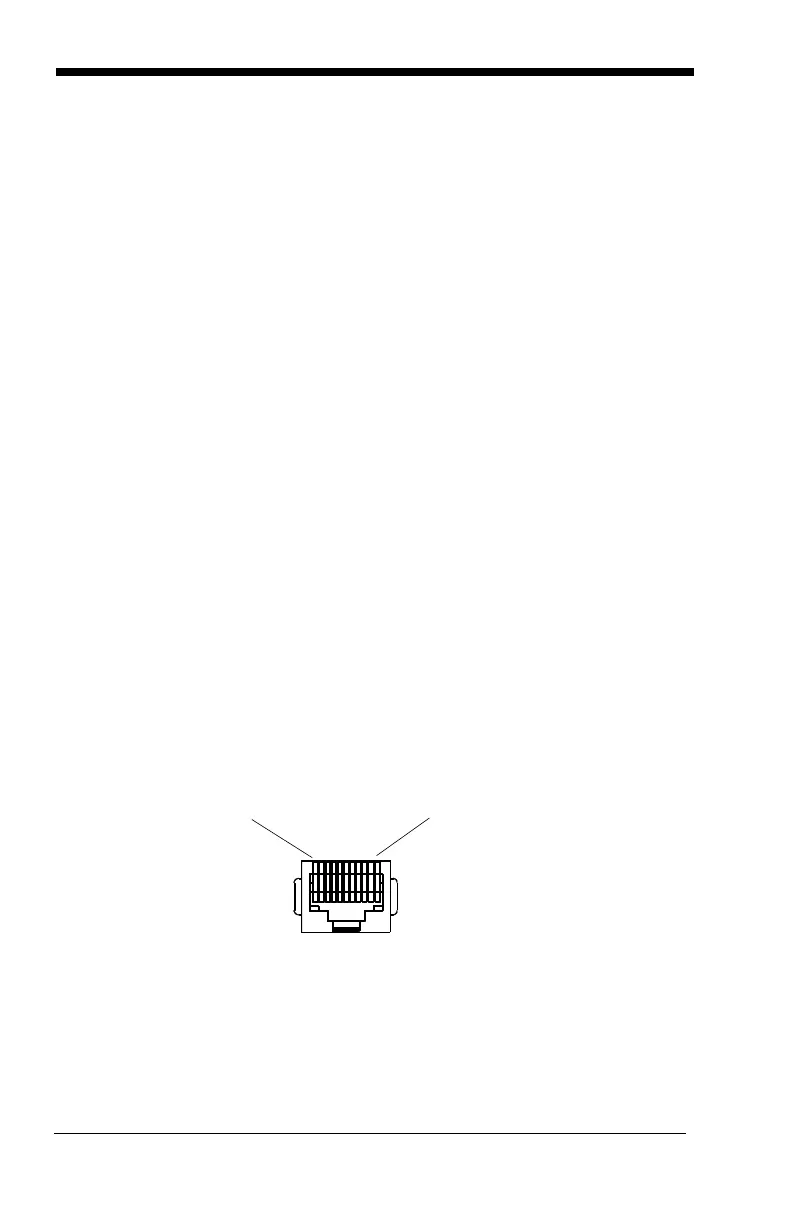

10 Pin RJ41 Modular Plug connects to the base
1 2 Cord shield 3 Prog 1 (Tied to supply power for primary cable) 4 Supply ground 5 Receive data - Serial data to image scanner 6 Transmit data - Serial data from image scanner 7 Supply power input (Refer to tables on page 13-1.) 8 Request to send data 9 Clear to send data 10
