3 - 14

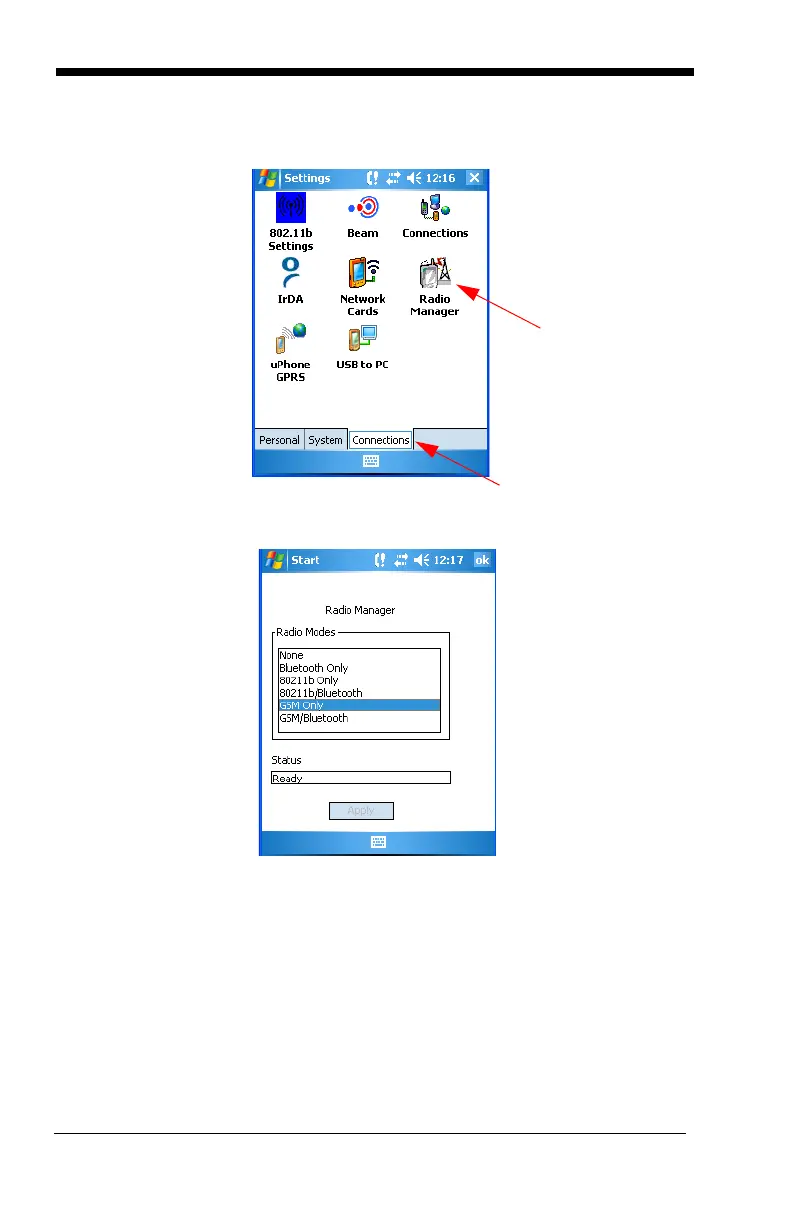

4. Tap the Connections tab at the bottom of the screen and then tap the

Radio Manager icon.

5. Enable one of the Bluetooth modes (e.g., Bluetooth only or 80211b/

Bluetooth). The screen below shows that only the GSM radio is active.
