2.6.3 Wire Routing
You must follow power-limited wiring techniques, which include maintaining one-
quarter inch spacing between power-limited and non-power limited circuits and
separating high and low voltage circuits.

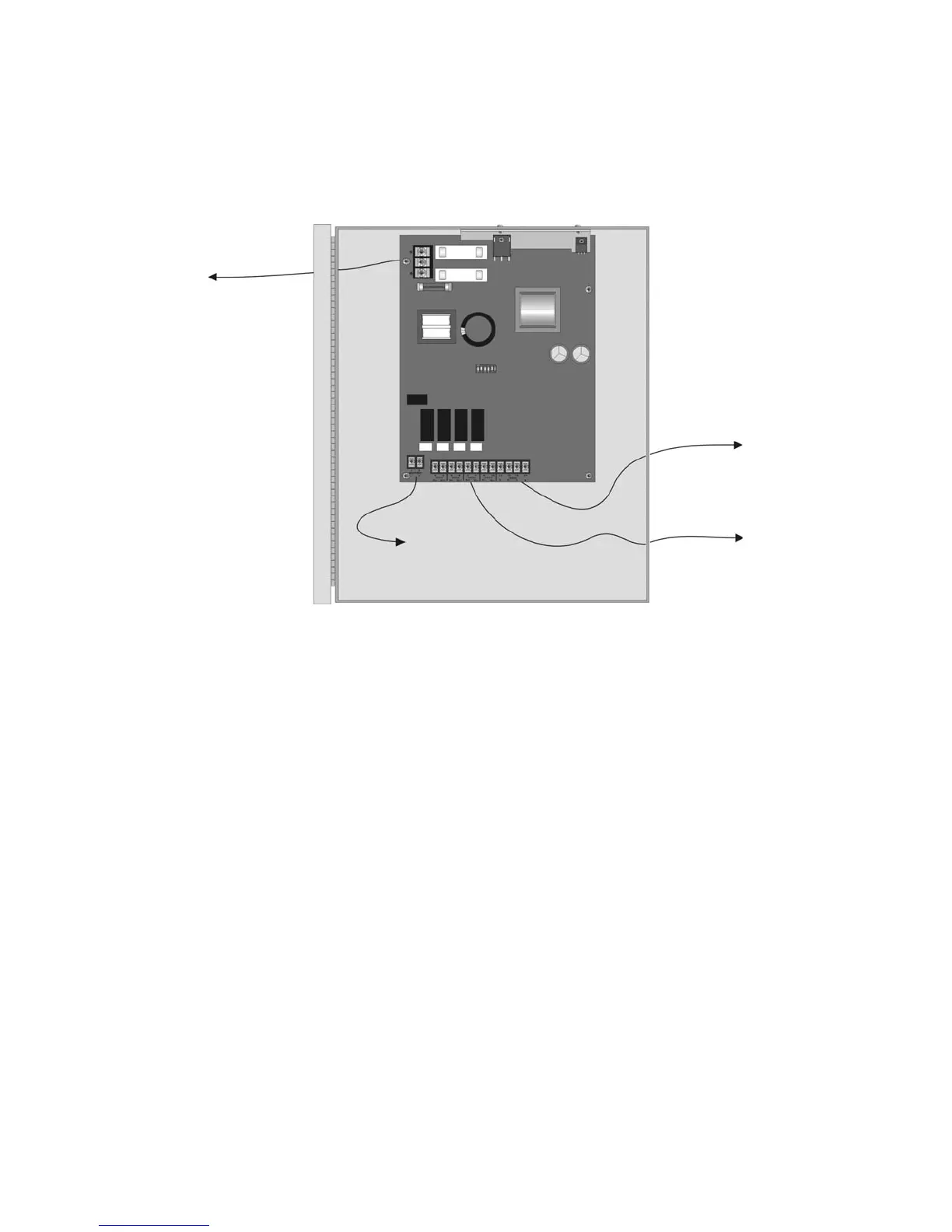

Figure 2-2 Wire Routing Example
5496 Board
To AC
Power
To Battery
To SBUS
Terminals
To NACs
