151276-L8 Hardware Installation
3-7
3.4.4 Auxiliary Power Configuration
Output circuits 1-4 on the control panel can be used as auxiliary power circuits. The
three types of auxiliary power available are:
• Door Holder (see Section 3.4.4.1 for description)
• Constant (see Section 3.4.4.2 for description)
• Resettable (see Section 3.4.4.3 for description)
• Sounder Sync Power
Auxiliary power circuits are power limited. Each circuit can source up to 3A (total
current for all output circuits must not exceed 6 A).
To configure an output circuit as auxiliary power:
1. Wire the output circuit(s) that will be used for auxiliary power. See Figure 3-7 for
location of the output circuits.
2. Configure the auxiliary power output through programming for Door Holder,
Constant or Resettable power.

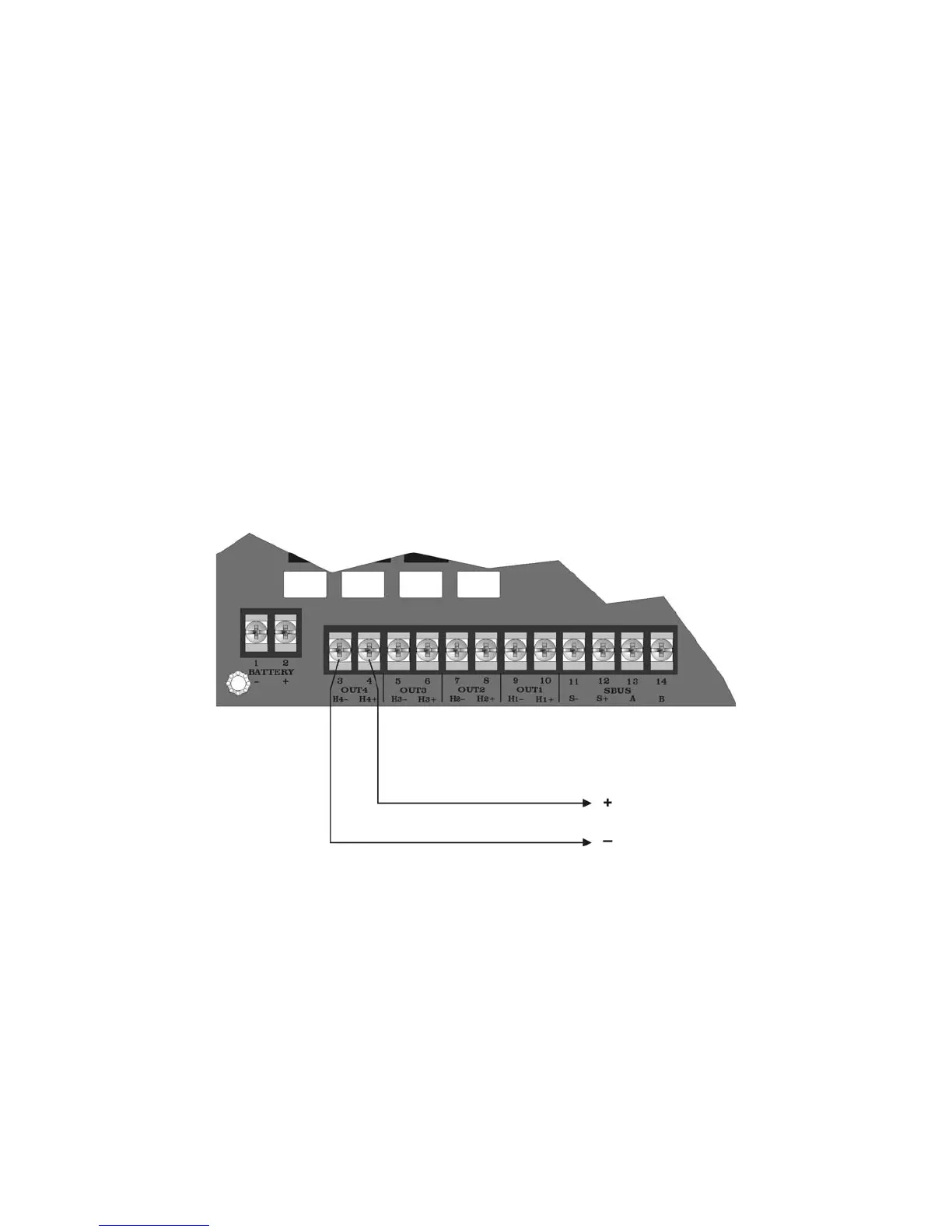

Figure 3-7 Output Circuits Used as Auxiliary Power
Power Limited
Supervised when used with the
Power Supervision Relay (PN160150)
To Next Page
