3.3.1 Setting the Device ID
All SBUS modules in the system must have a unique number (1-31) to identify them
to the FACP. Use the DIP switch on the 5496 board to set the module ID number.
Figure 2-1 shows the location of the dipswitch on the board. Figure 3-4 shows
dipswitch setting and the corresponding module ID numbers.

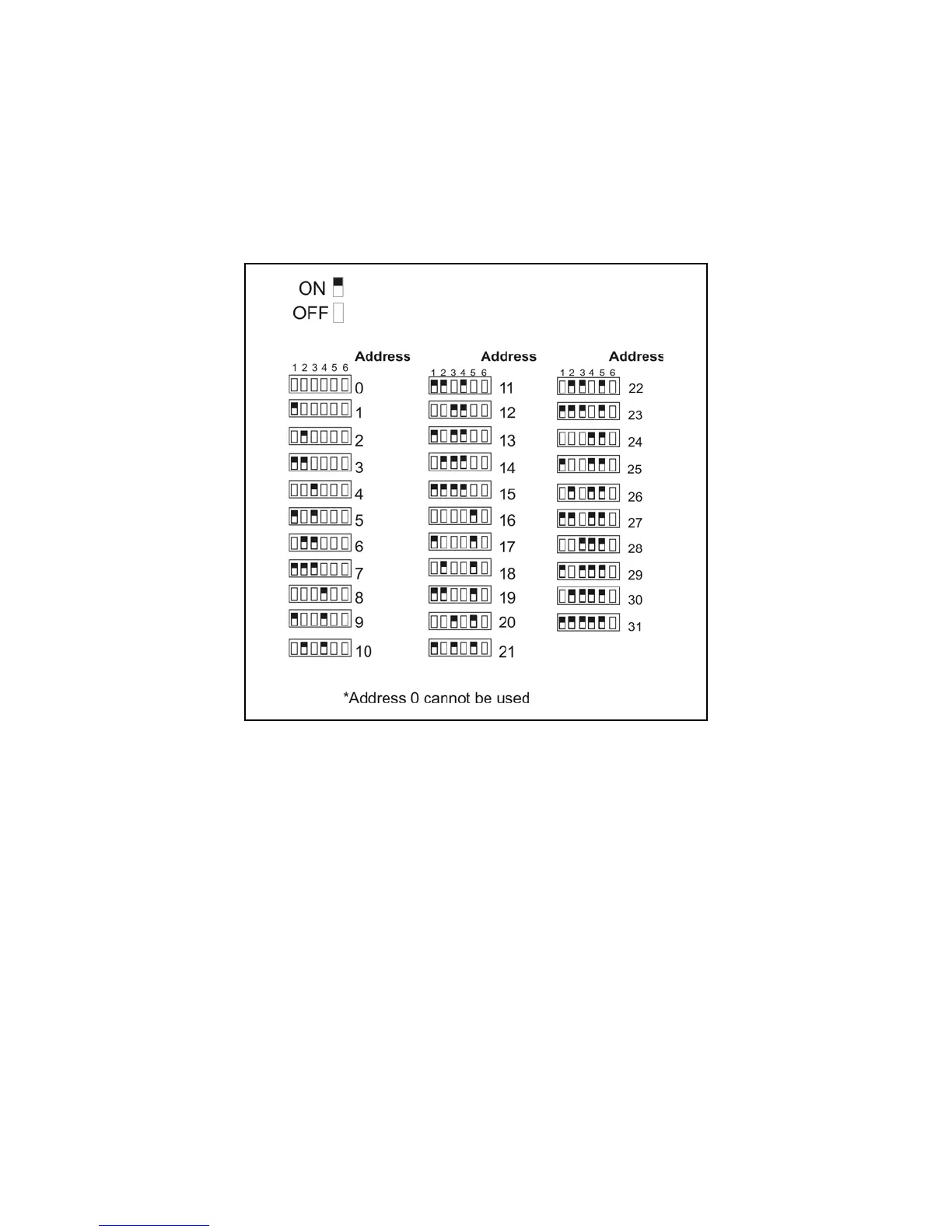

Figure 3-4 Possible Module Addresses
