24
INSTALLATION
WALL MOUNT STAND INSTALLATION
3. Remove the scanner’s back plate from the rear side of the unit. Apply
pressure to the points shown in Figure 21 until the back plate unlatches
from the scanner.

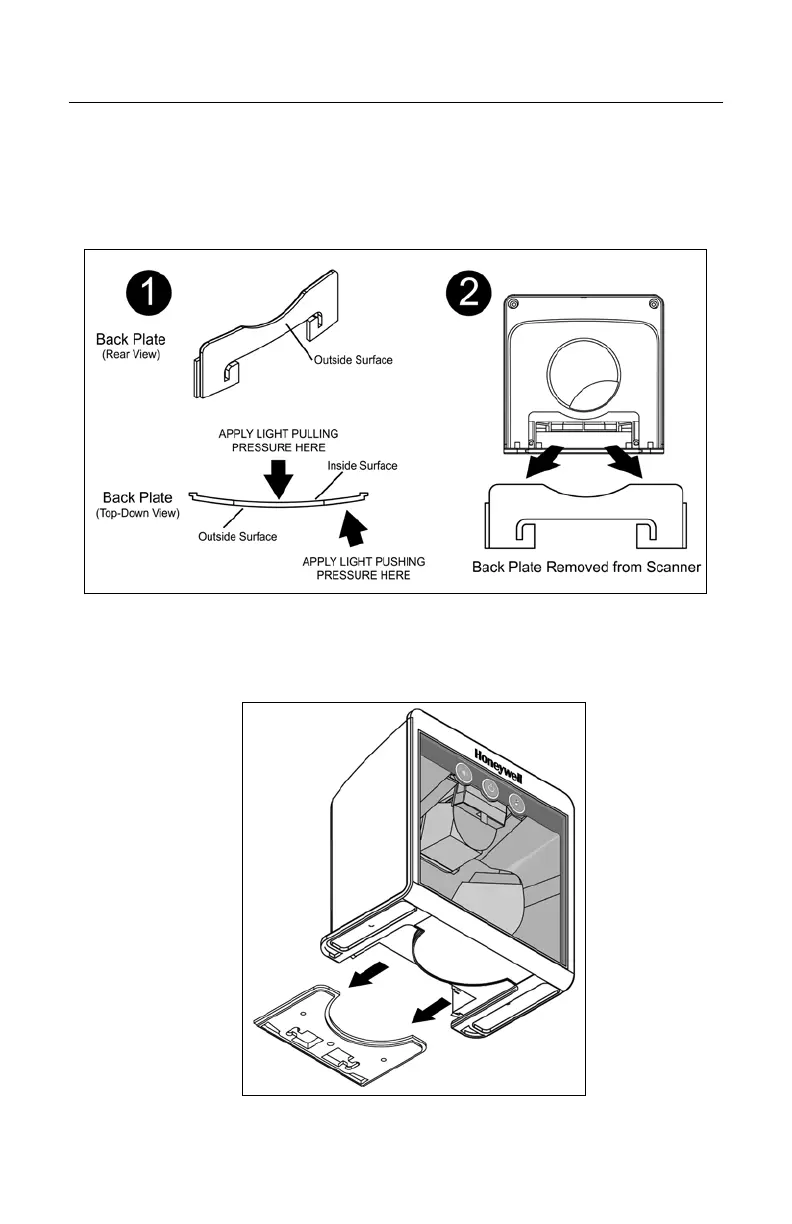

Figure 21. Cable Cover Removal
4. Slide the bottom mounting plate off the scanner.
Figure 22. Mounting Plate Removal
