INSTALLATION
WALL MOUNT STAND INSTALLATION
5. Secure the wall mounting plate to the wall location designated in Step 1 and

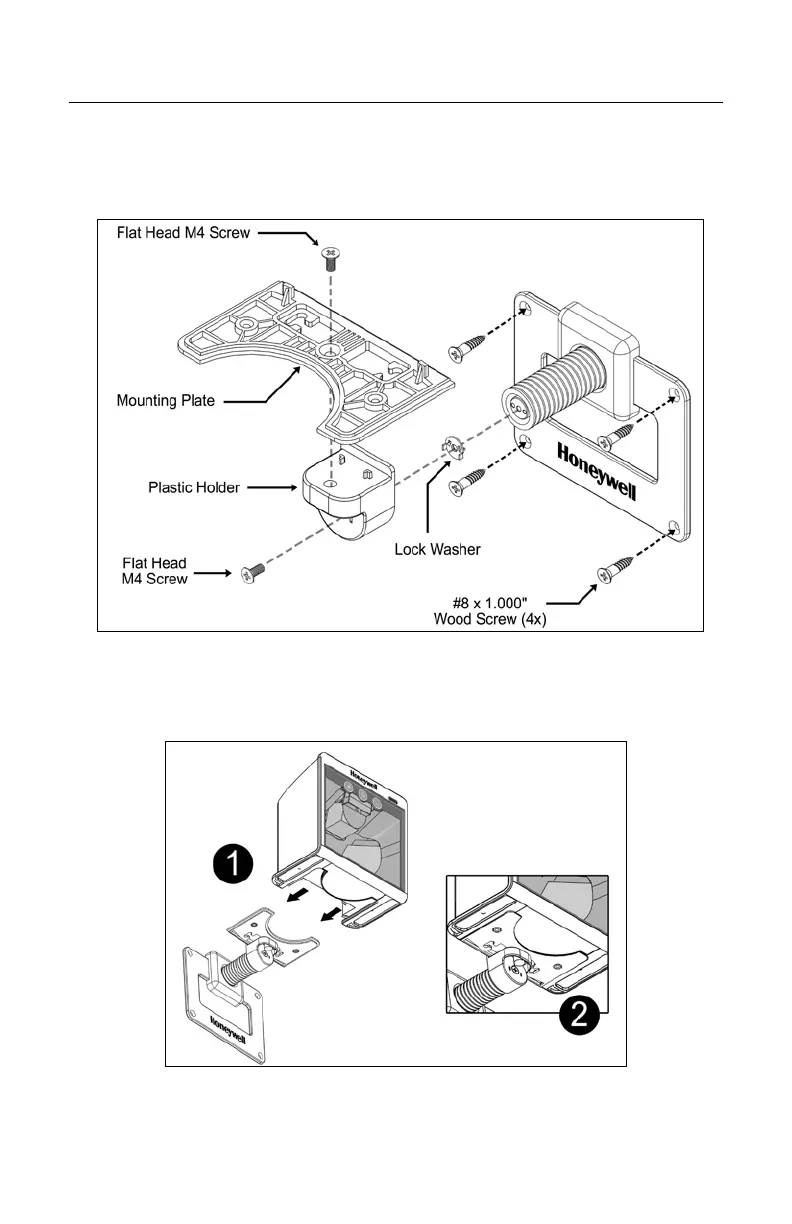

assemble the remaining parts as shown in Figure 23.
Figure 23. Scanner Mounting Plate Assembly
6. Slide the scanner onto the mounting plate until the plate is fully seated into
the scanner.
Figure 24. Slide mounting plate into scanner.
