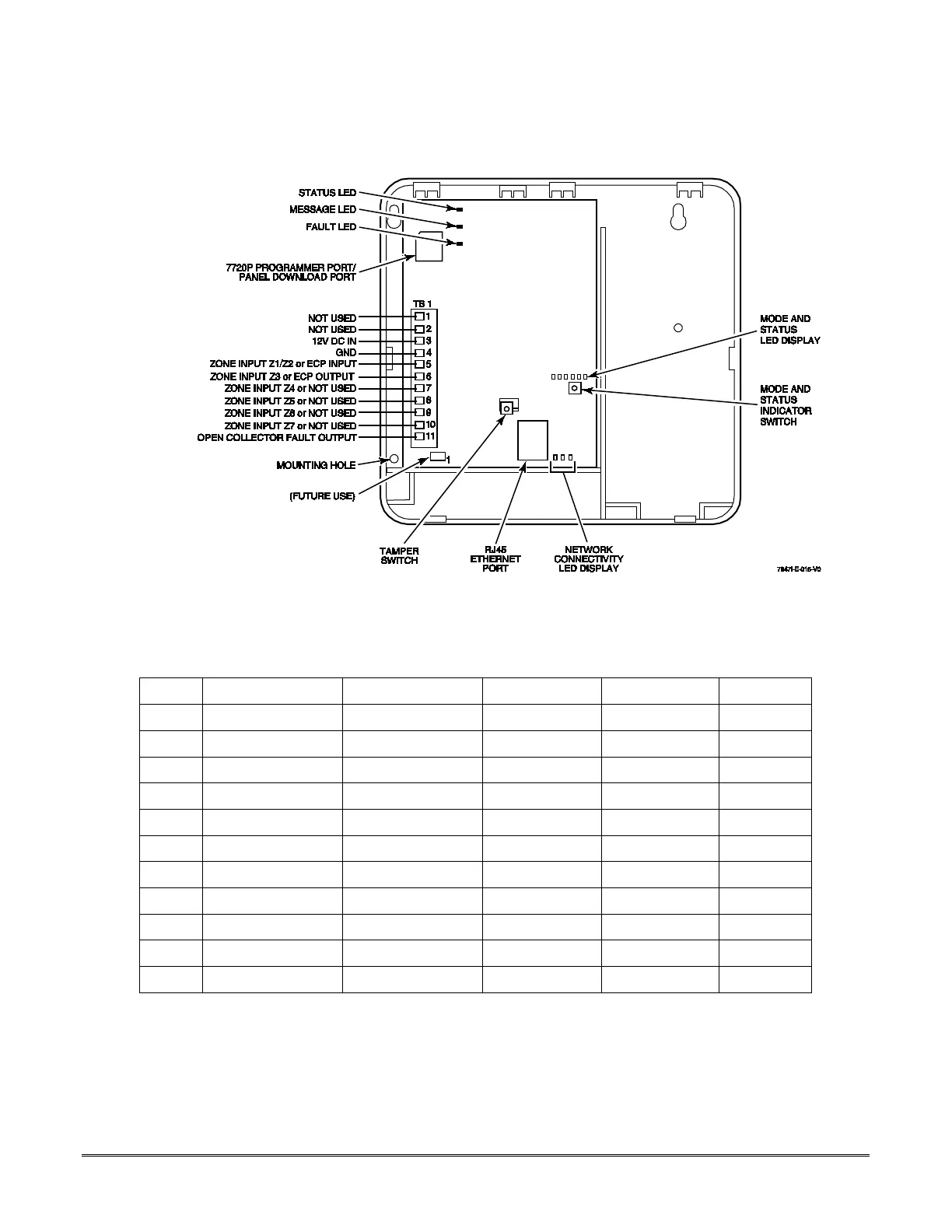

7847i-E Summary of Connections
TB1 Wiring for 7847i-E Communication Module
TB1 2 x 4204 Mode 4204 Mode Zone Mode ECP Mode Wire Color
1 --- --- --- ---
2 --- --- --- ---
3 12VDC 12VDC 12VDC 12VDC RED
4 GND GND GND GND BLK
5 ECP IN ECP IN Z1/Z2 ECP IN YEL
6 ECP OUT ECP OUT Z3 ECP OUT GRN
7 NOT USED NOT USED Z4 NOT USED
8 NOT USED NOT USED Z5 NOT USED
9 NOT USED Z6 Z6 Z6
10 NOT USED Z7 Z7 Z7
11 FLT OUT FLT OUT FLT OUT FLT OUT
