954 SmartServo FlexLine

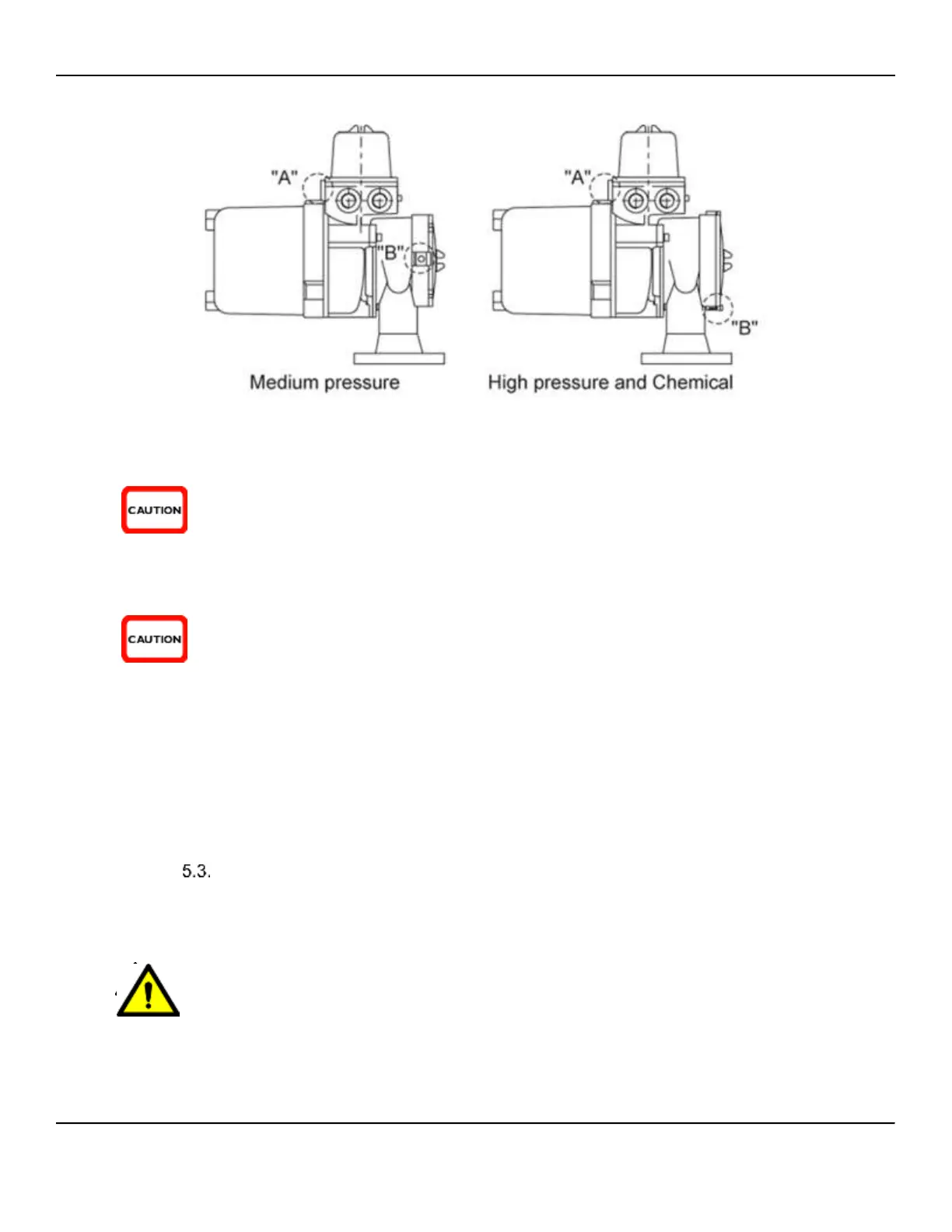

Figure 8 Optional Blocking Devices
CAUTION!
Before opening the electronic and terminal compartment cover, remove the optional
blocking devices which locks the covers: “A”: for electronic compartment cover and
terminal compartment cover; “B”: for drum compartment cover.
CAUTION!
Do not damage the thread of the covers and instrument and keep the thread free of dirt.
After opening, grease it lightly with anti-seize grease.
When closing, never tighten the covers before the threads are properly engaged. The
covers should be turned counter-clockwise until the thread clicks in place, then turn
clockwise until the covers are fully closed.
After closing the covers, do not forget to place the blocking devices.
Safety
5.3.1. General Relative Density
WARNING!
Make sure the power to the device is switched OFF, before you open the cover of the
device.
