Honeywell 954 SmartServo FlexLine

Part No: 4417341 Revision 10 Installation Manual 43
954 SmartServo FlexLine
Appendix A (Continuation)

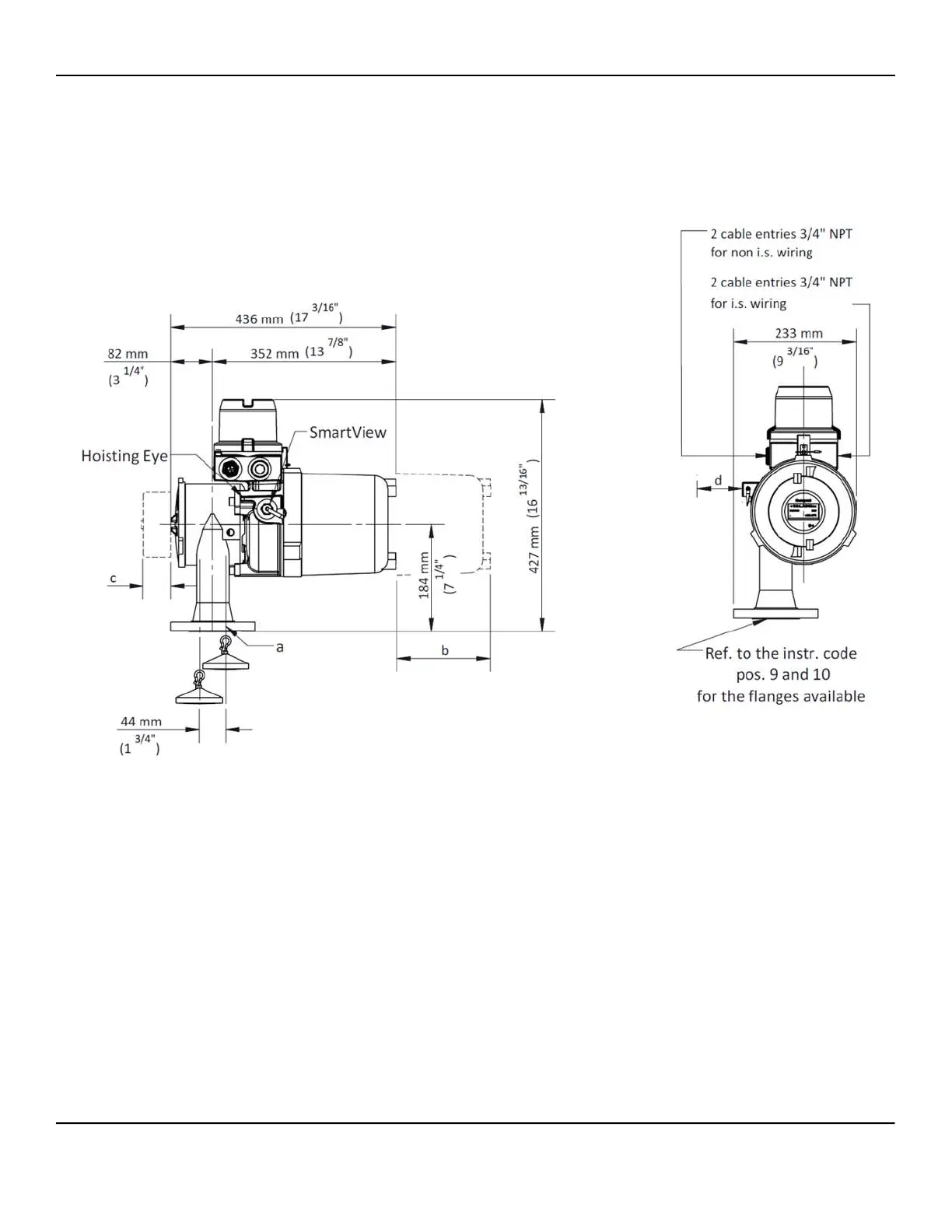

Dimensions 954 SmartServo FlexLine (High Pressure Version)
a. Position of measuring wire with displacer in top position
b. 200 mm (7
7/8’’
) (space needed to remove cover)
c. 65 mm (2
9/16’’
) (space needed to remove measuring drum)
d. 100 mm (4’’) (free space for SmartView Connection)
