TO DETERMINE TOTAL STANDBY LOAD
ON BATTERY, ADD 100mA TO TOTAL OF
AUX. POWER OUTPUT AND REMOTE
KEYPAD CURRENTS.
4 6 8 10 11 13 16 17 18 19 20
21
EARTH GROUND
SEE INSTRUCTIONS
FOR PROPER GROUNDING
TELEPHONE WIRING
(VIA RJ31X* JACK DIRECT
CONNECT CORD)
*IN CANADA, CA38A JACK
BLACK: KEYPAD GROUND (–) RETURN
RED: KEYPAD PWR (+)
GREEN: DATA IN FROM KEYPAD
YELLOW: DATA OUT TO KEYPAD
AUX. POWER
OUTPU T
10.5-13.8VDC
500mA MAX.
INTERRUPTS
FOR FIRE
ALARM RESET
NOTE:
KEYPAD
CURRENT MUST
BE INCLUDED IN
AUX. CURRENT
DRAIN
CALCULATIONS
BATT ERY
12V, 4AH
OR 12V, 1.2AH
–
+
–
+
CONNECTOR TABS
USE UL LISTED
LIMITED ENERGY
CABLE FOR ALL
CONNECTIONS
FOR COMPLETE
INFORMATION, SEE
INSTRUCTIONS
N5478V5
PLUG-IN TRANSFORMER
16.5VAC, 25VA
(e.g. ADEMCO No. 1321/TF2)
USE No. 1321CN IN CANADA
TO 110VAC
UNSWITCHED
OUTLET (24HR)
–
+
CONNECTION OF THE FIRE ALARM SIGNAL TO A FIRE
ALARM HEADQUARTERS OR A CENTRAL STATION
SHALL BE PERMITTED ONLY WITH THE PERMISSION
OF THE LOCAL AUTHORITY HAVING JURISDICTION.
THE BURGLAR ALARM SIGNAL SHALL NOT BE CON-
NECTED TO A POLICE EMERGENCY NUMBER.
ALARM OUTPUT
10.5-13.8VDC, 2A MAX.
(600mA MAX FOR UL USAGE,
INCLUDING AUX. POWER)
STEADY FOR BURGLARY/PANIC,
PULSING FOR FIRE (e.g. USE ADEMCO
No. 702 OR 719 SIREN, OR 12V BELL)
FUS E
FOR REPLACEMENT,
USE SAME VALUE
3A
BLK
RED
GRN
YEL
1000
OHMS
EOLR
1000
OHMS
EOLR
ZONE 5
ZONE 6
HI
LO
HI
LO
TIP
(BROWN)
RING
(GRAY)
TIP
(GREEN)
RING
(RED)
INCOMING
PHONE LINE
LOCATED AT
LOWER RIGHT OF
CIRCUIT BOARD
HANDSET
BLACK
RED
– +

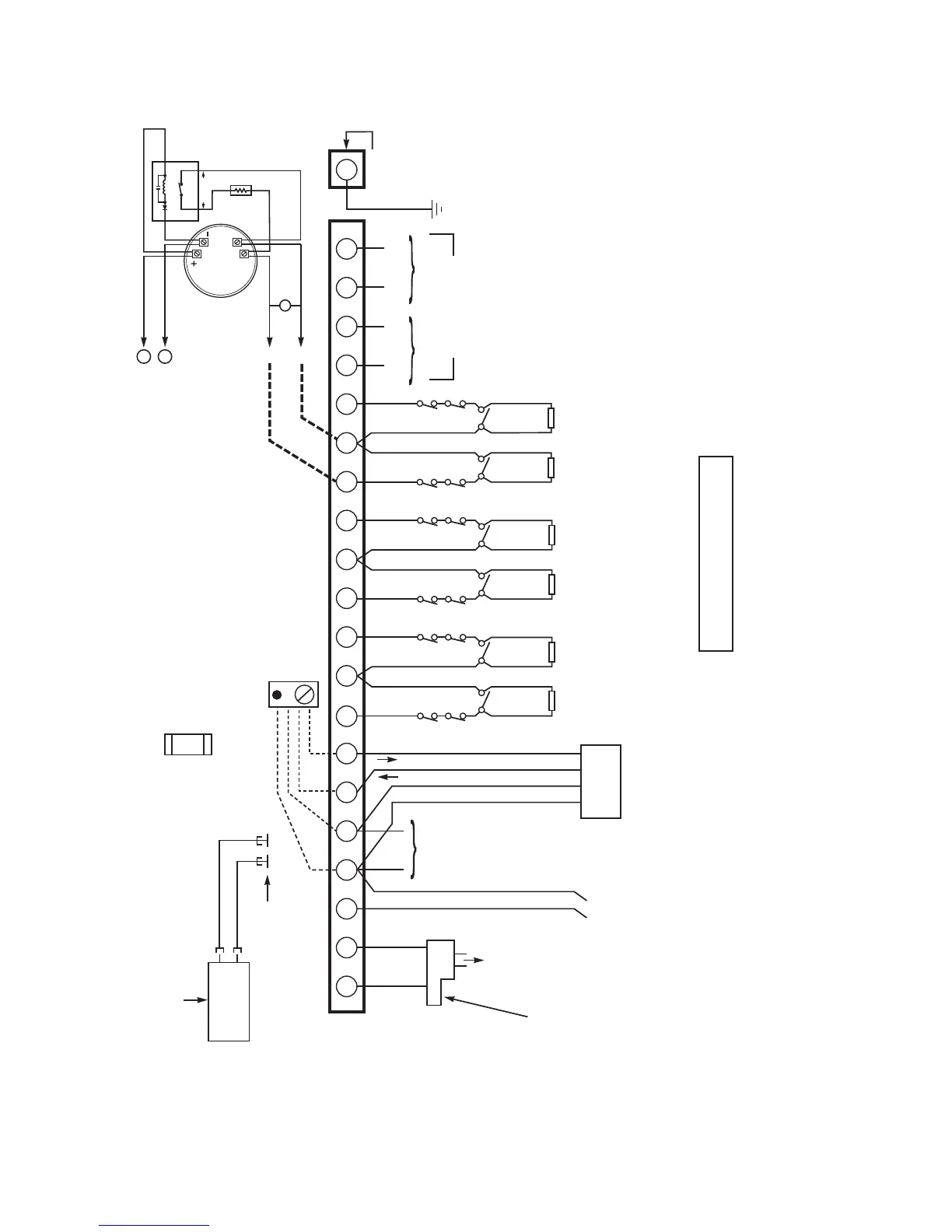

No. 4110XM
SUMMAR
Y OF CONNECTIONS
1000
OHMS
EOLR
1000
OHMS
EOLR
ZONE 1
ZONE 2
HI
LO
HI
LO
1000
OHMS
EOLR
1000
OHMS
EOLR
ZONE 3
ZONE 4
HI
LO
HI
LO
• MAXIMUM LOOP RESISTANCE (EACH ZONE) 300 OHMS (PLUS EOLR)
• RESPONSE, ZONES 1-6:300-500MSEC
• ZONE 3 CAN BE PROGRAMMED FOR N.C. SENSOR FAST RESPONSE TO
AN OPEN: 10MSEC MAX
• ZONE 5 CAN BE PROGRAMMED FOR USE AS A FIRE ZONE. SEE DIAGRAM
No. 4116
ARMING/DISARMING
KEYSWITCH
(SINGLE LED, LOCKSWITCH, TAMPER)
BATTERY
(e.g. No. 90-12)
CHARGING
VOLTAGE
13.8VDC
NOTE:
MULTIPLE KEYPADS MAY BE USED.
A MAX. OF 220 FT. OF #22 WIRE OR
550 FT. OF #18 WIRE MAY BE USED.
WARNING:
TO PREVENT RISK OF SHOCK,
DISCONNECT TELEPHONE LINE
AT TELCO JACK BEFORE
SERVICING THIS UNIT.
THIS EQUIPMENT SHOULD BE INSTALLED IN
ACCORDANCE WITH THE NATIONAL FIRE PRO-
TECTION ASSOCIATION'S STANDARD 74 (NATION-
AL FIRE PROTECTION ASSOC., BATTERYMARCH
PARK, QUINCY, MA 02269). PRINTED INFORMA-
TION DESCRIBING PROPER INSTALLATION, OPER-
ATION, TESTING, MAINTAINANCE, EVACUATION
PLANNING AND REPAIR SERVICE IS TO BE PRO-
VIDED WITH THIS EQUIPMENT.
COMPLIES WITH FCC RULES, PART 68
FCC REGISTRATION NO. AC398U-68192-AL-E
RINGER EQUIVALENCE: 0.7B.
THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION
IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) IT MAY NOT
CAUSE HARMFUL INTERFERENCE, (2) IT MUST ACCEPT ANY INTER-
FERENCE THAT MAY CAUSE UNDESIRED OPERATION.
TO
AUX PWR
TERMS
+
-
+
-
EOL
POWER
SUPER-
VISION
RELAY
MODULE
ELOR-1
5
4
4-WIRE SMOKE
OR COMBUSTION
DETECTOR
1000
EOLR
HEAT
DETECTOR
TO ZONE 5
*
+
RED
BLK
–
VIOLET
*
IF PROGRAMMED FOR FIRE
14 15
DOC LOAD NO.:3
GEL. LEAD ACID TYPE.
BATTERY NORMALLY NEED NOT BE
R
EPLACED FOR AT LEAST 3 YRS.
BATTERY CAPACITY FOR EMERGENCY
ST
ANDBY USE AT LEAST 4 HOURS.
4110XM-SOC-V2
REMOTE
K
EYPAD
(e.g. 6150)
91 2 3 7 125
