4 - 2
you are programming. (See Primary/Alternate Data Formats on page
4-9 for further information.)
Step 3. Terminal Type
Scan the 0 9 9 bar codes on the inside back cover to program the sled
for your terminal ID (you must enter 3 digits).
Step 4. Code I.D.
In the Symbology Chart, beginning on page A-1, find the symbology to
which you want to apply the data format. Locate the Hex value for that
symbology and scan the 2 digit hex value from the Programming Chart
inside the back cover of this manual.
Step 5. Length
Specify what length (up to 9999 characters) of data will be acceptable
for this symbology. Scan the four digit data length from the
Programming Chart inside the back cover of this manual. (Note: 50
characters is entered as 0050. 9999 is a universal number, indicating
all lengths.)
Step 6. Editor Commands
Refer to Data Format Editor Commands (page 4-3). Scan the symbols
that represent the command you want to enter. 94 alphanumeric
characters may be entered for each symbology data format.
Step 7. Scan Save to save your data format, or Discard to exit without saving
your changes.
Other Programming Selections
Clear One Data Format
This deletes one data format for one symbology. If you are clearing
the primary format, scan 0 from the Programming Chart inside the back
cover of this manual. If you are clearing an alternate format, scan 1, 2,

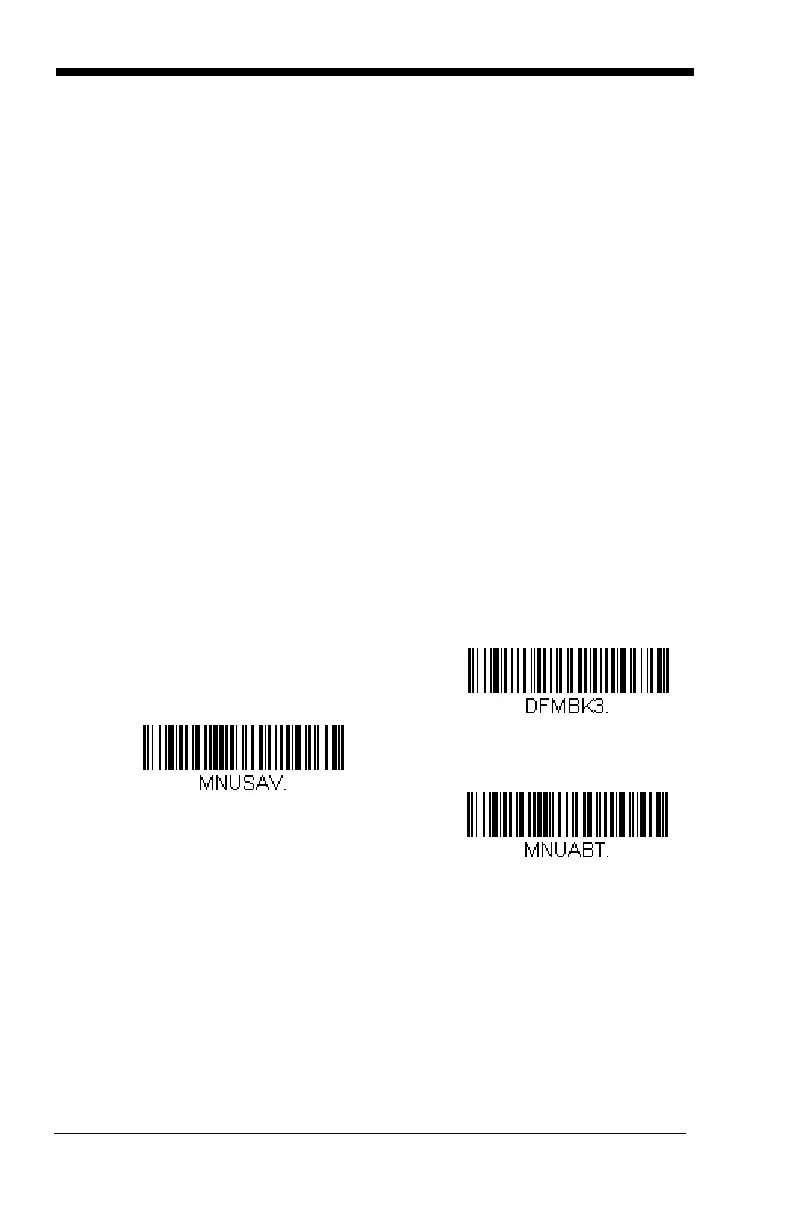

Enter Data Format
Save
Discard
