Installation Dimensions for a Redundant Controller

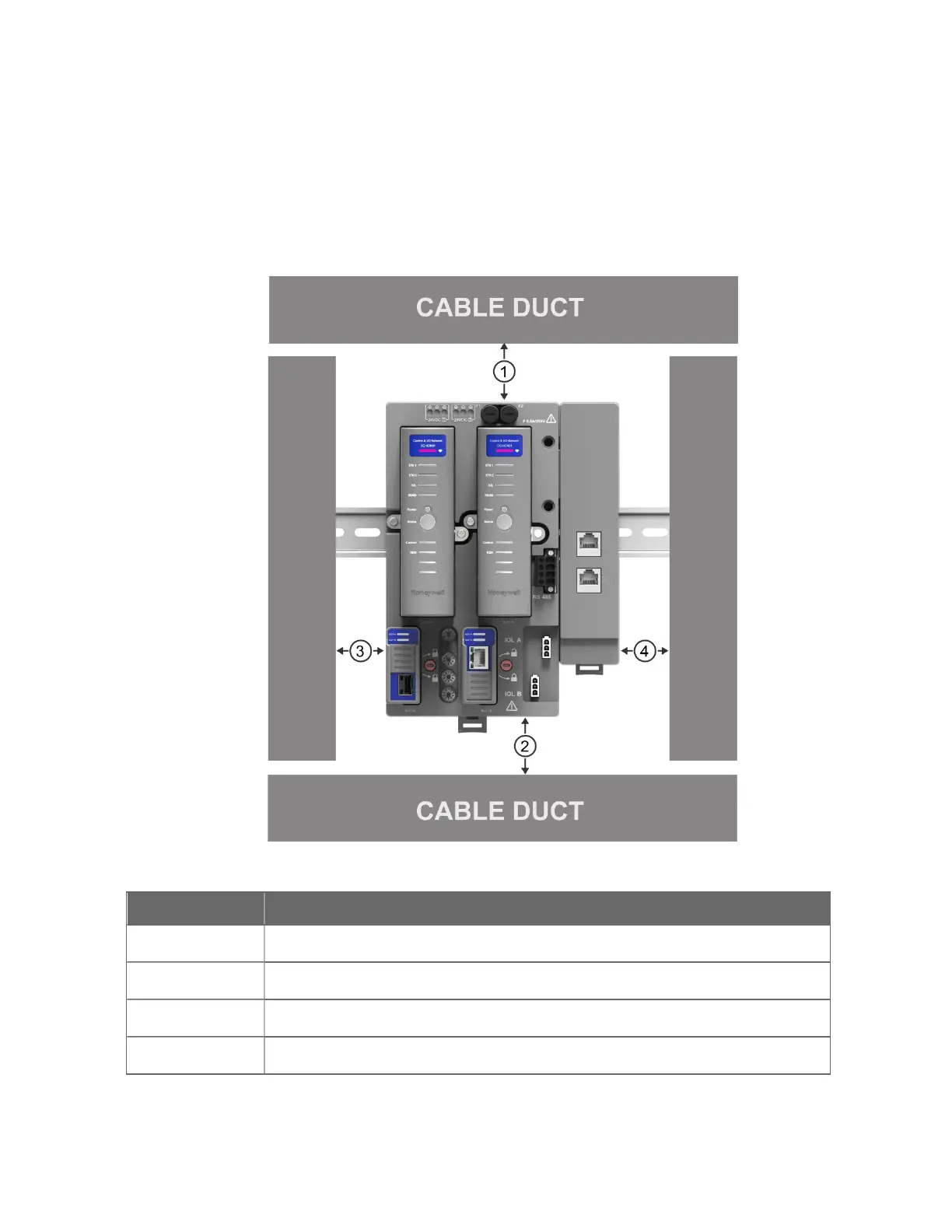

The following figure illustrates the layout when one redundant
controller is connected with one right end plate.
Figure 4-3: The Dimensions for a Redundant Controller
Item Dimension (mm [inch])
1 30 [1.2]
2 30 [1.2]
3 50 [2.0]
4 50 [2.0]
Table 4-4: The Layout Dimension
