Honeywell Code Encryptor II User Manual

16
DSC 1550 and Caddx 8980E
• DSC 1550 or Caddx 8980E panels work differently than other panels. When
either of the two alarm systems are armed they automatically arm in the STAY or
BYPASS mode until an entry/exit zone is tripped.
• Because of this panel set up, the Code Encryptor II has provisions to overcome this
problem.
If you are using one of these two panels follow the instructions below.
Step 1) Verify that the Code Encryptor II recognizes the alarm system as a Caddx
8980E or a DSC 1550 (see page 5)
Step 2) Use the Channel 3 relay wires to bypass the zone.
Every time the Code Encryptor II is armed in the Away mode, the relay will energize
for 1 full second to open or close the Entry/Exit zone. If the customer is already
outside the house when the panel is armed, the relay will trigger that zone
automatically to move the panel from BYPASS to Away mode.

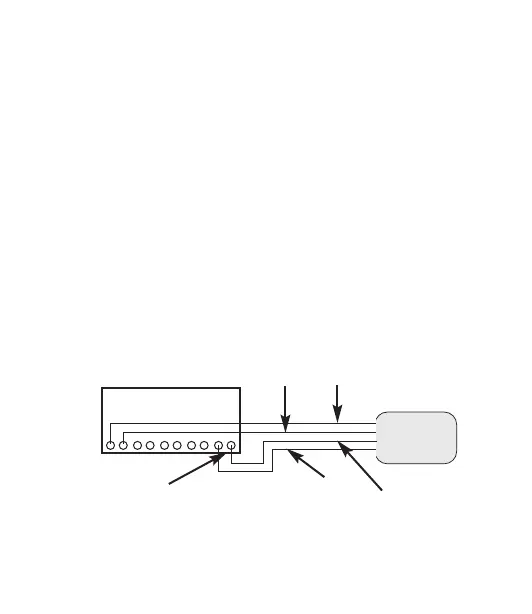

CODE
ENCRYPTOR
Alarm Panel
Black
Red
Brown/White
Brown
Zone programmed
as an entry/exit
Channel 3 wires offer N/O and N/C contacts.
Utilize the wires to open or close the zone based on your installation.

Honeywell Code Encryptor II Specifications

Power

receiver power input	12VDC
stand by power consumption	15ma

Operating Environment

temperature range	-5°F to 160°F
range	150+ feet
frequency	303Mhz

Remote Control

battery	12VDC Mini (Part #GP23A)
battery replacement frequency	once a year
