Installation
8 DC1010/1020/1030/1040 Product Manual 8/05
2.4 Mounting
2.4.1 Physical Considerations
The controller can be mounted on either a vertical or tilted panel using the mounting
bracket supplied. Adequate access space must be available at the back of the panel for
installation and servicing activities.
• Overall dimensions and panel cutout requirements for mounting the controller are
shown in Figure 2-1 through.Figure 2-4
2.4.2 Overall Dimensions

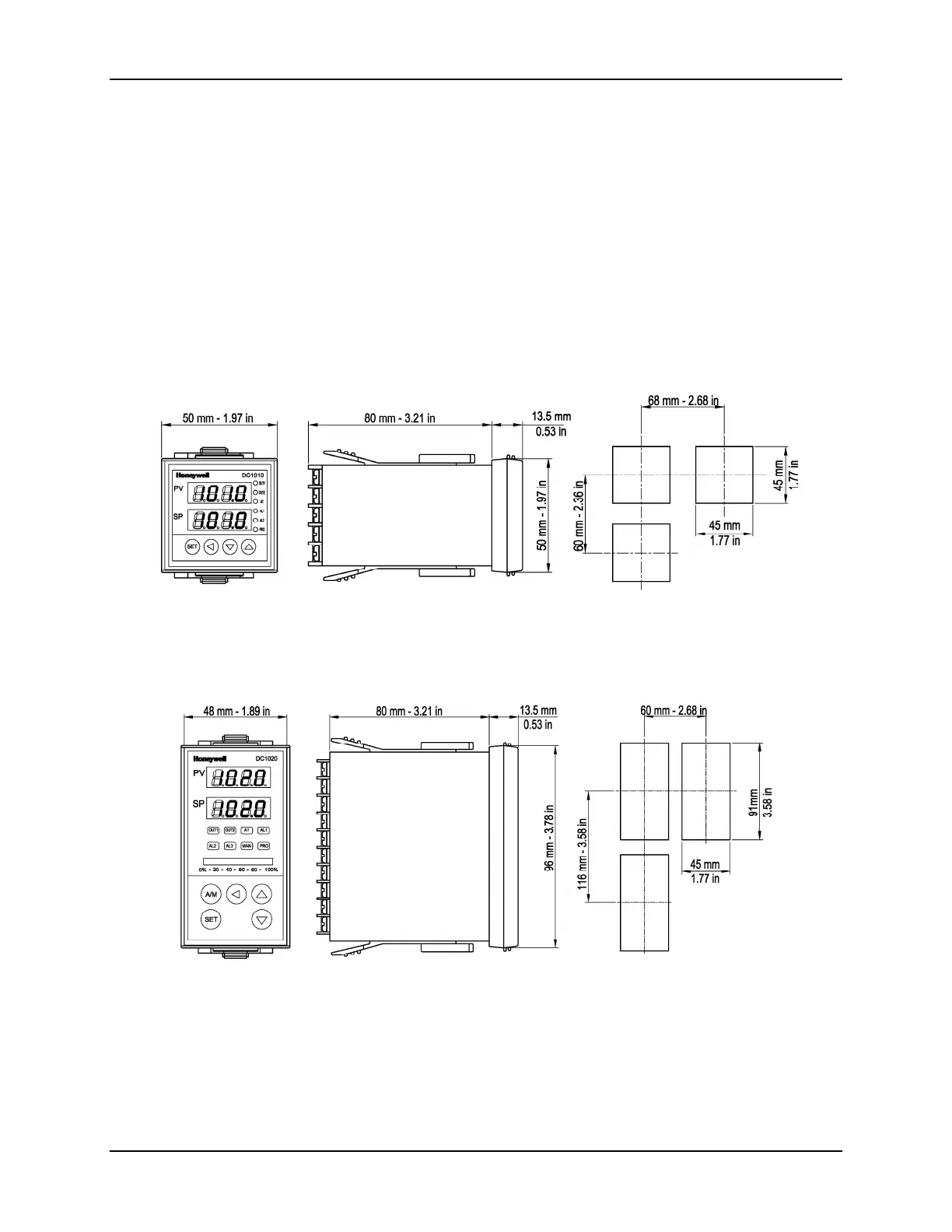

Figure 2-1 Model DC1010 Dimensions
Figure 2-2 Model DC1020 Dimensions
