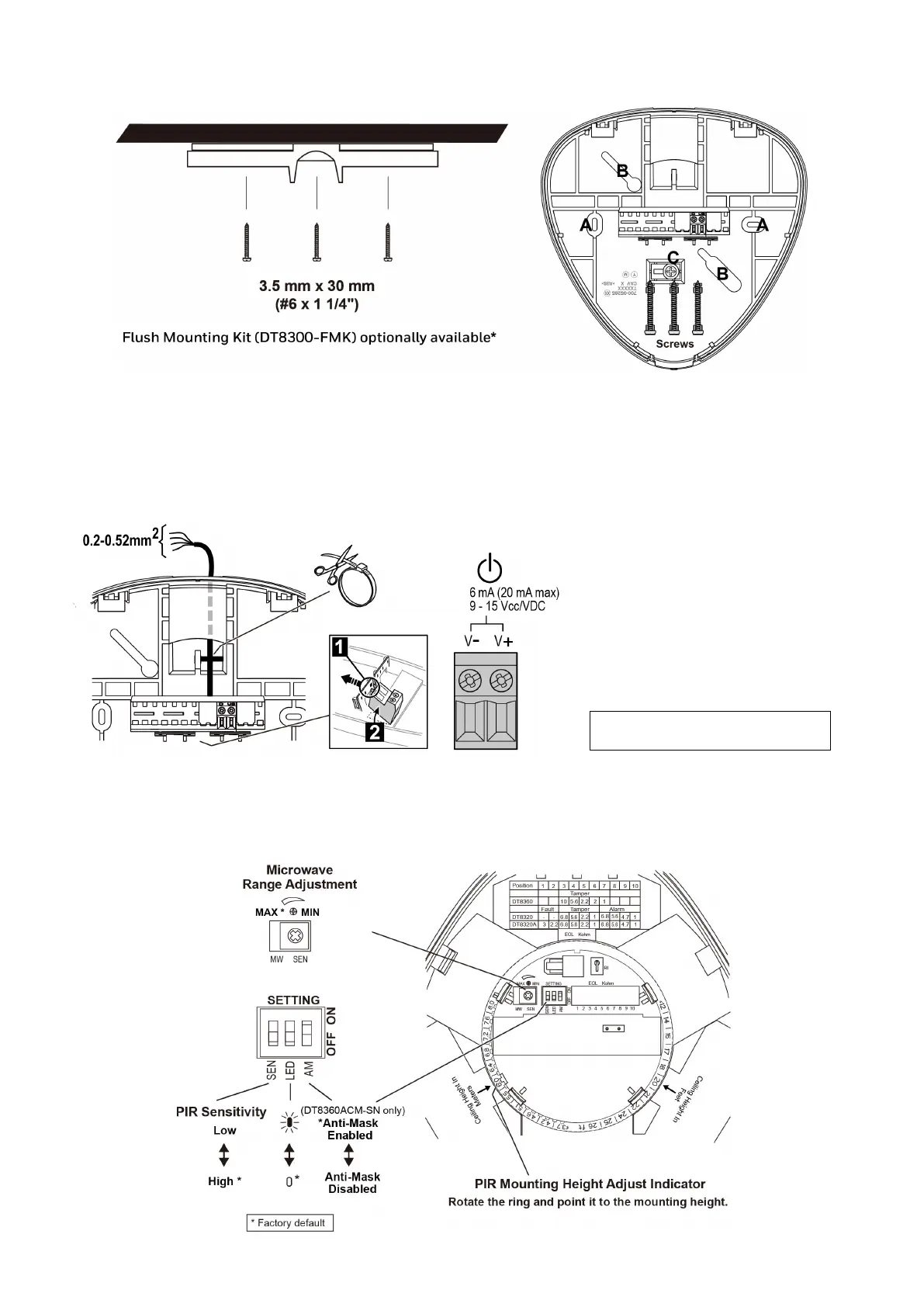

3. Mount the Sensor
[A] = Fixed mounting holes
[B] = Adjustable mounting slots from 61mm-85mm (2.4”-3.3”)
[C] = Tamper hole
*This accessory is not covered by the approval.
4. Wire the Sensor
Note: Observe proper polarity.
For new polling loop installations,
always use shielded twisted pair
wiring. In many cases, existing non-
twisted pair wiring may be used, but it
is more susceptible to interference
from other sources, and may be
problematic in installations with long
wire runs or in high noise
environments.
Shielded wiring must be used.
5. Sensor Components and Settings
