E-Mon® Series Global User Manual
Front Panel Display & Navigation
Page | 42
54-000-01-ENG01-0121

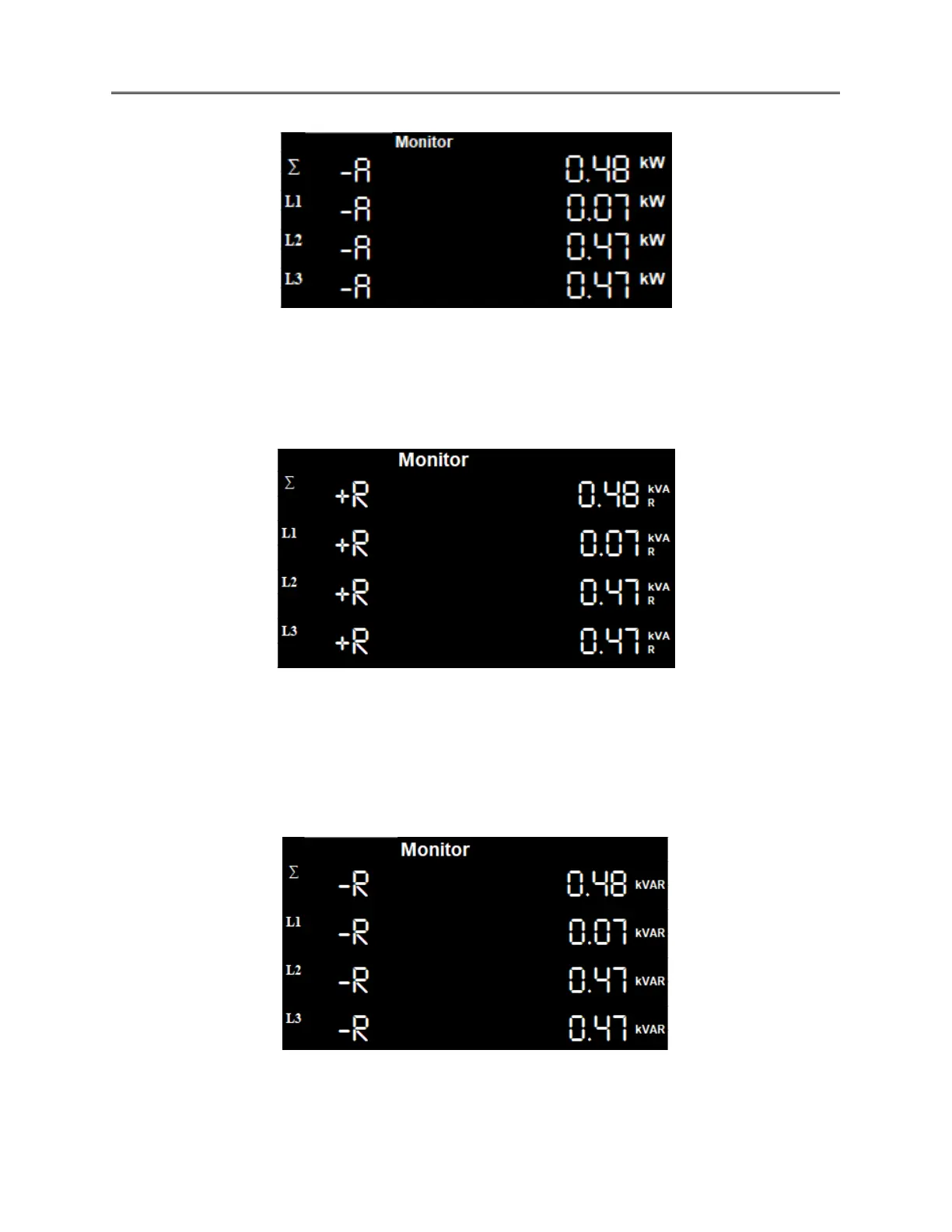

f. Instantaneous Reactive Import Power – Displays the instantaneous reactive power
imported in the network. Toggle through the instant menu option and press Down
arrow button to check the instantaneous reactive import power (-A).
▪ Displays combined () instantaneous reactive import power and per phase (L1, L2, L3)
instantaneous reactive power (+R)
g. Instantaneous Reactive Export Power – Displays the instantaneous reactive power
exported by the network. Toggle through the instantaneous option in the monitoring
menu and use the down navigation button to check the values.
▪ Displays combined () instantaneous reactive export power and per phase (L1, L2, L3)
instantaneous reactive power (-R).
