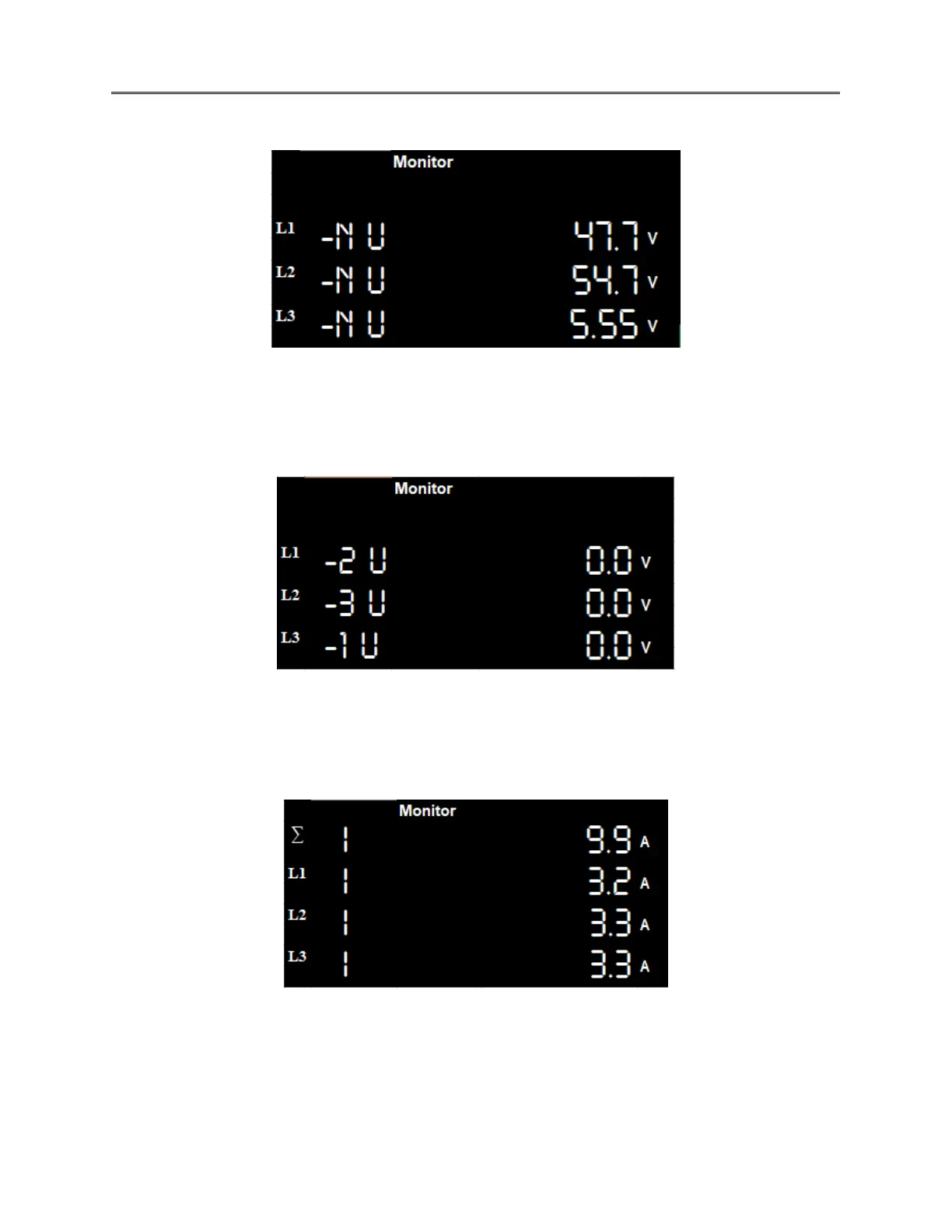

▪ Displays the Average line (L1, L2, L3) to neutral (-N) voltage for each phase.
b. Line to line voltage – Use the navigation method to enter ‘Monitor; menu items and
use up/down buttons to check values. Long press SET button to go back to the main
menu option.
▪ Displays the average line to Line (L1-L2, L2-L3, L3-L1) voltage for each phase.
c. Current –Toggle to the current option in average menu by using up/down arrow
buttons to check the values.
▪ Displays cumulative () average current (I) and per phase (L1, L2, L3) Minimum
current.
d. Active power (|+A|+|-A|) average for the power system. Toggle to the ‘Average’ option in
the monitoring menu and press SET to check the values.
▪ Provides the cumulative () average total power reading (|+A|+|-A|).
