Honeywell EBI XLS MASS NOTIFICATION SYSTEM - Inputs; Monitor Module and Initiating Device

HONEYWELL EMERGENCY NOTIFICATION MANAGER
39-00008-1
10

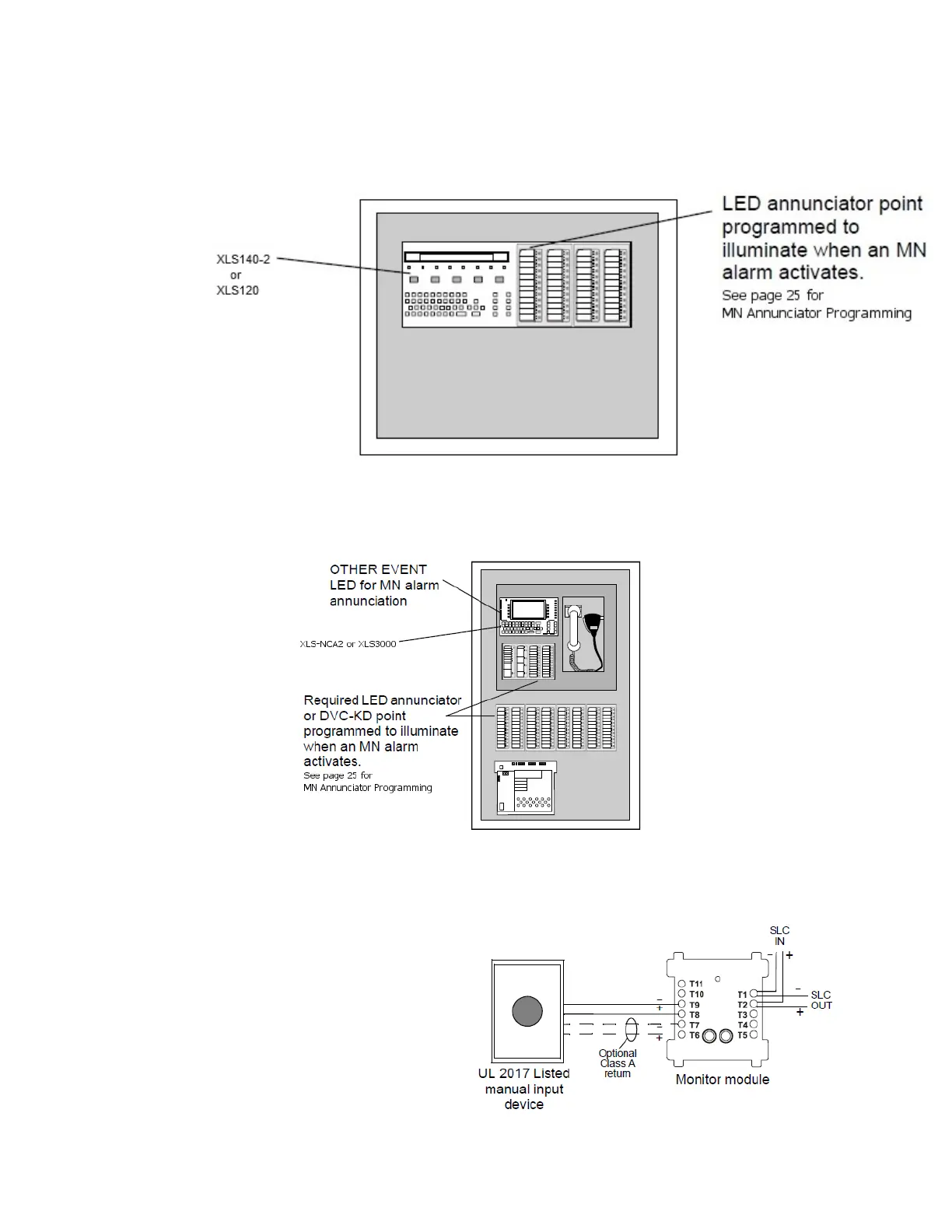

Fig. 6. XLS140-2 or XLS120 MN Alarm Annunciation
Fig. 7. XLS-NCA2 or XLS3000 MN Alarm Annunciation
Inputs
Monitor Module and Initiating Device
A TC809A Monitor Module, TC809B Mini Monitor Module,
TC809D Dual Monitor Module, or XP10-M Monitor Module
can be installed to monitor a UL approved switch or button
device installed for initiating MN alarms. A Listed UL2017
initiating switch/device is required. It will generate an MN
alarm, MN supervisory, or MN trouble message when it is
programmed with an MN/EC type code.
Fig. 8. Monitor Module and Input Device
