HONEYWELL EMERGENCY NOTIFICATION MANAGER
Label: It can be labeled in VeriFire Tools programming to identify it as the source of an MN page, which generates an MN alarm
condition.

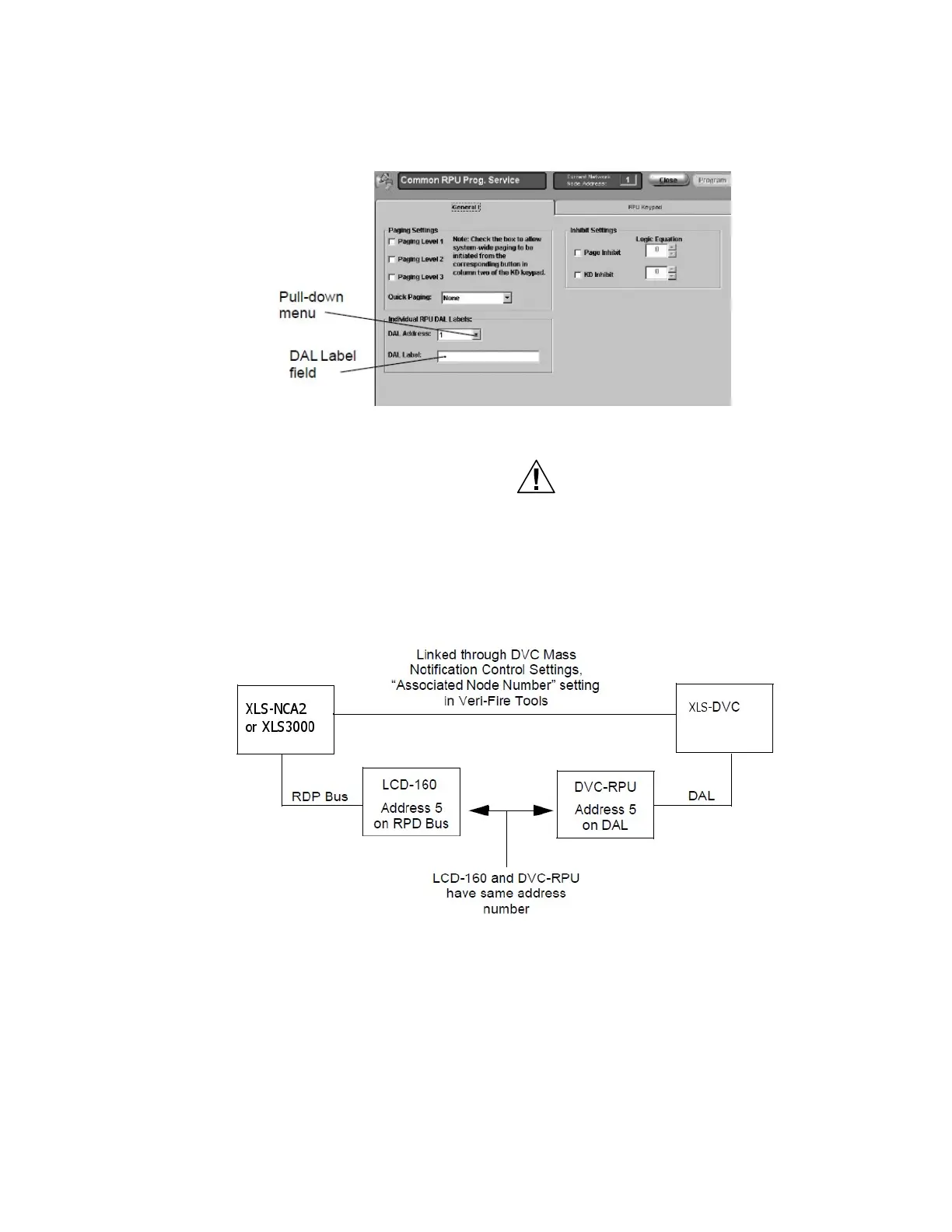

Fig. 34. DVC-RPU Labeling - VeriFire Tools
Select the DVC-RPU's DAL address from the pull-down menu. Type a free-form label description in the DAL label field.
LCD-160
To act as an LOC, the DVC-RPU requires an LCD-160, wired
to the XLS-DVC's XLS-NCA2, or XLS3000 (in network display
mode). The LCD-160's RDP bus address must be the same
address as the DVC-RPU's DAL address. For example, if the
DVC-RPU is address 5 on the DAL (Digital Audio Loop), the
LCD-160 must be address 5.
CAUTION
ADDRESSING IS CRITICAL TO COMMAND
OPERATIONS. THE DVC-RPU ADDRESS ON THE
DIGITAL AUDIO LOOP MUST EQUAL THE LCD-160
ADDRESS ON THE RDP BUS.
Fig. 35. Block Diagram Illustrating Address Link
MN Annunciator Programming
DEDICATED MN ALARM ANNUNCIATOR
A DVC-KD LED annunciator, programmed as a dedicated MN
alarm annunciator, is required for each XLS120,
XLS140-2, XLS3000 and XLS-NCA2 on an MN network.
• XLS3000 and XLS-NCA2
A dedicated annunciator may be programmed to light when a
ZF20 MN Special Function Zone activates, indicating an MN
alarm.
— Programming special function zone ZF20 in an LED
annunciator map will cause the annunciator to light
when a local MN alarm is activated.
— To annunciate an MN alarm for a specific network
node, map an annunciator point to that specific net-
work node and ZF20 (e.g. N3ZF20).
