Honeywell EBI XLS MASS NOTIFICATION SYSTEM User Manual

HONEYWELL EMERGENCY NOTIFICATION MANAGER
39-00008-1
8

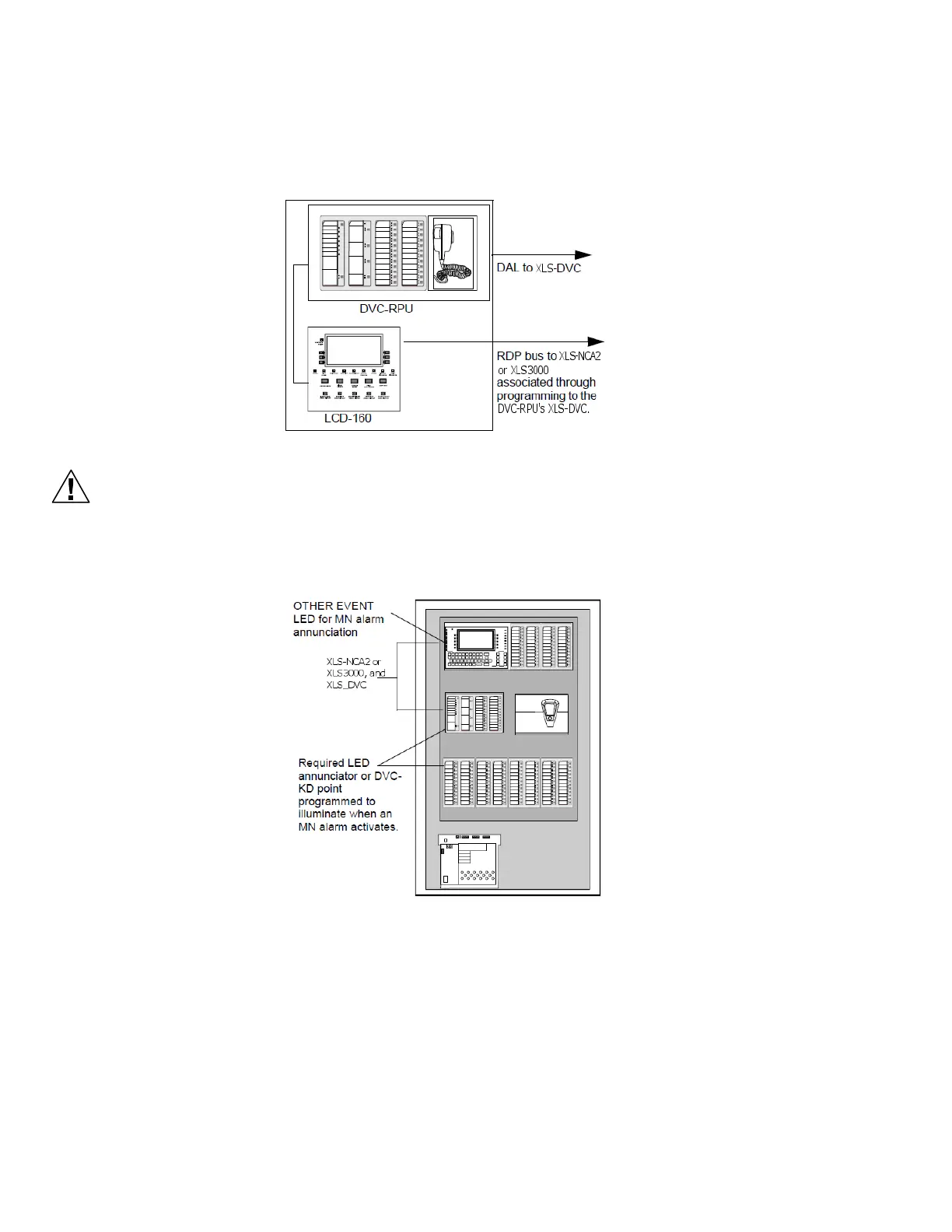

Fig. 3. LOC Configuration 1
CAUTION
Addressing is critical to command operations. The DVC-RPU address on the digital audio loop must equal the
LCD-160 address on the RDP bus.
Fig. 4. LOC Configuration 2
Refer to "PROGRAMMING” on page 11.
Central Control Station (CCS)
Description
A Central Control Station (CCS) is a system component with
emergency communication and control that is used in
conjunction with one or more ACUs in a mass notification
system. The priority of a CCS will be lower than that of an
ACU or LOC in the MN/fire system.
EBI WORKSTATION
The EBI workstation displays events and status of the MN and
fire systems from any ACU located on an XLS-NET. It
provides two paging levels - Level 1 and Level 2 - which may
be assigned to MN or fire for prioritization based on site-
specific requirements. A page at the MN level will create a
latching MN alarm condition that requires acknowledgment
and reset. The workstation supports All Call paging when
priority allows. An MN page from a CCS can be an ALL CALL
page or a group page where a group consists of one or more
