Enhanced Micro TDC 3000 User’s Manual 5-22 9/95
5.4.2

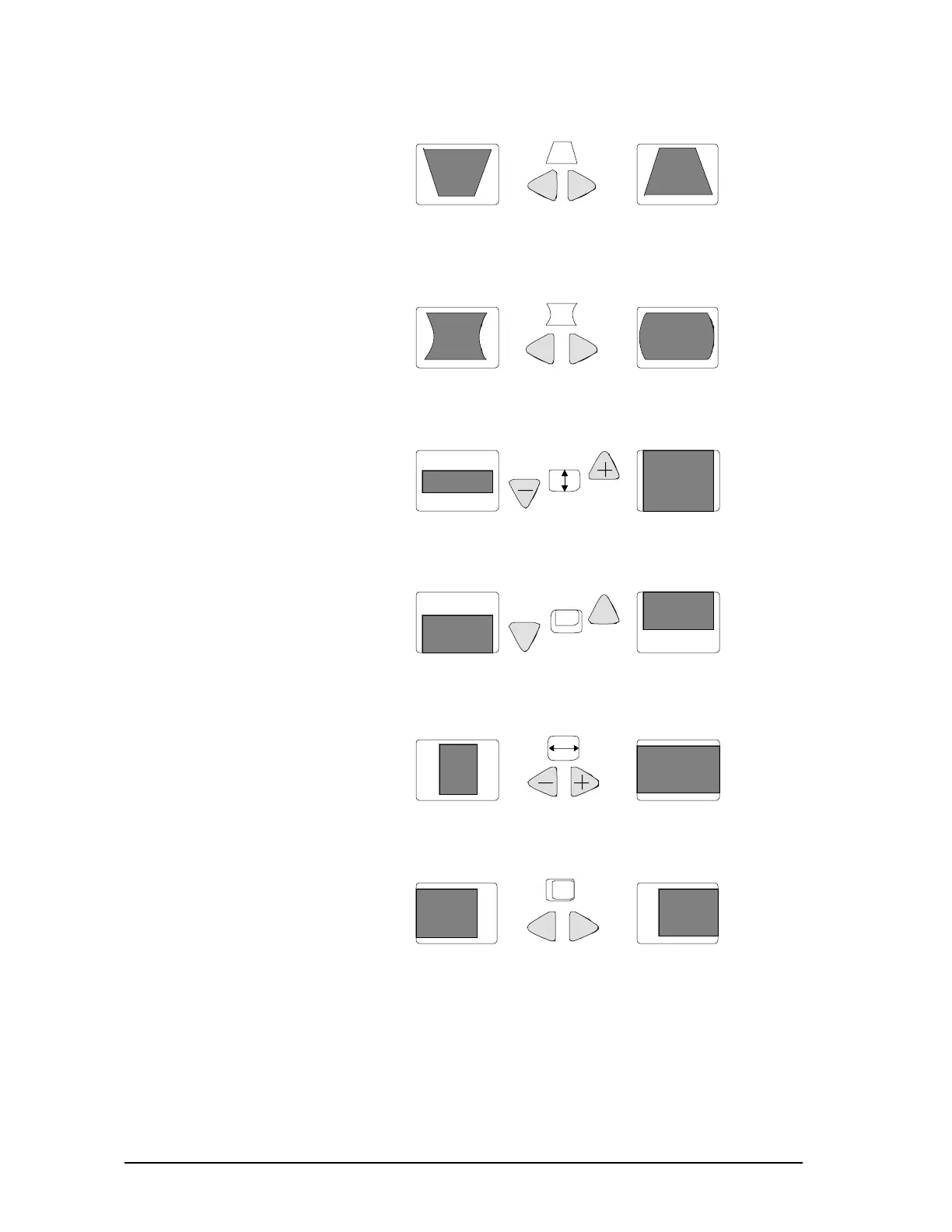

14. TRAPEZOID CONTROL BUTTONS
- Press to correct trapezoid distortion and to produce parallel vertical edges.
52543
15. PCC CONTROL BUTTONS
- Press to correct pincushion or barrel distortion and to produce straight vertical
edges.
52544
16. V-SIZE CONTROL BUTTONS
- Press to adjust the vertical size of the picture.
52545
17. V-POSITION CONTROL BUTTONS
- Press to adjust the vertical position of the picture.
52546
18. H-SIZE CONTROL BUTTONS
- Press to adjust the horizontal size of the picture.
52547
19. H-POSITION CONTROL BUTTONS
- Press to adjust the horizontal position of the picture.
52548
