Enhanced Micro TDC 3000 User’s Manual 5-35 9/95
5.4.3
• MOIRE indicator (MODE 1) (Only available for HM-4820-D)
BLUE indicator (MODE 2)
- The MOIRE indicator lights up, when you select MOIRE in MODE 1.
- The MOIRE indicator lights up, when you select BLUE in MODE 2.

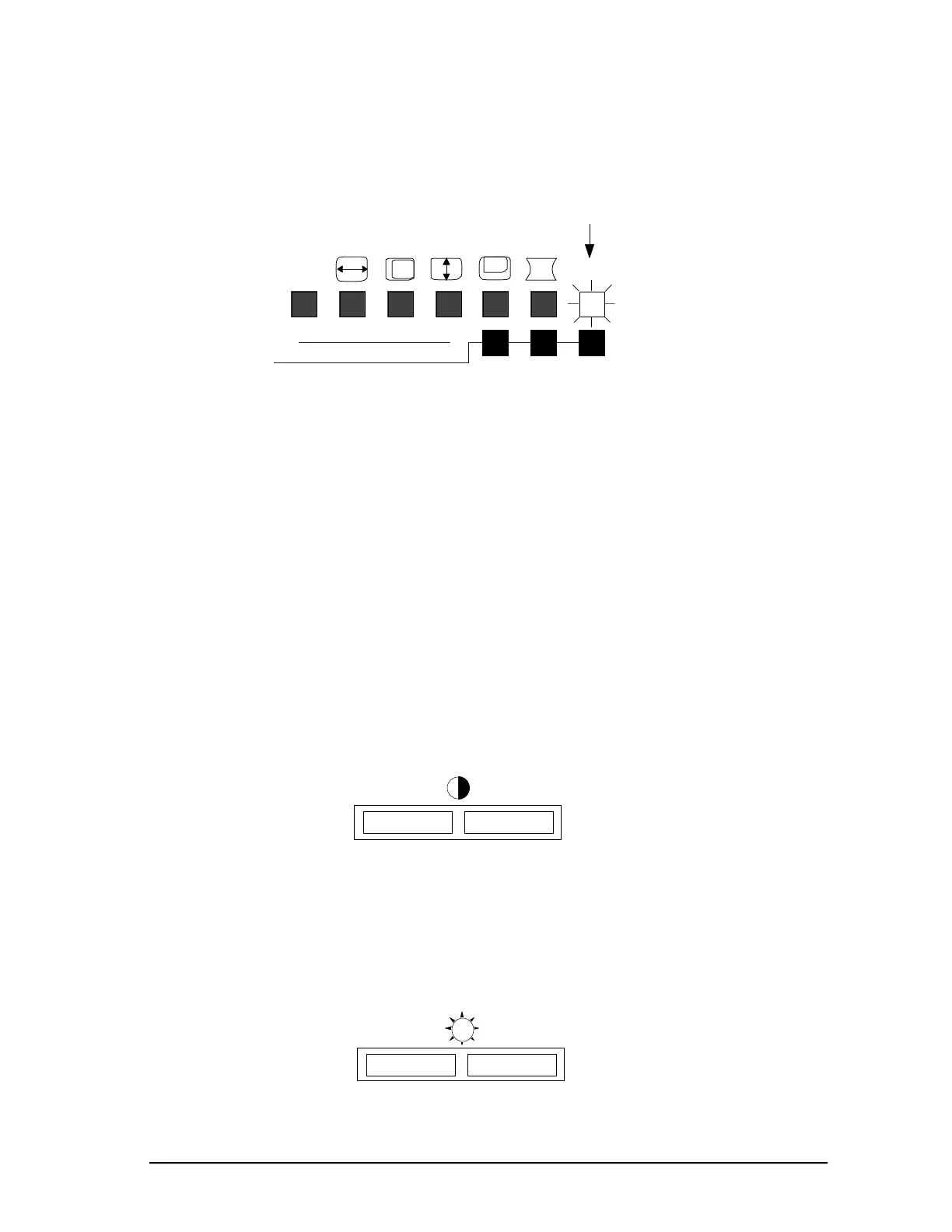

53939
RGB12 3
COLOR
MOIRE (BLUE) indicator lights up
RGB12 3
COLOR
MOIRE
5.4.3.3 Display Setting
You can adjust the following settings by using the screen control buttons on the front panel:
(1) Contrast (8) Rotation (Only available for HM-4821-D)
(2) Brightness (9) Moire: HM-4821-D…Option
(3) Horizontal Width HM-4820-D…Standard
(4) Horizontal Centering (10) Color Temperature selection
(5) Vertical Height (11) RGB Color Balance
(6) Vertical Centering
(7) SPC (Side Pincushion)
(1) Contrast
The contrast control adjusts the contrast of the screen image.
- Press the “+” button, the screen increases the contrast between light and dark.
- Press the “–” button, the screen decreases the contrast between light and dark.
When you press “+” button and “–” button at the same time, Contrast value
becomes maximum.
53944
–+
(2) Brightness
The brightness control adjusts the brightness of the screen.
- Press the “+” button, the screen increases brightness.
- Press the “–” button, the screen decreases brightness.
When you press “+” button and “–” button at the same time, Brightness value
becomes maximum.
–+
53945
