Fire Alarm Control Panel IQ8Control C / M
FB 798951.10.GB0 / 04.15 25
4 x
XX mm
Drill through the marks for the mounting holes to
create four holes and insert suitable anchors.
The type of anchor best suited to this purposes
depends on the mounting surface's material
(cavity wall, concrete, wood etc.) and must be
chosen accordingly.
The surface/wall and mounting material's load
bearing capacity must be adequate for bearing
the entire weight of the selected expansion model
(incl. batteries).
Please take note of the cable entry points before
fitting the housing!
Hold the housing against the mounting surface
and align.
Screw four screws into the screw anchors and
hand tighten.

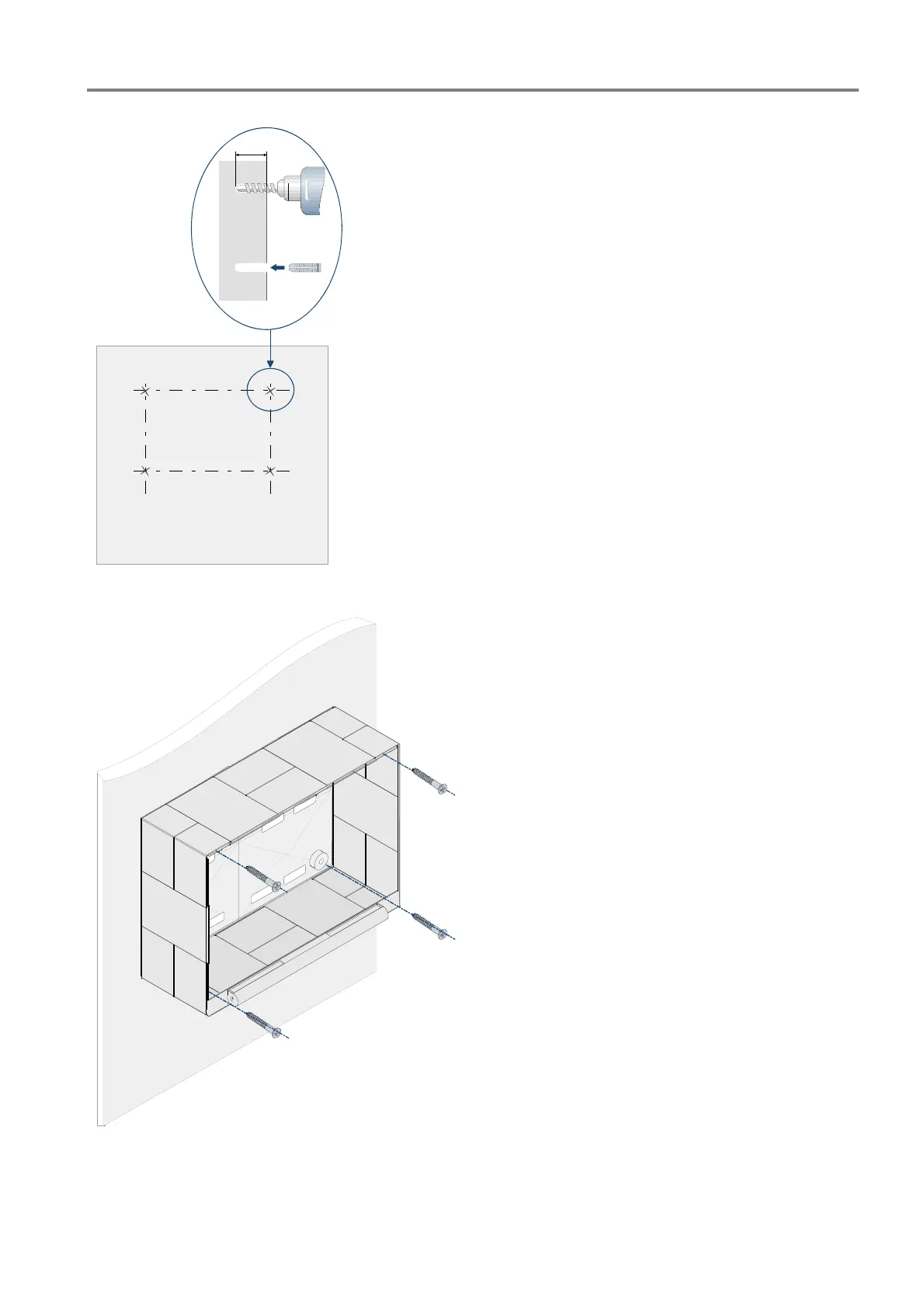

Fig. 16: Fitting the panel to the mounting surface
