The panel must be mounted on a flat surface using appropriate hardware (screws and dowels). Avoid mechanical
stressing. It may only be commissioned after correct mounting on a wall or other mounting surface of sufficient
strength to support the weight of the unit. Minor unevenness of the mounting surface may be adjusted by the wall
compensation device. Apply the delivered key tool from the inside of the housing to adjust the wall compensation
devices.
1

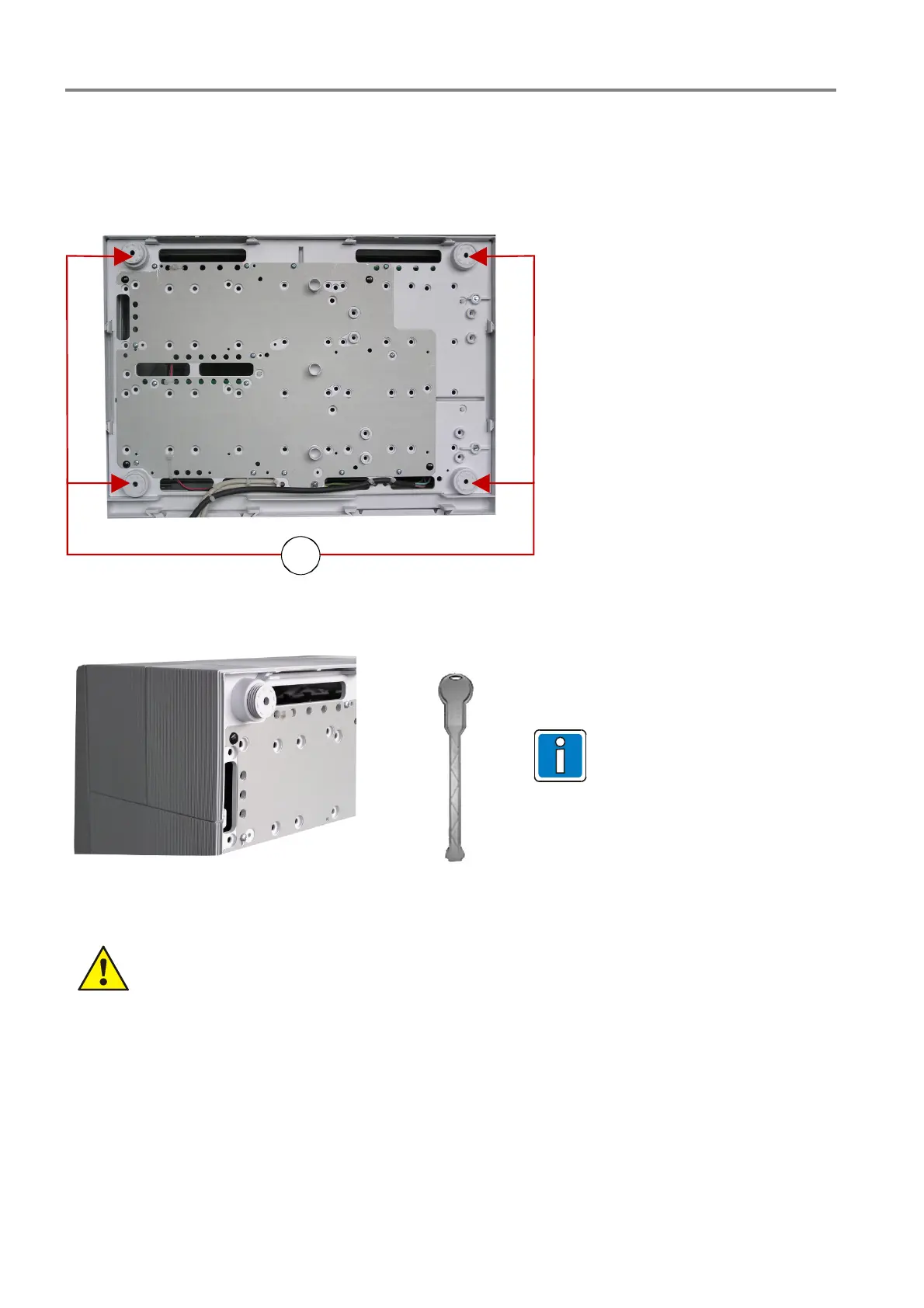

Fig. 17: Rear side of the Standard back box
Plastic key included.
Fig. 18: Wall compensation element for adjusting and key tool
Damage to the system !
Please note that depending on the rechargeable batteries used, a significant weight must be
supported by the fastening screws of the extension housing.
