FS20X Fire and Flame Detectors
Alarm Condition
When an alarm condition occurs, the red LED shown in Figure 28 will turn on. The
factory setting for the auxiliary relay is 5 seconds.

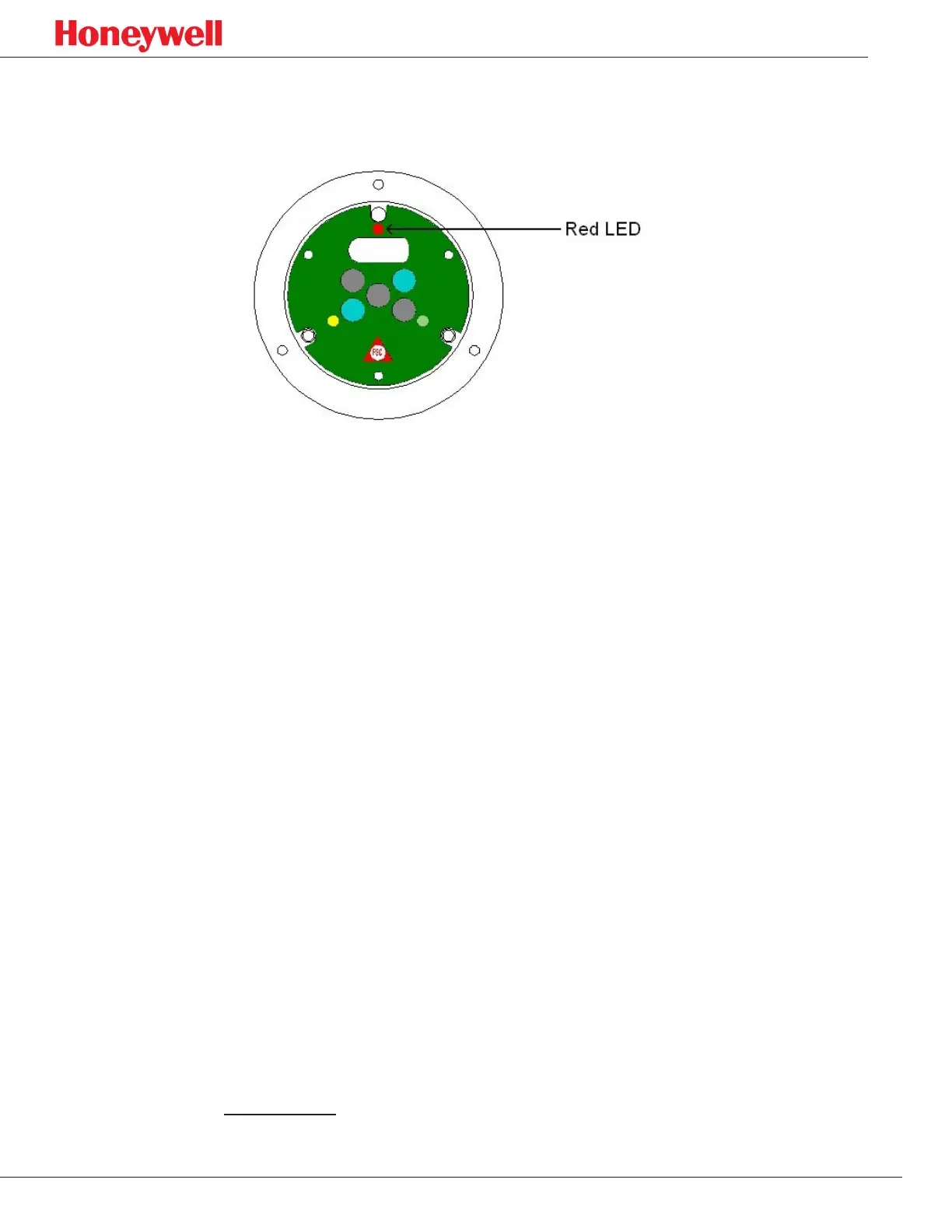

Figure 28. Red LED location
Alarm condition outputs
● Alarm Relay activation
● Auxiliary Relay activation
2
only one active alarm output from this group:
● 4-20 mA (sink 16 mA) Alarm Output
● 4-20 mA (source 16 mA) Alarm Output
● 4-20 mA (sink 20 mA) Auxiliary Output
● 4-20 mA (source 20 mA) Auxiliary Output
only one active alarm from this group:
● RS-485 FireBusII Alarm Notification
● RS-485 ModBus Alarm Notification
2 veried alarm output
