1.2.2 Optional Features
• Class A Module (CAOM) with Disconnect Switches for NACs and SLCs
• Digital Alarm Communicator (DACT) (Model 7100-D)
• RS-232 Printer Transient Module (PTRM), Supervised
• Municipal Circuit Option Module (MCOM)

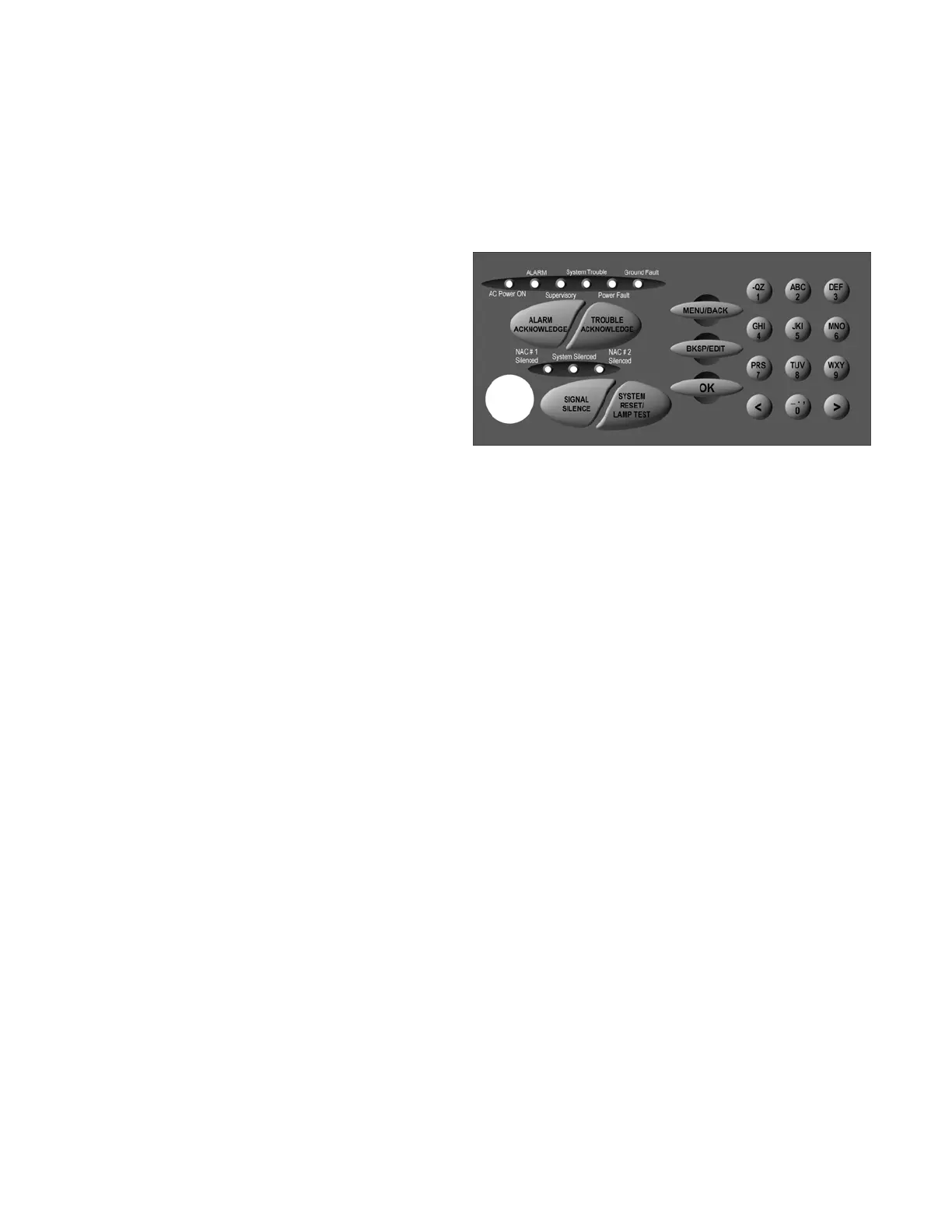

1.3 Control and Indicators
1.3.1 Switch Controls
• Alarm Acknowledge
• Trouble Acknowledge
• Signal Silence
• System Reset/Lamp test
• Programming buttons
- Menu/Back
- Back Space/Edit
- OK
• 12 button keypad
1.3.2 LED Indicators
• AC Power On
(green)
• Ground Fault
(yellow)
• Alarm
(red)
• NAC 1 Silenced
(yellow)
• Supervisory
(yellow)
• NAC 2 Silenced
(yellow)
• System Trouble
(yellow)
• System Silenced
(yellow)
• Power Fault
(yellow)
1.3.3 Audible Sounder
An Alarm/Trouble sounder is located on the Basic System Module (BSM).
1.4 Optional Modules
The following optional modules and features are available:
1.4.1 Digital Alarm Communicator (DACT)
The Model 7100-D provides an integral digital communicator (DACT), fully
programmable from the keypad, which is compatible with Digital Alarm Receivers
(DACRs) that can receive the following formats:
• SIA DC8
• SIA DCS20
• Ademco Contact ID
• 3+1 1400 Hz
• 3+1 2300 Hz
• 4+2 1400 Hz
• 4+2 2300 Hz
1.4.2 Class A Option Module (CAOM)
All 7100 Models are supplied with Class B Notification Appliance Circuits and
Class B Signaling Line Circuits. For Class A operation, the addition of a CAOM
Module is required. This module operates with all 7100 Models and enables the
signaling line circuits to operate as Class A, Style 6 or 7 and notification
appliance circuits to operate as Class A, Style Z. It supplies the additional
terminals for these circuits.
