Honeywell HCM 200D User Manual

Mounting
Technical Data
11

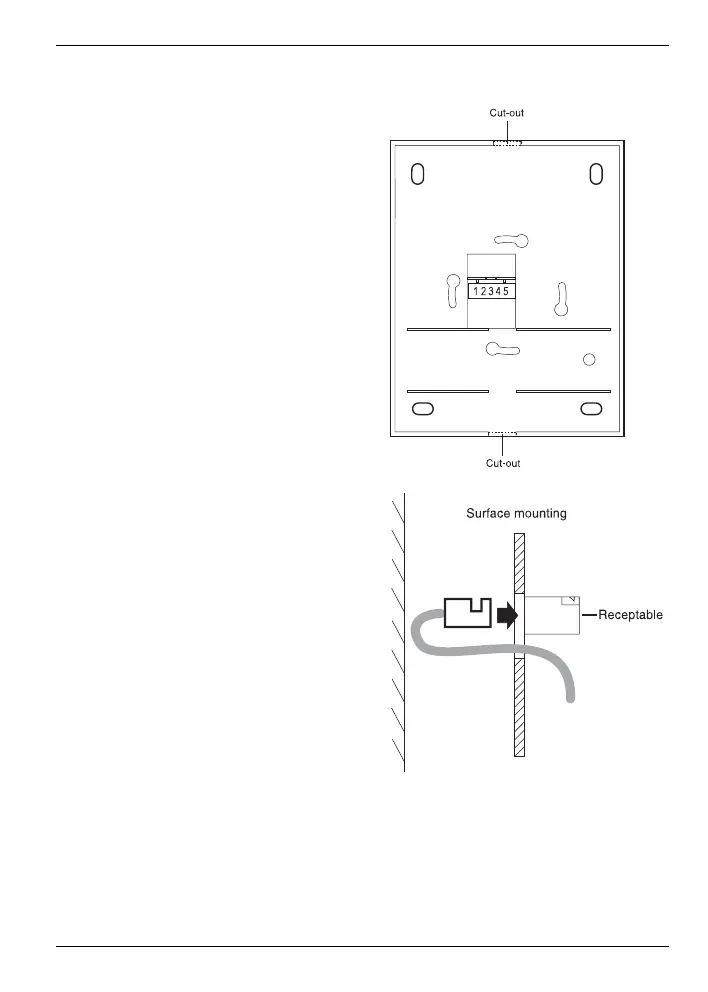

► Break the recess out of
the mounting panel at one
of the two points marked
in the adjacent drawing.
► Lay the cable under the
retainer basket of the
mounting panel.
► Hold the plug-in connec-
tion as shown in the adja-
cent figure (the numbers
1 to 5 stand on their
head).
► Latch the plug-in connec-
tion into the retainer bas-
ket.
► Place the mounting panel
on the screws and align it
vertically.
► Tighten the screws.

Honeywell HCM 200D Specifications

General

Brand	Honeywell
Model	HCM 200D
Category	Control Panel
Language	English
