Wall Module
The LCBS Connect wall module is a full color, touchscreen interface that is exclusively com-
patible with the LCBS Connect controller. The graphic-rich display allows for full configuration
of the LCBS controller using an intuitive, menu-driven method.
MCR36692
Menu
Home
Schedule and Holidays
System Status
Conguration
Contractor Information
Thermostat Name Menu
72°
72°
Cool Mode
Occupied
On
Date & time
Fan
Running Schedule
System
Thermostat
45%
Indoor Humidity

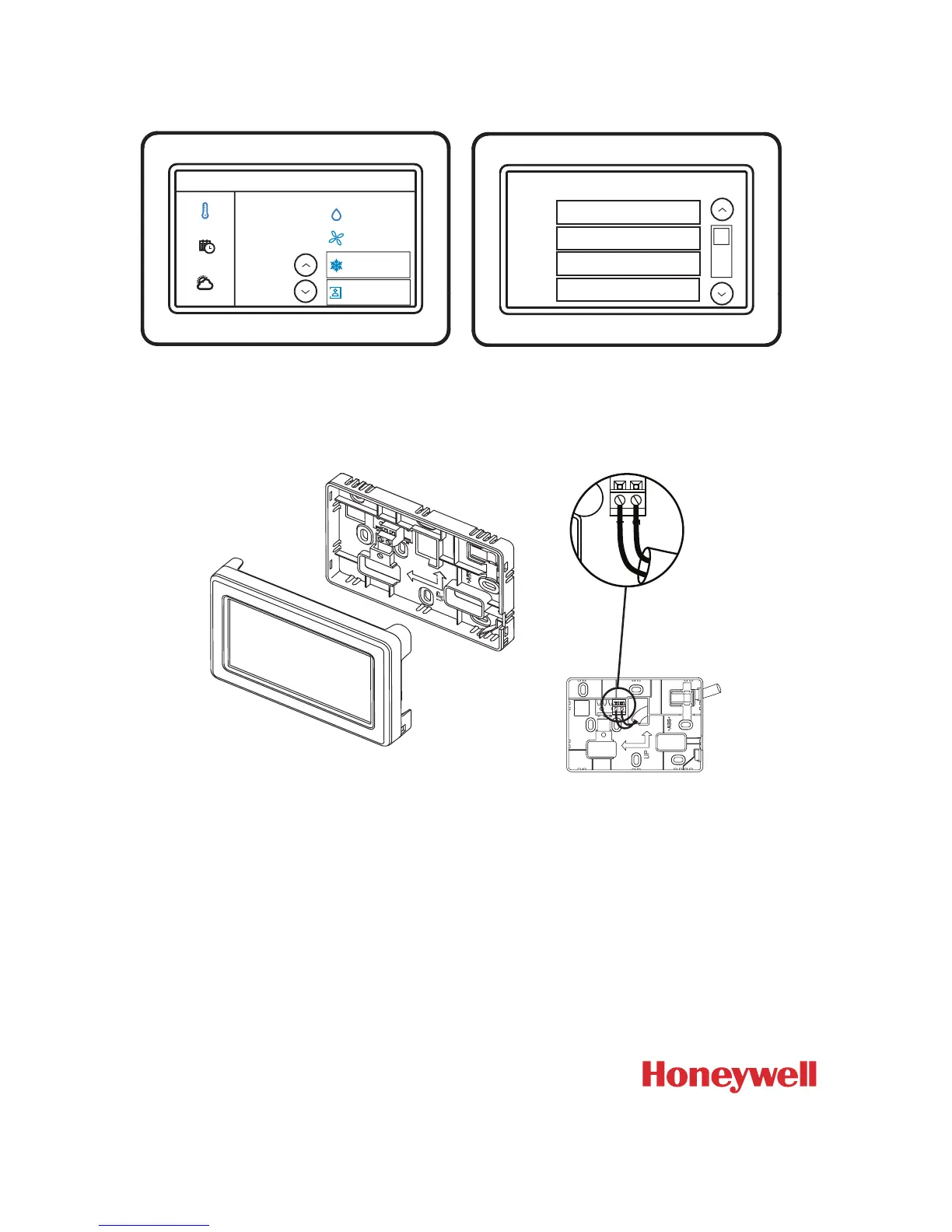

The wall module gets both its power and communication from the LCBS controller through
the Sylk bus. In order to correctly wire the wall module, the front cover needs to be removed
to expose the two terminal pins. After replacing an existing thermostat with the new LCBS
wall module, consider using the wall plate, 50028399001, to cover up any previously used
mounting holes.
WARNING! Directly applying 24Vac to the wall module may cause damage to the device.
Reference Documents
• LCBS Connect Wall Module Installation Instructions (3100084)
• LCBS Connect Gateway Installation Instructions (3100081)
• LCBS Connect Application Manual (3100118)
