RAM Bracket Mounting
RAM Bracket Assembly mounting holes are on the back of the cradle. The mounting screws fit in Pim nuts and are automat-
ically secured.
The number of RAM balls attached to the back of the vehicle mount cradle are dependent upon the desired RAM mount
configuration.
The figure shown below is an example
only.
RAM ball mounting screws are included in the mounting kit. Contact Technical Assistance (page 16-1) for the MX9 RAM
Mount Kit for the vehicle cradle.

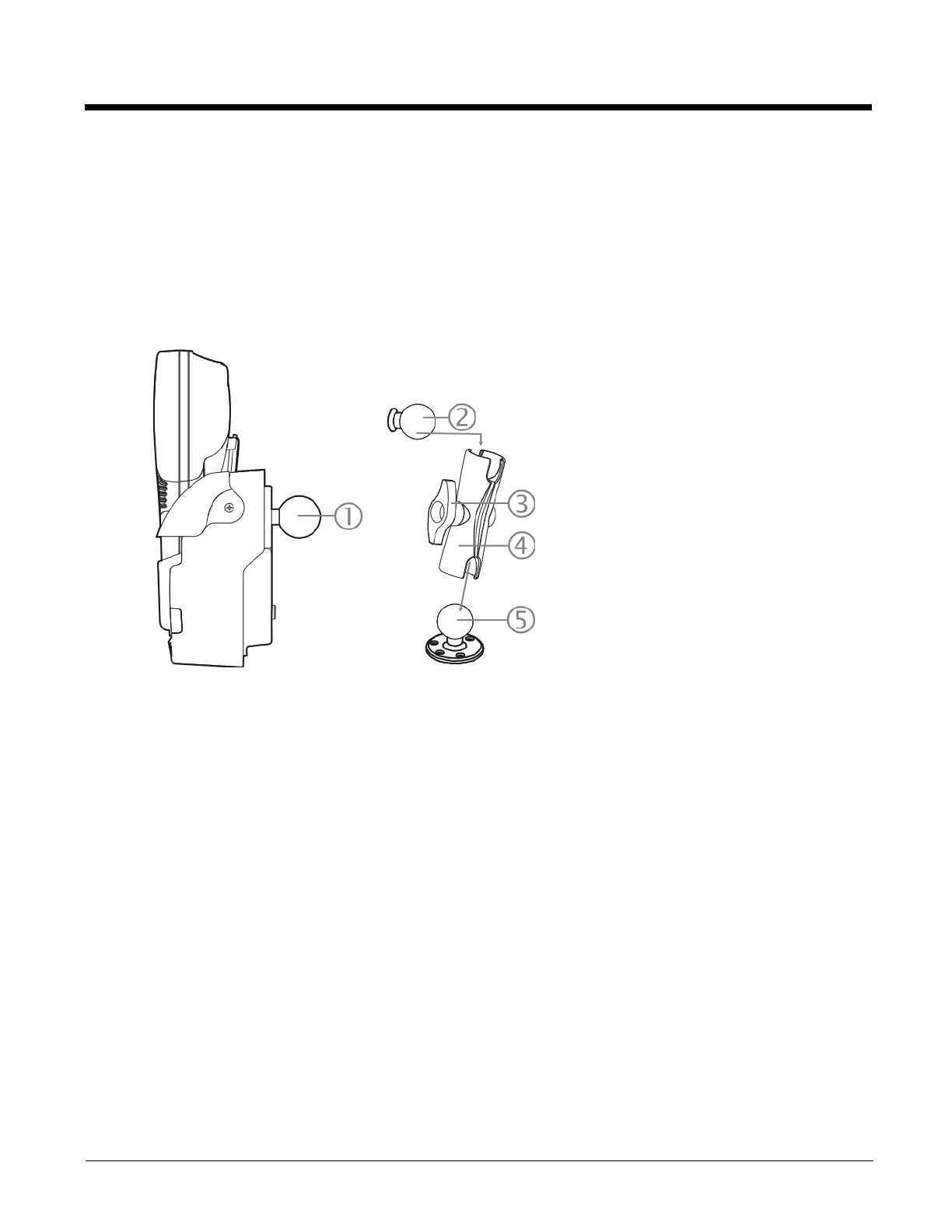

RAM Bracket Mounting Points
1. RAM ball mounted on the back of the vehi-
cle cradle
2. Connecting the vehicle cradle to the
assembled RAM Mount Kit
3. Adjusting knob
4. RAM arm
5. RAM ball base mounted to the vehicle
