ACS Mode Configuration Programming

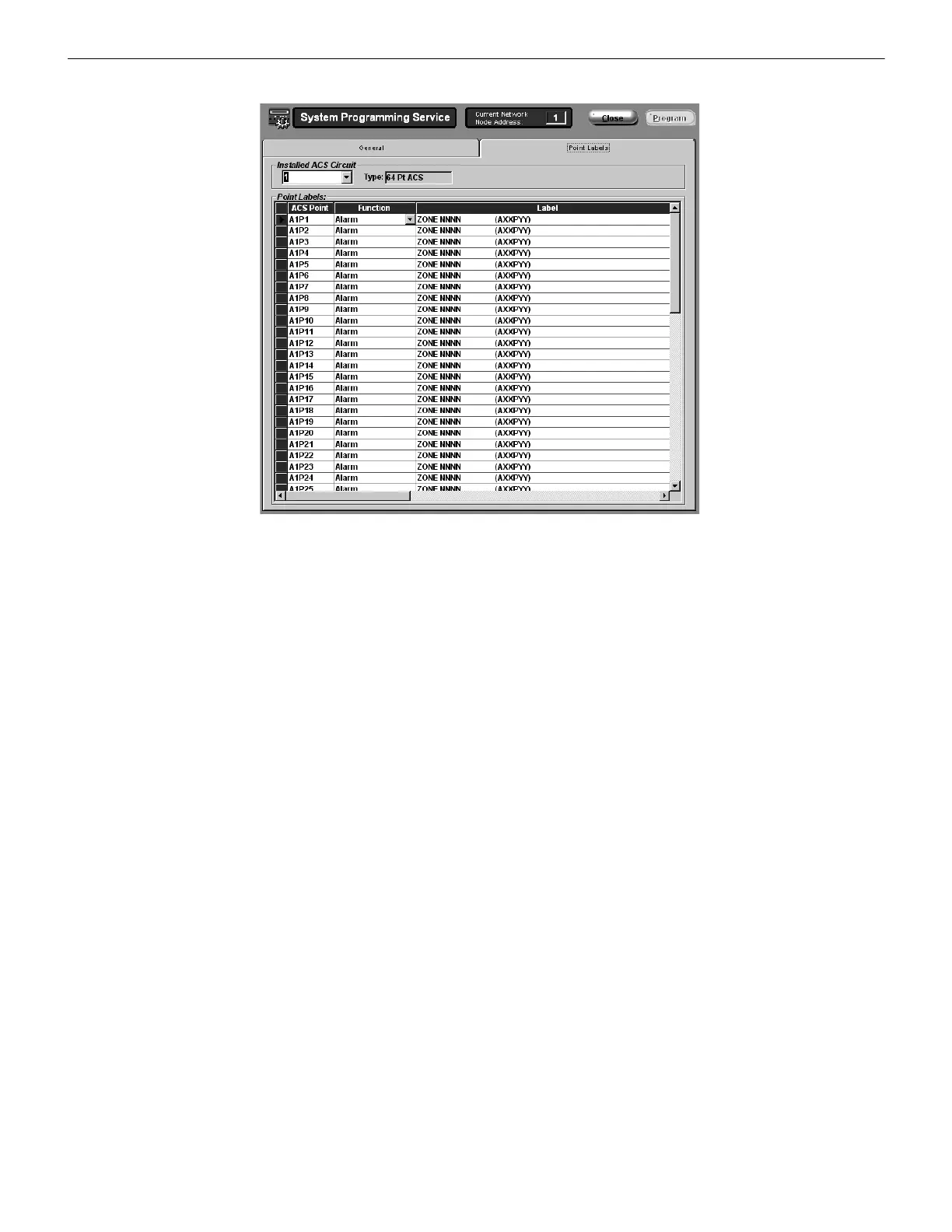

3.3.2 Point Labels Tab
Installed ACS Circuit
The drop-down menu contains a list of all the ACS circuits programmed into the host panel. Select the desired circuit for programming.
The type field and point grid will populate with the appropriate information.
Function: Default is Alarm. Select pull-down menu to change to another function. Function selections: Alarm, Supervisory, Security,
Non-Fire, and Telephone.
Label: Default is to ZONE NNNN (AXXPYY), which may be deleted and changed to user-composed text. If SYS has been chosen as
the Starting ACS Circuit Type, the first 8 points will not be programmable.
Select the Program button at the top of the screen to write the above settings to the LCD2-80 database.
