INSTALLATION

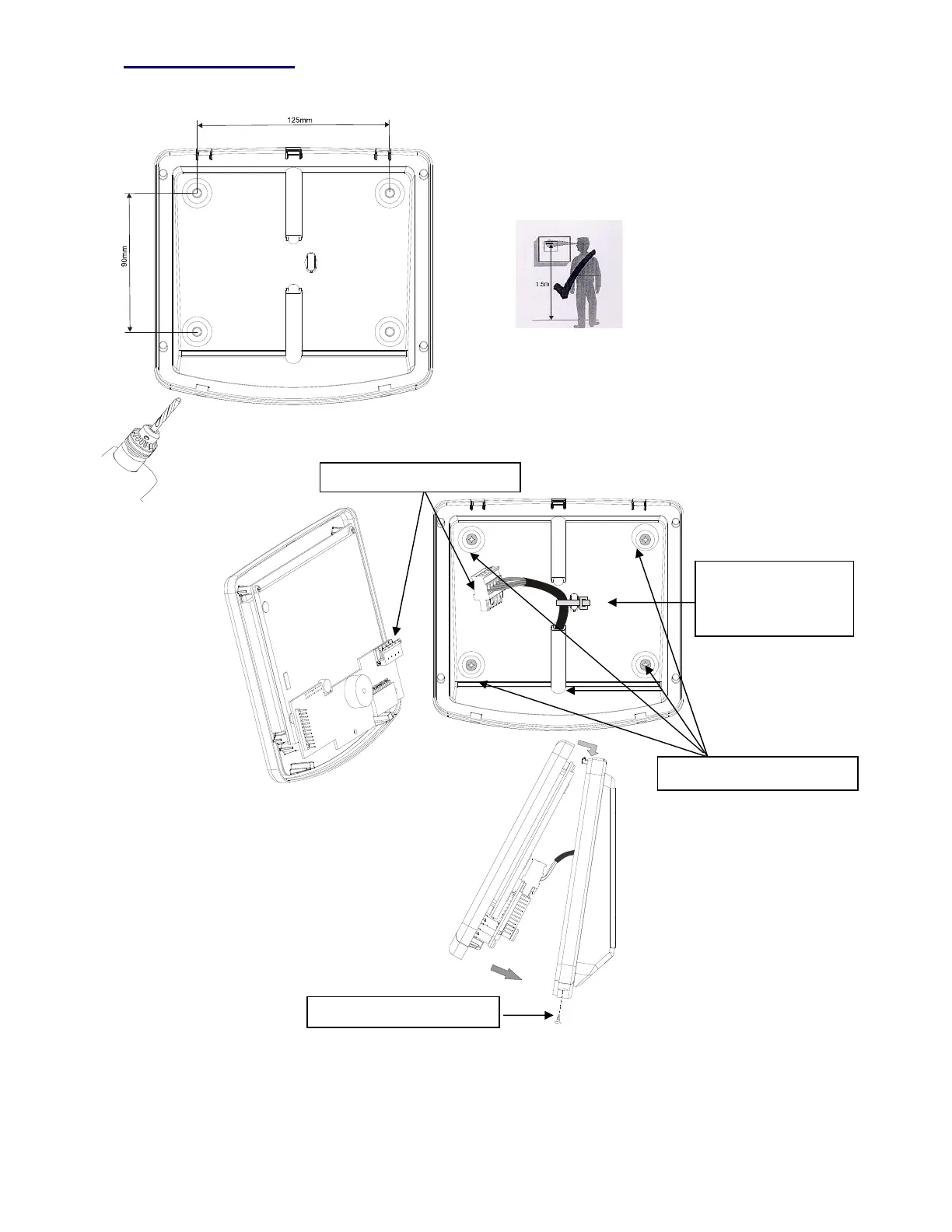

Dimensions for wall-mount
It is recommended to not install the LCD6000N control panel close to heat sources (radiators, heaters, etc..).
The panel is designed to be wall-
mounted through 4 self-blocking nogs
(stone walls) or self-tapping screws (pre-
built panels etc.)
Screws diameter must be 5mm max. We
advice not to install the panel near
heating sources (radiators etc.)
Fixing screws 5mm max.
Fix the incoming cable
with a tie.
Plug-in the cable into CN1
Front panel fixing screws
